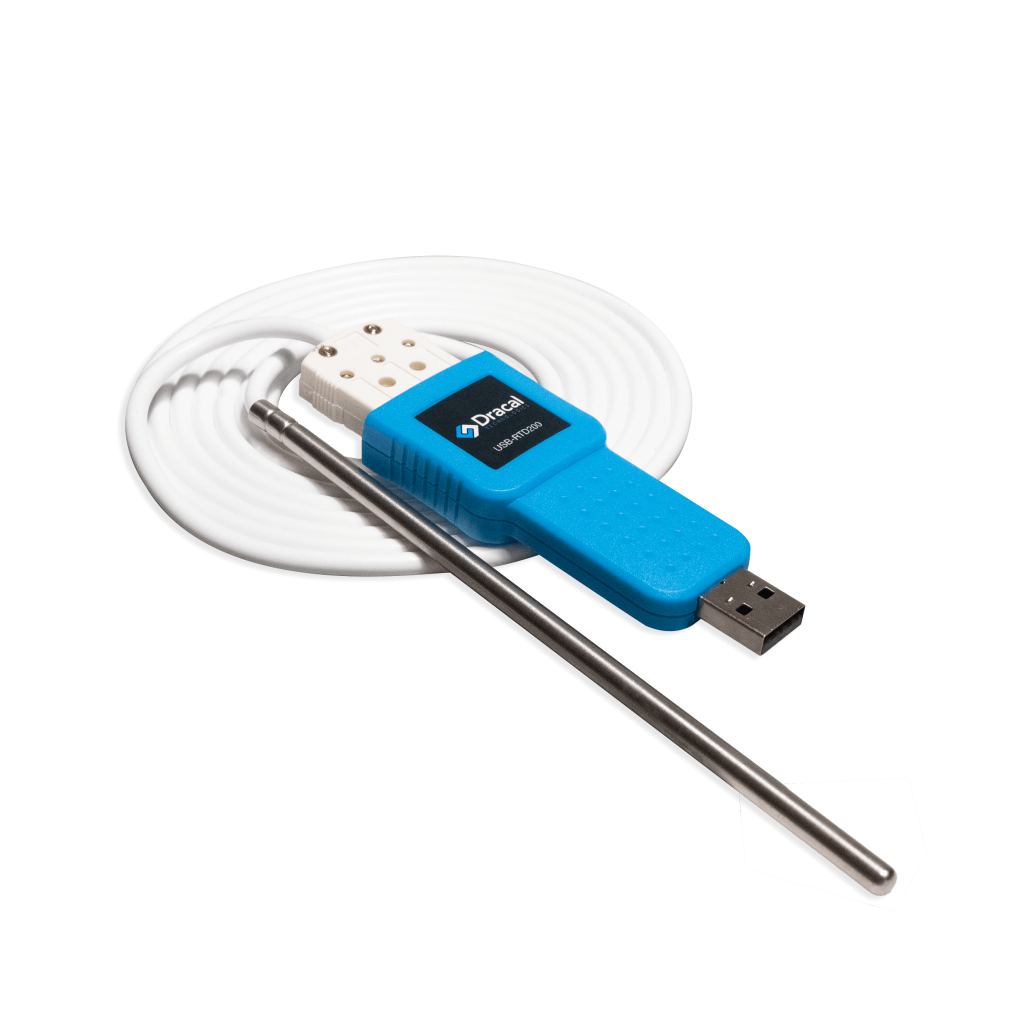

RTD200
2/3-wire RTD probe to USB adapter
Fast shipping worldwide!
Shipped within 3 business days
Volume discounts available for modular OEM integration projects. Please contact sales for more information.
Choose your model
Add a calibration certificate issued by a ISO17025 accredited laboratory (optional)
Do I need a certificate? Count between 10 and 15 additional business days.
Complete your ecosystem (optional)
What options do I need? Am I missing something?
Read our 5-step guide to placing an order without forgetting anything.
SPECIFICATIONS OVERVIEW
| Operating range: | -200 to +800°C | |
| Accuracy (at 25°C): | ±0.06°C or better | |
| Resolution (typical): | ±0.02°C | |
| Drift: | <1%/year |
- Supports 2 and 3-wire Pt100 RTD sensors
- Temperature calculation using the DIN 43760 coefficients
- RoHS3 and CE compliant
- 3 years warranty
PRODUCT OPTIONS
- 3-point user calibration mechanism (CAL option)
- COM communication (VCP option)
- Traceable to the CNRC (NIST) certificates
FREE DATA LOGGING AND MONITORING SOFTWARE
Learn more and download DracalView:
- Get up-and-running in less than 3 minutes
- Operates under Windows, Mac OS X and Linux
- Real-time on-screen graphing and logging
- Configurable log file format
- Log interval down to 0.5 second
- Configurable units (°C, °F, K…)
- Simultaneous use of unlimited Dracal sensors supported
- Simple user-calibration (products with the CAL option)
- Connectivity with SensGate Wi-Fi/Ethernet gateway
EASY TO INTEGRATE IN YOUR OWN APPLICATION
- One portal page to easily get started
- Easily switch between USB CLI and Wi-Fi/Ethernet CLI
- Code samples available for many programming languages
- Usable with LabView (Guide here)
All command-line tools (CLI) are packaged with DracalView
