TMC100
USB temperature converter for thermocouple type K, J, N, E or T
Fast shipping worldwide!
Shipped within 3 business days
Volume discounts available for modular OEM integration projects. Contact sales@dracal.com for more information.
Choose your model
Add a calibration certificate issued by a ISO17025 accredited laboratory (optional)
Do I need a certificate? Count between 10 and 15 additional business days.
Complete your ecosystem (optional)
What options do I need? Am I missing something?
Read our 5-step guide to placing an order without forgetting anything.
| Model | Operating Range (°C ) | Minimum Accuracy (°C) |
| TMC100k: | -200 to 1372 | ±0.5 |
| TMC100j: | -200 to 1200 | ±1.0 |
| TMC100t: | -200 to +400 | ±0.5 |
| TMC100n: | -200 to +1300 | ±0.5 |
| TMC100e: | -200 to +1000 | ±0.5 |
| Resolution: | 0.0625°C | |
| Error status code: | No |
- Supports type-K/J/T/N/E thermocouples (2 or 3 pin)
- Built-in cold-junction compensation
- Follows NIST ITS-90 thermocouple temperature correction table
- RoHS3 Compliant
- 3 years warranty
PRODUCT OPTIONS
- 3-point user calibration mechanism (CAL option)
- COM communication (VCP option)
- Traceable to the CNRC (NIST) certificates
FREE DATA LOGGING AND MONITORING SOFTWARE
Learn more and download DracalView:
- Get up-and-running in less than 3 minutes
- Operates under Windows, Mac OS X and Linux
- Real-time on-screen graphing and logging
- Configurable log file format
- Log interval down to 0.5 second
- Configurable units (°C, °F, K…)
- Simultaneous use of unlimited Dracal sensors supported
- Simple user-calibration (products with the CAL option)
- Connectivity with SensGate Wi-Fi/Ethernet gateway
EASY TO INTEGRATE IN YOUR OWN APPLICATION
- One portal page to easily get started
- Easily switch between USB CLI and Wi-Fi/Ethernet CLI
- Code samples available for many programming languages
- Usable with LabView (Guide here)
All command-line tools (CLI) are packaged with DracalView
Description
TMC100: USB Adapter for Thermocouple, compact and easy to use.
The TMC100, part of the TMC series, is a compact, easy-to-use USB adapter for thermocouples. It allows you to connect a thermocouple to a computer, enabling temperature recording to start in just a few minutes. Compatible with Type K/J/T/N/E thermocouples with 2 or 3 pins, it offers exceptional precision over a wide operating range. The built-in cold junction and thermocouple compensation based on the NIST ITS-90 tables ensure precise and reliable measurements. This lightweight and compact device, with ABS plastic housing, operates on USB power and USB 2.0 communication, offering a convenient and efficient solution for temperature data acquisition with thermocouples.
Like all Dracal measurement instruments, the TMC100 is compatible with free software tools, making it an essential component of a DAQ solution. For those who wish to integrate the TMC100 into their system, there are two options available: command line tools and VCP mode. If you prefer a graphical interface, DracalView is the appropriate choice.
Easy to use in your applications
- Virtual COM option (VCP)Â
- dracal-usb-get: command-line data integration tool
- dracal-sensgate-get: command-line tool for wireless access to sensors connected to a SensGate
- RVCP: REST API for wireless access to VCP instruments connected to a SensGate
Multiple integration and code examples, including Python, C, C++, Java, Node.js, C#, Grafana and LabVIEW.
Free data monitoring and calibration software
Be instantly operational with DracalView: our free data visualization, logging and calibration software
- Works under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Simultaneous visualization and logging of an unlimited number of sensors
- Automatic synchronization with our Wi-Fi gateway
- Easy calibration mechanism open to the end-user
Application examples
- LIMS integration (Tetra Lab Monitoring solution)
What is included
- One (1) TMC100 Unit
- One (1) connector
- Quick installation guide
- Data acquisition solution for DAQ system
Available options
Specifications
- Supported sensors: Type-K/J/T/N/E thermocouples (2 or 3 pin)
- Typical operating range and accuracy:
| Product | Thermocouple | Operating Range | Accuracy | Probe* operating range | Accuracy, including the probe* |
|---|---|---|---|---|---|
|  |  | (°C) | (°C) | (°C) | (°C) |
| TMC100k | Type-K | -200 to 1372 | ±0.5 or better | -73 to 260 | ±2.7 or better |
| TMC100j | Type-J | -200 to 1200 | ±1.0 or better | -0 to 260 | ±3.2 or better |
| TMC100t | Type-T | -200 to +400 | ±0.5 or better | -73 to 260 | ±2.0 or better |
| TMC100n | Type-N | -200 to +1300 | ±0.5 or better | -0 to 260 | ±2.7 or better |
| TMC100e | Type-E | -200 to +1000 | ±0.5 or better | -73 to 260 | ±2.2 or better |
*Probes offered by Dracal Technologies.
- Built-in cold junction compensation
- Built-in NIST ITS-90 thermocouple temperature correction table
Miscellaneous
- Housing temperature range: 0°C to 50°C
- Powered through USB
- Communication: USB 2.0
- Current consumption: 13 mA
- Enclosure: ABS Plastic, USB-key form factor
- Weight: 28 g
- Overall dimension: H 2.9″ (74 mm) X W 1.35″ (35 mm) X D 0.72″ (17 mm)
- RoHS3 compliant.
Available channels
(As displayed in our logging software DracalView)
| Channel Id | Description | Type | Nature |
|---|---|---|---|
| 00 | Type-x Thermocouple | Temperature | Real |
| 01 | Thermocouple cold junction temperature | Temperature | Real |

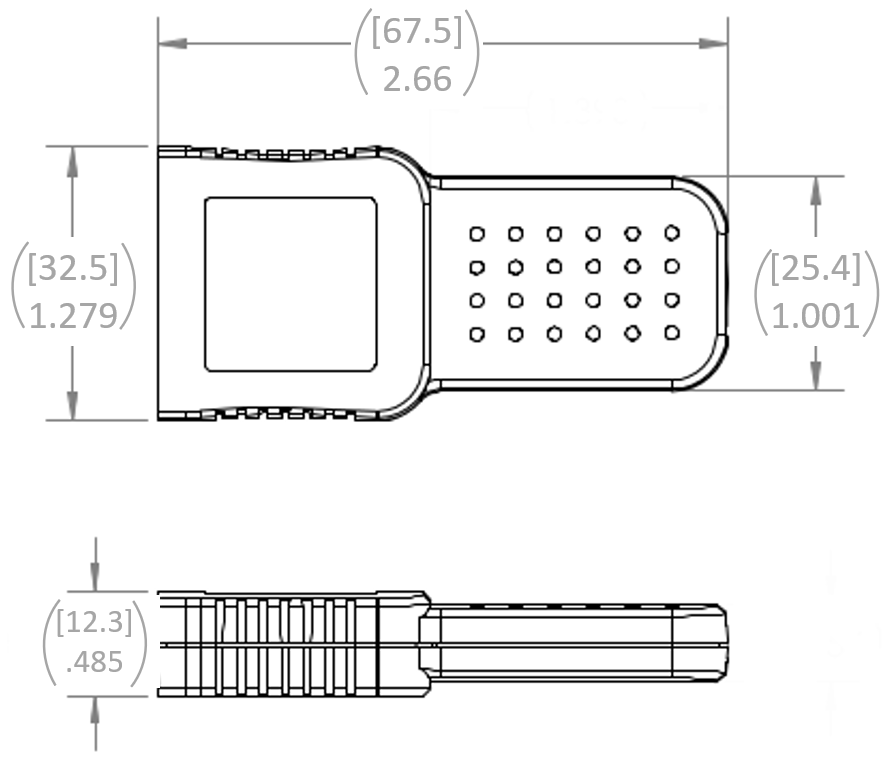

Dimensions
Units: Inch [mm]
Virtual COM port communication protocol (option)
This product is available with the option of communication via virtual COM port protocol. Products with this option can be freely converted between USB and VCP communication modes. For more information about this option, consult the documentation of the VCP option.
Of note, for Windows 7 users, here is the installation procedure.Here is what the invocation of the command INFO returns for one type (TMC100k) of this product:
I,Product ID,Serial Number,Message,Type-K Thermocouple,C,Thermocouple cold junction temperature,C,*12D9as well as an example of what this product transmits:
D,VCP-TMC100k,E13256,,32.125,C,23.5,C,*9C50
D,VCP-TMC100k,E13256,,31.1875,C,23.5625,C,*7934
D,VCP-TMC100k,E13256,,29.4375,C,23.5,C,*6AA9
D,VCP-TMC100k,E13256,,28.375,C,23.5,C,*DA8F
D,VCP-TMC100k,E13256,,27.375,C,23.5,C,*855D3-point user calibration mechanism (option)
This product can be equiped with a 3-point user calibration mechanism. Devices equiped with this feature are eligible for calibration and certification in an accredited ISO/IEC 17025 laboratory. You will find here more information about NIST traceable certificates.
Free data logging software
- Real-time on-screen graphing and logging
- Supported by our DracalView data logger software and tools
- Operates under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Configurable log file format with log interval down to 0.5 second
- Configurable units (°C, °F, K...)
- Simultaneous use of unlimited Dracal sensors supported
- Seamless connectivity with SensGate Wi-Fi/Ethernet gateway
- Command-line tool dracal-usb-get is also available (packaged with DracalView)
- Use it in your own application easily! We provide code samples for many programming languages
- Usable with LabView (Guide here)
- And much more! Visit our DracalView software WEB page for more information
Do you have STEP/CAD files of your instruments?
You can find them on each instrument page under the Datasheets tab if available.
Are your sensors battery-powered?
No, they are not. They are powered via the USB plug; therefore, they must be plugged in to transmit data.
What calibration is performed on the TMC adapter during production?
TMC100: The temperature conversion principles for thermocouples are applied as is. No additional compensation is performed. The accuracy still meets thermocouple standards.
TMC200: Calibration at 0°C is performed to compensate for zero error and improve accuracy.
How do I connect my thermocouple to the adapter?
A two-pin connector is provided with the adapter. Simply open it and plug in the wires of your thermocouple. Then, insert the connector into the USB adapter, and you’re good to go! Removing the connector from the adapter is also challenging, making the construction very robust.
Is an external probe necessary for calibrating the adapter?
No, having a probe to calibrate the adapter is unnecessary. Without a probe, the laboratory will use an instrument that simulates the presence of a theoretical probe. However, if possible, it is preferable to calibrate the device with the final probe to compensate for the probe’s error in calibration and achieve better accuracy.
Is the individual calibration of the measuring instruments done at the Dracal factory
At the Dracal production factory, a pass/fail type of testing is conducted during the production of the measuring instrument. Additionally, the component manufacturer carries out individual calibration at their factory before being shipped to us. These calibrations are not ISO17025 certified, but if your industry does not require this standard, you can confidently use Dracal’s USB adapters upon receiving them.
My temperature probe can be used at more extreme temperatures than the announced housing temperature range (0°C to 50°C). What precautions should I take?
To measure temperature, only the probe should be placed in an environment hotter than 50°C. Additionally, the advertised accuracy for the adapters is optimal at 25°C.
Can I use my own probe with Dracal’s transmitter?
If your probe is compatible with the transmitter, yes! The probes offered by Dracal are just one of a multitude of options.
Are the specifications advertised in the datasheet those of my entire system?
No, they are not. The specifications in the datasheet apply to the transmitter only, with no probe connected. So, for your system (transmitter + probe), you need to “add up” the characteristics not only of the transmitter but also of the probe you choose to connect to it, either the one offered by Dracal or another of your choice.
Why is my transmitter returning data that makes no sense?
If you’ve wired your sensor yourself, you’ve most likely connected the wires to the wrong terminals. Consult the datasheet and check carefully that you’ve followed the connection diagram.
If you disconnected the probe by pulling on the probe wire rather than the connector itself, you may have lost contact between one of the wires and its terminal block. Open the connector and check that all wires are connected.
How do I request a quote?
We have created the easiest possible quote request system for you.
1. Create an account and log in.
2. Then do whatever you would do while shopping, then click on the shopping cart in the top right.
3. In your cart, click on “Switch to quote”, then at the bottom of the page “Proceed to quote”. You will not be asked for any payment information.
You will then receive a quote by email, which you can accept and pay within 30 days.
What are the advantages of choosing a calibratable instrument (-CAL option)?
The devices with the 3-point calibration mechanism have a longer lifetime as it is possible to compensate for the natural drift of the measurements. The cost/lifetime ratio is thus considerably reduced and, just as importantly, this choice is environmental friendly.
These devices can be easily calibrated and certified by external resources (including our ISO17025 certified partner laboratory) and allow you to synchronize your various devices between them.
What are the advantages of using your USB communicating devices over other technologies?
