RS232-Tenki
RS-232 barometer
SPECIFICATIONS OVERVIEW
| Range: | 15 to 115 kPa | |
| Accuracy: | 2% MV Max from 0° to 85°C | |
| Resolution: | ±0.1 kPa |
Communication protocol: RS-232
Overview
Characteristics
Datasheets
FAQ
Description

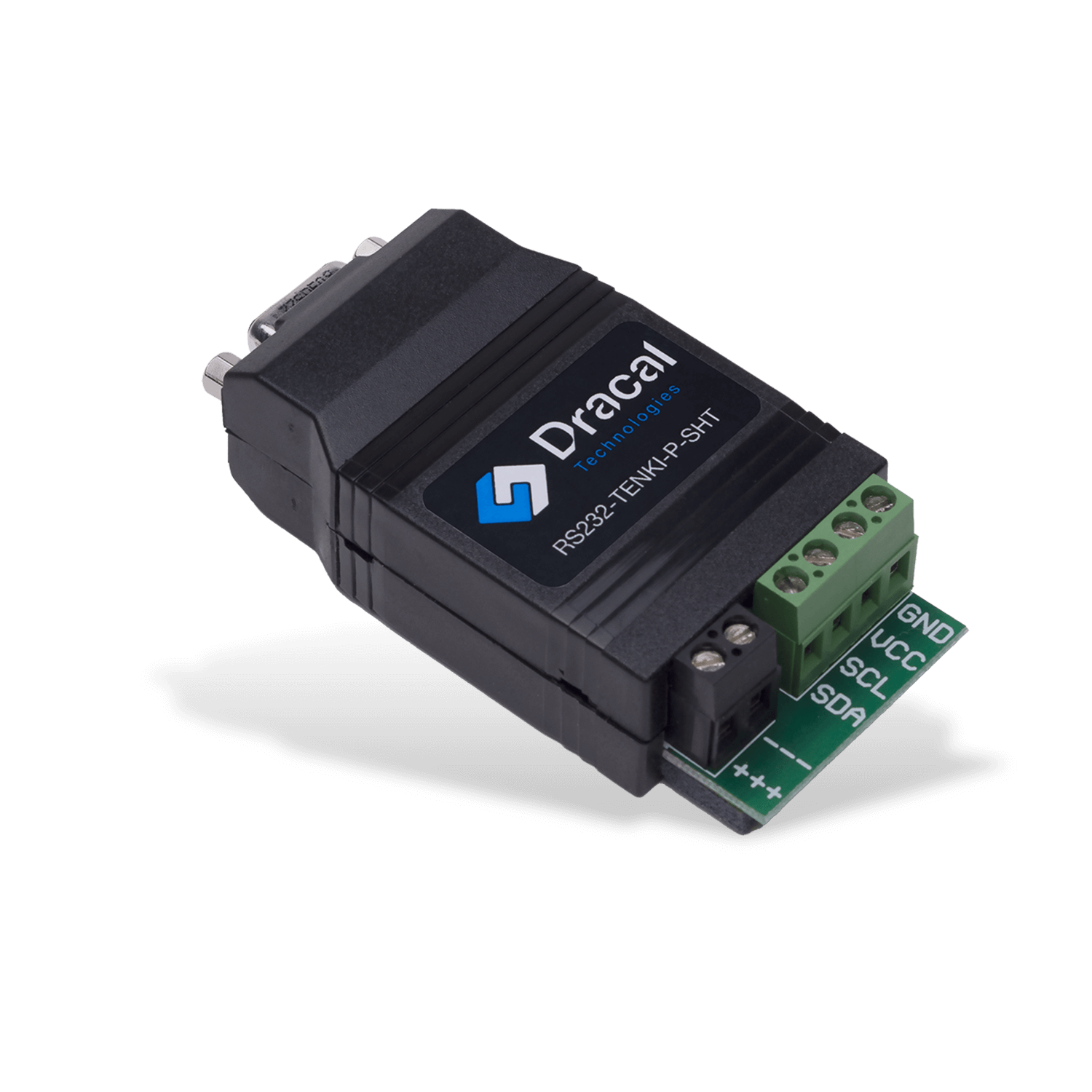

RS232-Tenki: RS232 barometer.
This atmospheric pressure sensor is easy to interface with thanks to its simple RS-232 interface and protocol. Also, a Sensirion sensor such as the SHT31 can be wired to the unit for applications requiring a temperature, relative humidity and dew point reading.
Data acquisition
This product uses a simple ASCII communication protocol that can be very easily implemented using most programming languages. You will find detailed documentation of the protocol under the tab Datasheet.
Possible applications
- Altitude measurement
- Weather stations
- OEM integration
- Height and depth measurements
- Engineering and R&D
What is included
- One (1) RS232-Tenki unit
- Quick installation guide
- Data acquisition solution for DAQ system
