TMC200
High-precision and high-resolution USB adapter for thermocouple
Model | Operating Range (°C ) | Minimum Accuracy (°C) |
TMC200k: | -200 to 1372 | ±0.5 |
TMC200j: | -200 to 1200 | ±1.0 |
TMC200t: | -200 to +400 | ±0.5 |
TMC200n: | -200 to +1300 | ±0.5 |
TMC200e: | -200 to +1000 | ±0.5 |
Resolution: | 0.01°C | |
Error status code: | Yes |
- Returns error status
- Sampling rate: 5 readings/second
- Supports type-K/J/T/N/E thermocouples (2 or 3 pin)
- Built-in cold junction compensation
- Follows NIST ITS-90 thermocouple temperature correction table
- RoHS3 Compliant
- 3 years warranty
PRODUCT OPTIONS
- 3-point user calibration mechanism (CAL option)
- COM communication (VCP option)
- Traceable to the CNRC (NIST) certificates
FREE DATA LOGGING AND MONITORING SOFTWARE
Learn more and download DracalView:
- Get up-and-running in less than 3 minutes
- Operates under Windows, Mac OS X and Linux

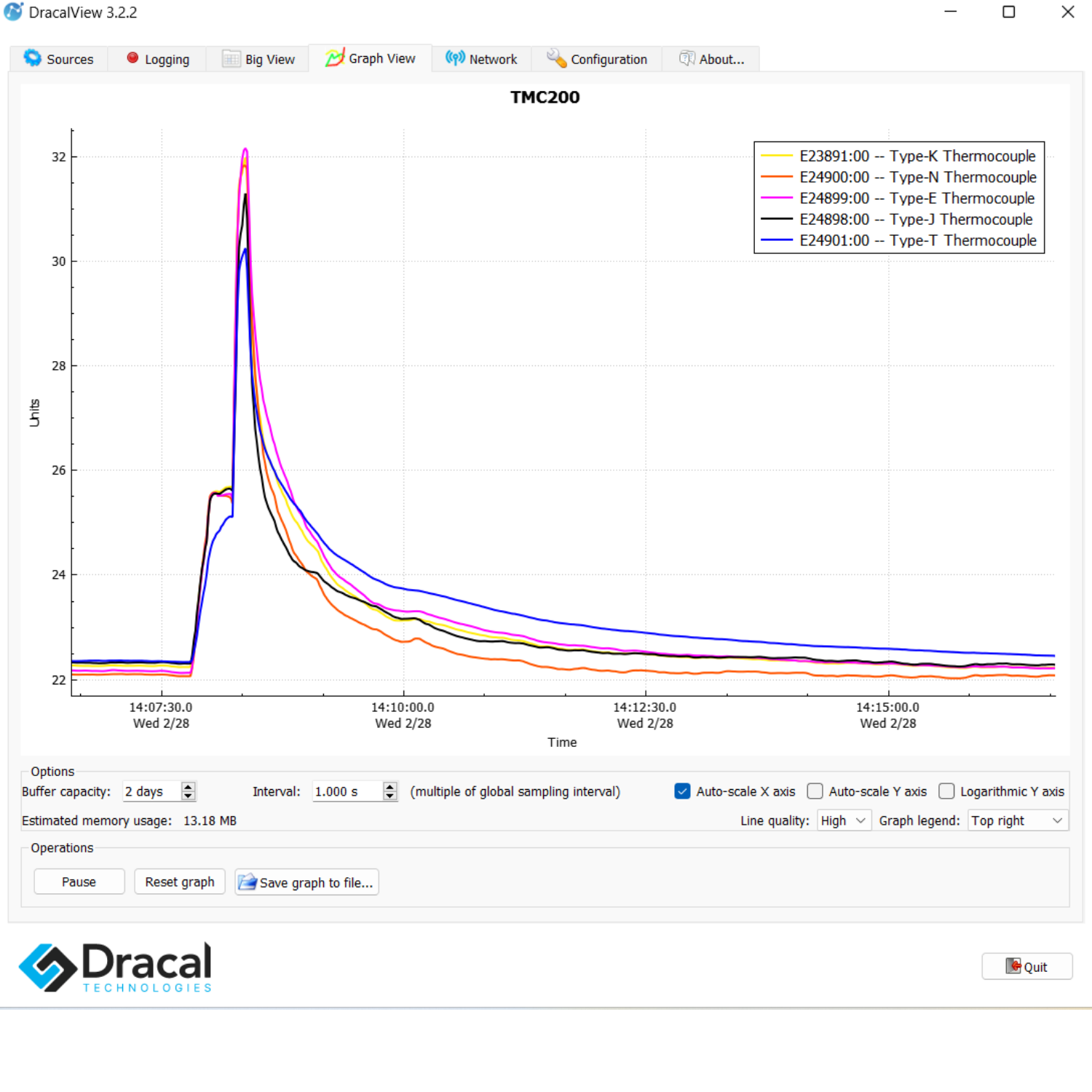

- Real-time on-screen graphing and logging
- Configurable log file format
- Log interval down to 0.5 second
- Configurable units (°C, °F, K…)
- Simultaneous use of unlimited Dracal sensors supported
- Simple user-calibration (products with the CAL option)
- Connectivity with SensGate Wi-Fi/Ethernet gateway
EASY TO INTEGRATE IN YOUR OWN APPLICATION
- One portal page to easily get started
- Easily switch between USB CLI and Wi-Fi/Ethernet CLI
- Code samples available for many programming languages
- Usable with LabView (Guide here)
All command-line tools (CLI) are packaged with DracalView













Description
TMC200: USB adapters for thermocouples with improved precision and error detection.

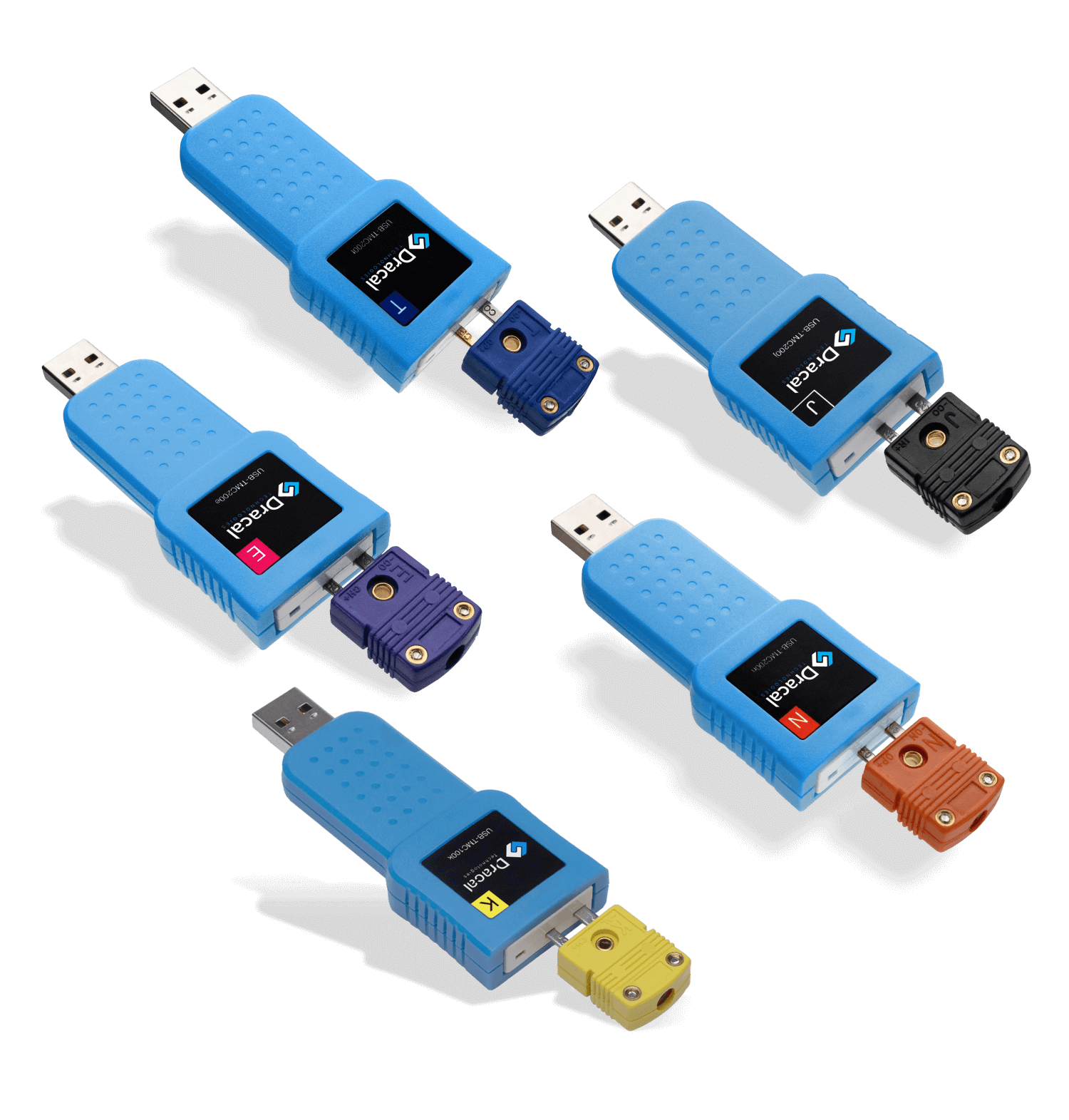

Member of the TMC series, the TMC200 family of USB converters are compatible with Type K, N, T, E, and J thermocouple probes featuring either two or three pins. We offer each type of probe pre-wired with a polarized connector for easy connection to the converter. Our probes have an exposed tip for very rapid responsiveness. However, you can also choose the probe that suits your needs and the appropriate TMC200 model.
Two types of compensation are integrated into the converter, ensuring high-temperature reading accuracy. Additionally, the converters are factory-calibrated to guarantee reading accuracy at 0°C.
Like all Dracal measuring instruments, the TMC200 is compatible with free software tools, making it an essential component of a DAQ solution. For those looking to integrate the TMC200 into their system, two options are available: command-line tools and VCP mode. If you prefer a graphical interface, DracalView is the appropriate choice.
Easy to use in your applications
- Virtual COM option (VCP)

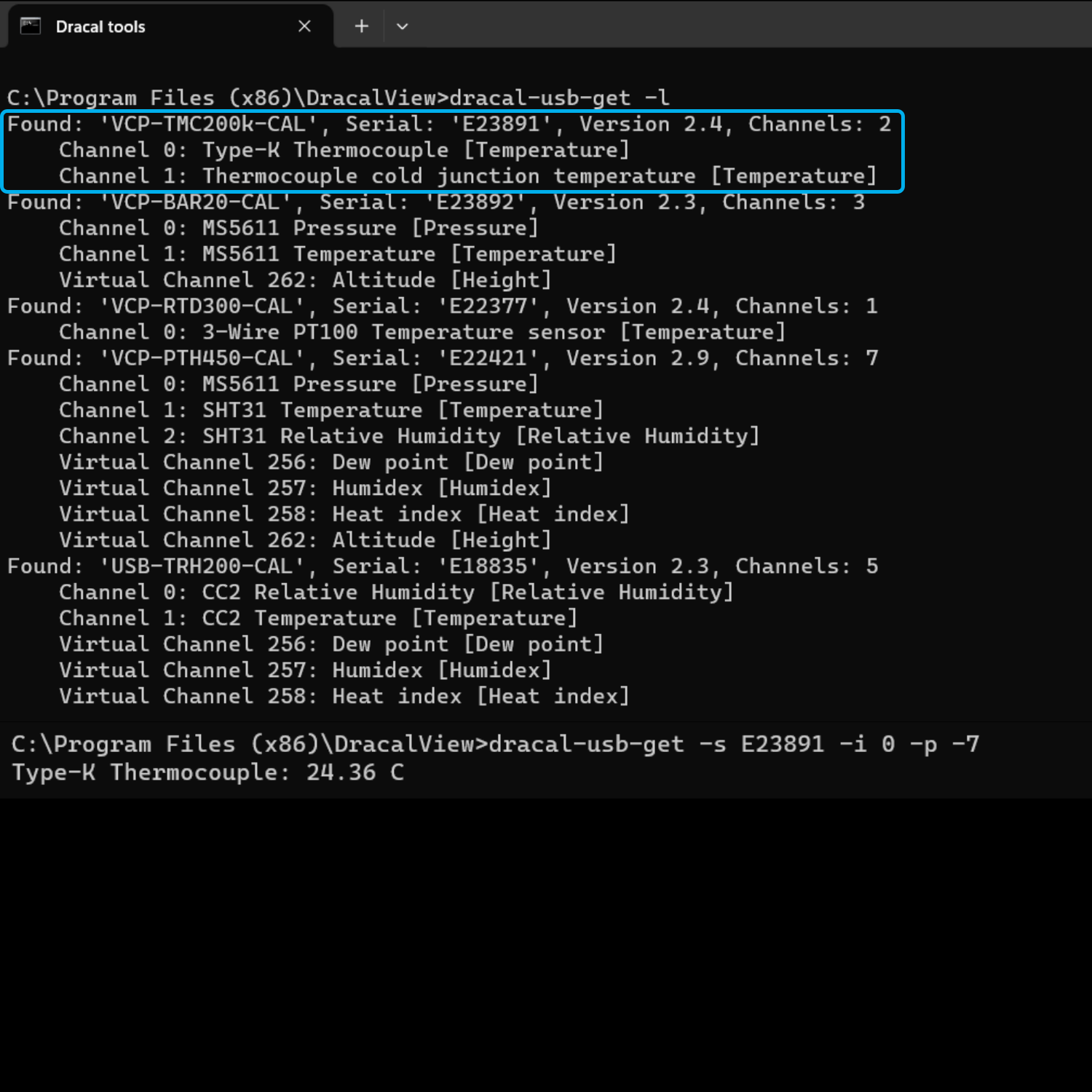

- dracal-usb-get: command-line data integration tool
- dracal-sensgate-get: command-line tool for wireless access to sensors connected to a SensGate
- RVCP: REST API for wireless access to VCP instruments connected to a SensGate
Multiple integration and code examples, including Python, C, C++, Java, Node.js, C#, Grafana and LabVIEW.

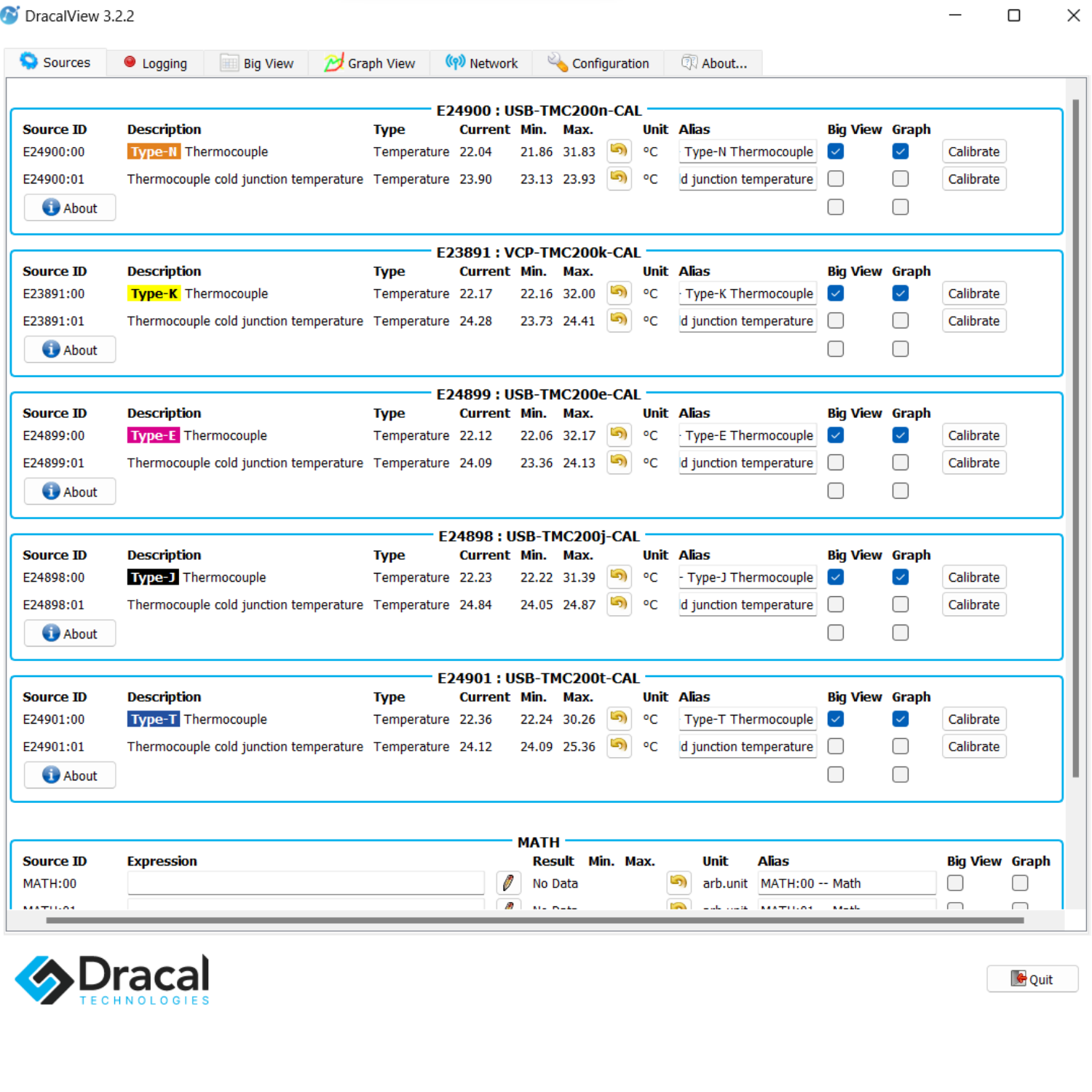

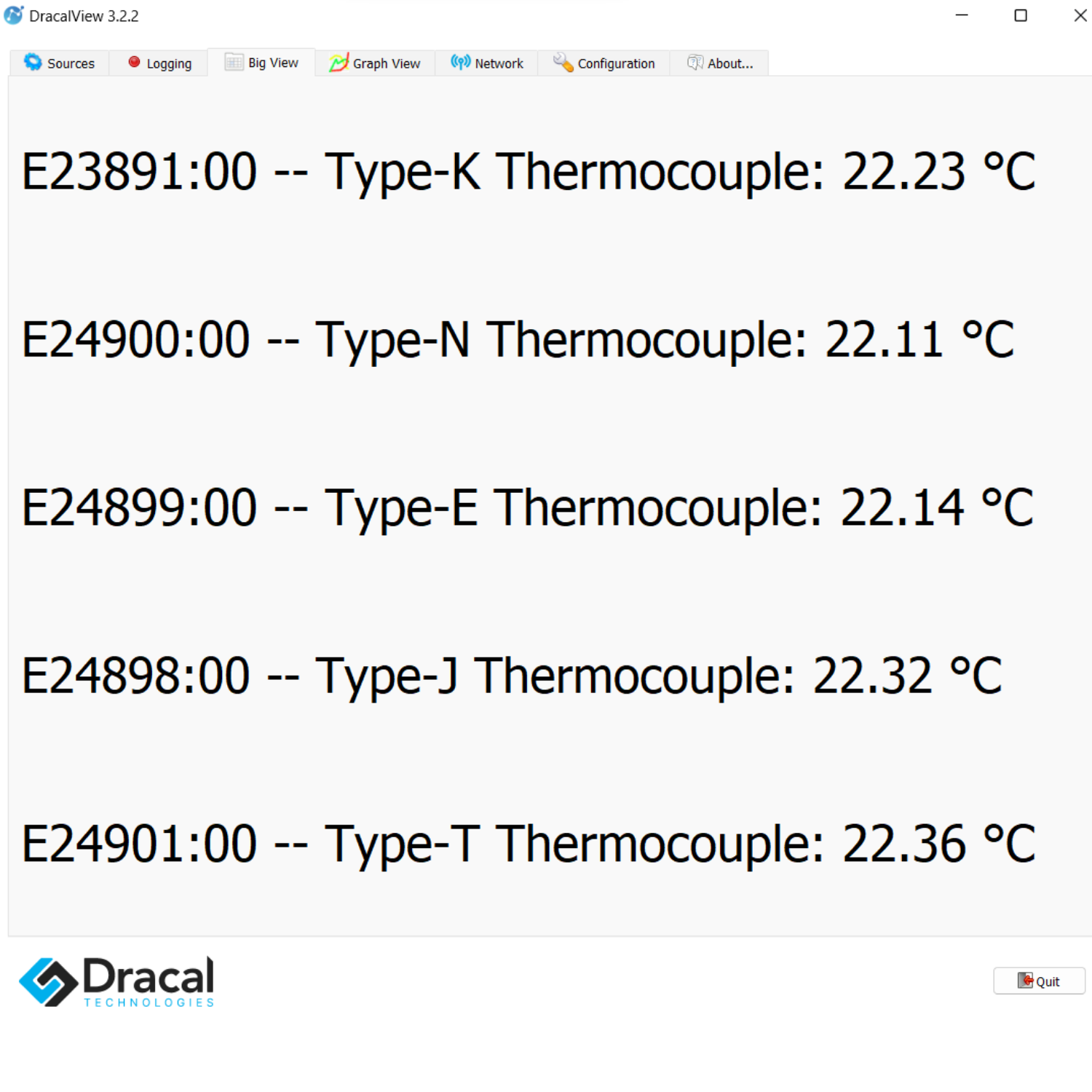

Free data monitoring and calibration software
Be instantly operational with DracalView: our free data visualization, logging and calibration software
- Works under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Simultaneous visualization and logging of an unlimited number of sensors
- Automatic synchronization with our Wi-Fi gateway
- Easy calibration mechanism open to the end-user
Application examples
- Measurement of very high temperatures (>200°C)
- Measurement of temperature in a liquid or gas
What is included
- One (1) TMC200 unit
- One (1) connector
- Quick installation guide
- Data acquisition solution for DAQ system
