SensGate
On-prem Wireless Monitoring System
Fast shipping worldwide!
Shipped within 3 business days
Volume discounts available for modular OEM integration projects. Contact sales@dracal.com for more information.
Choose your model
What options do I need? Am I missing something?
Read our 5-step guide to placing an order without forgetting anything.
| Less than 3 minutes to get up-and-running | ||
| Connect up to 99 USB Dracal sensors | ||
| Works with free DracalView software | ||
| Integrates easily into your current sofware (custom, LabVIEW, etc.) | ||
| Secure access and authentication | ||
| Power-over-Ethernet (PoE) | ||
| Built-in web interface for data visualization and onboard data logging |
- 3 years warranty
- RoHS, CE
- Compatible with Dracal sensors including -CAL models (user-calibratable) with optional ISO 17025 calibration certificates
ADDITIONAL INFORMATION
- Free data acquisition toolkit, including DracalView DAQ system and REST API
- Easy to integration into your own software
- No cloud dependency—all data stays on your local network
- No driver installation required—access via standard HTTP/web browser
- Access point (AP) function to create a private network supporting up to 7 connected devices
- Connects via USB, Ethernet and Wi-Fi
- Secure Firmware updates over-the-air (FOTA)
- Connects via USB, Ethernet and Wi-Fi
Description

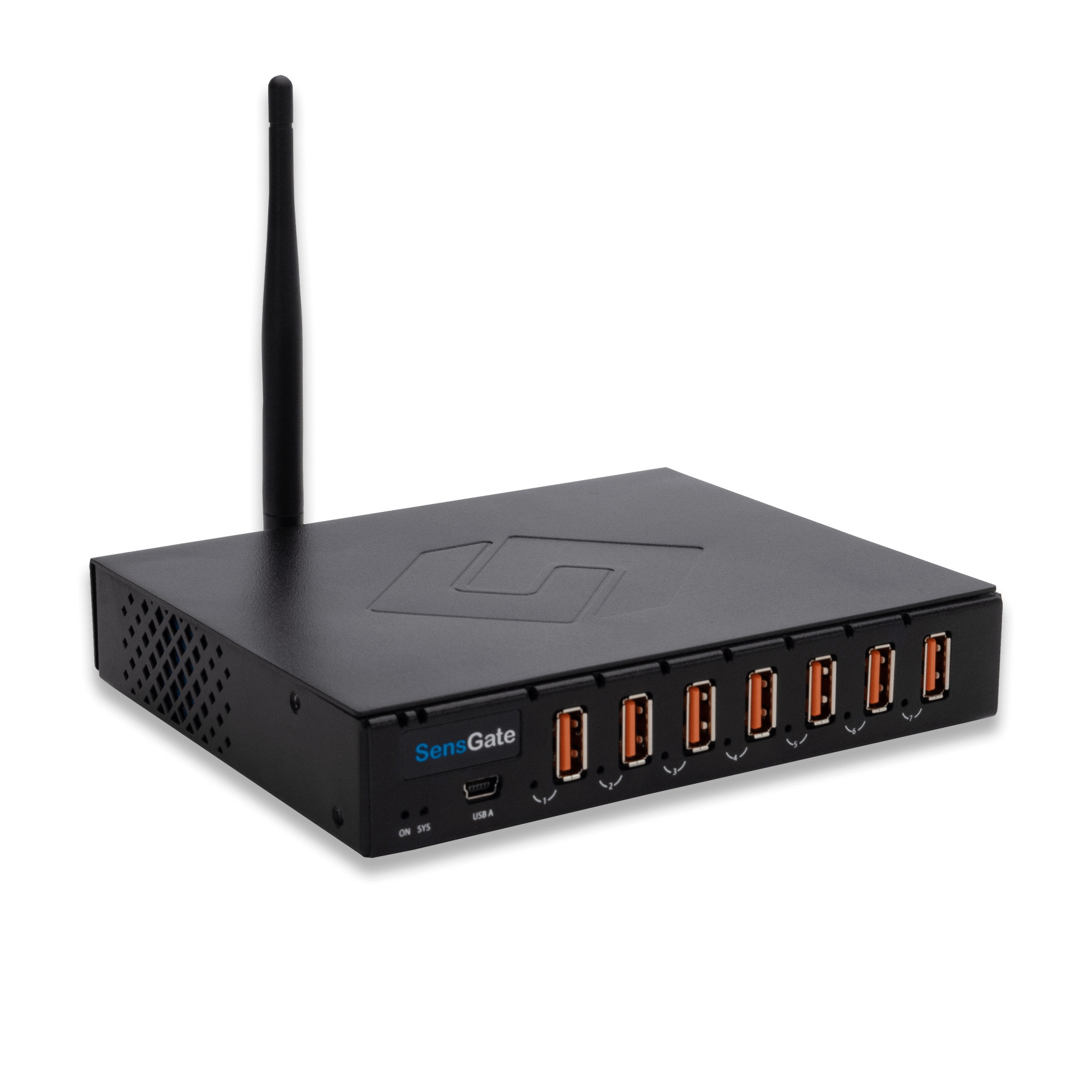

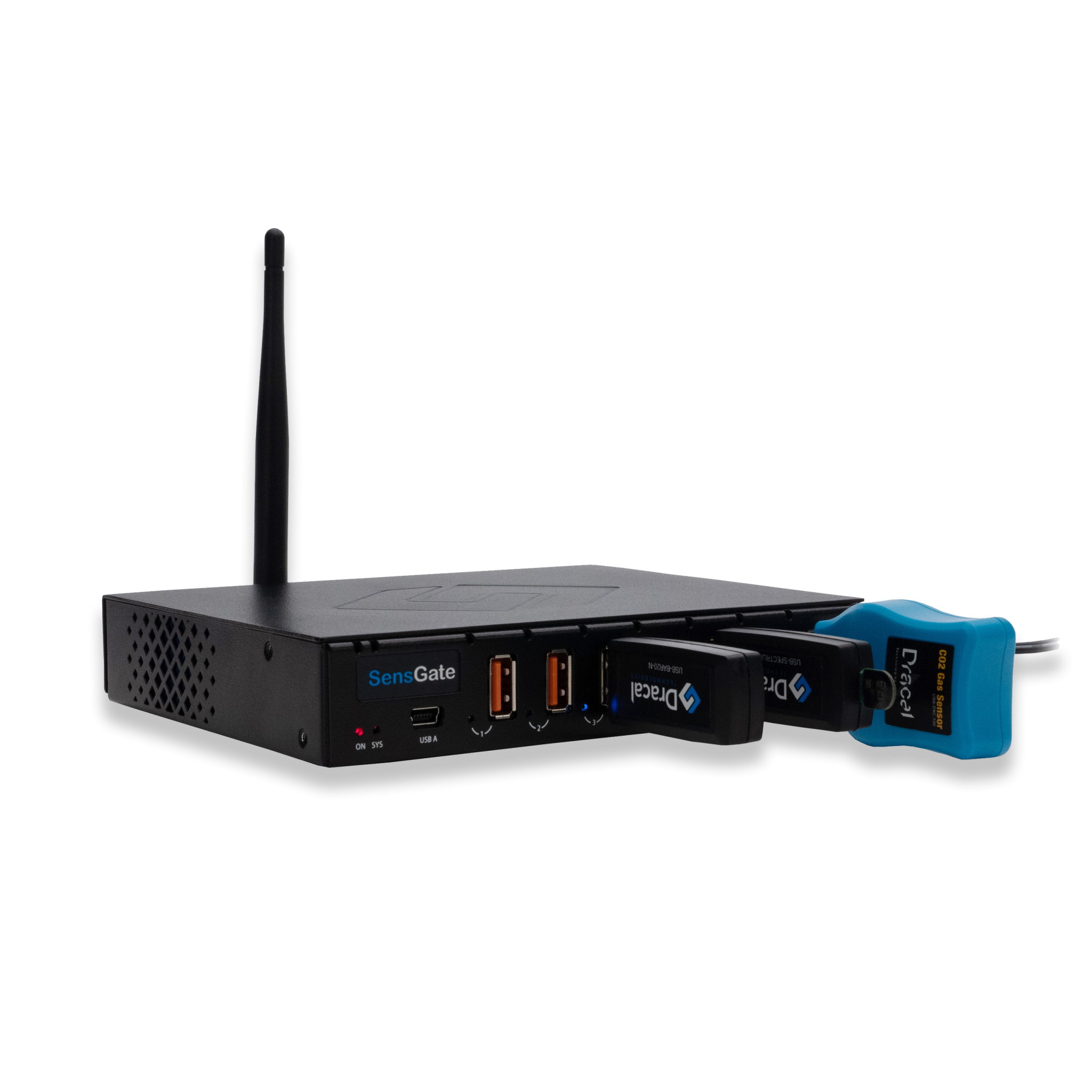

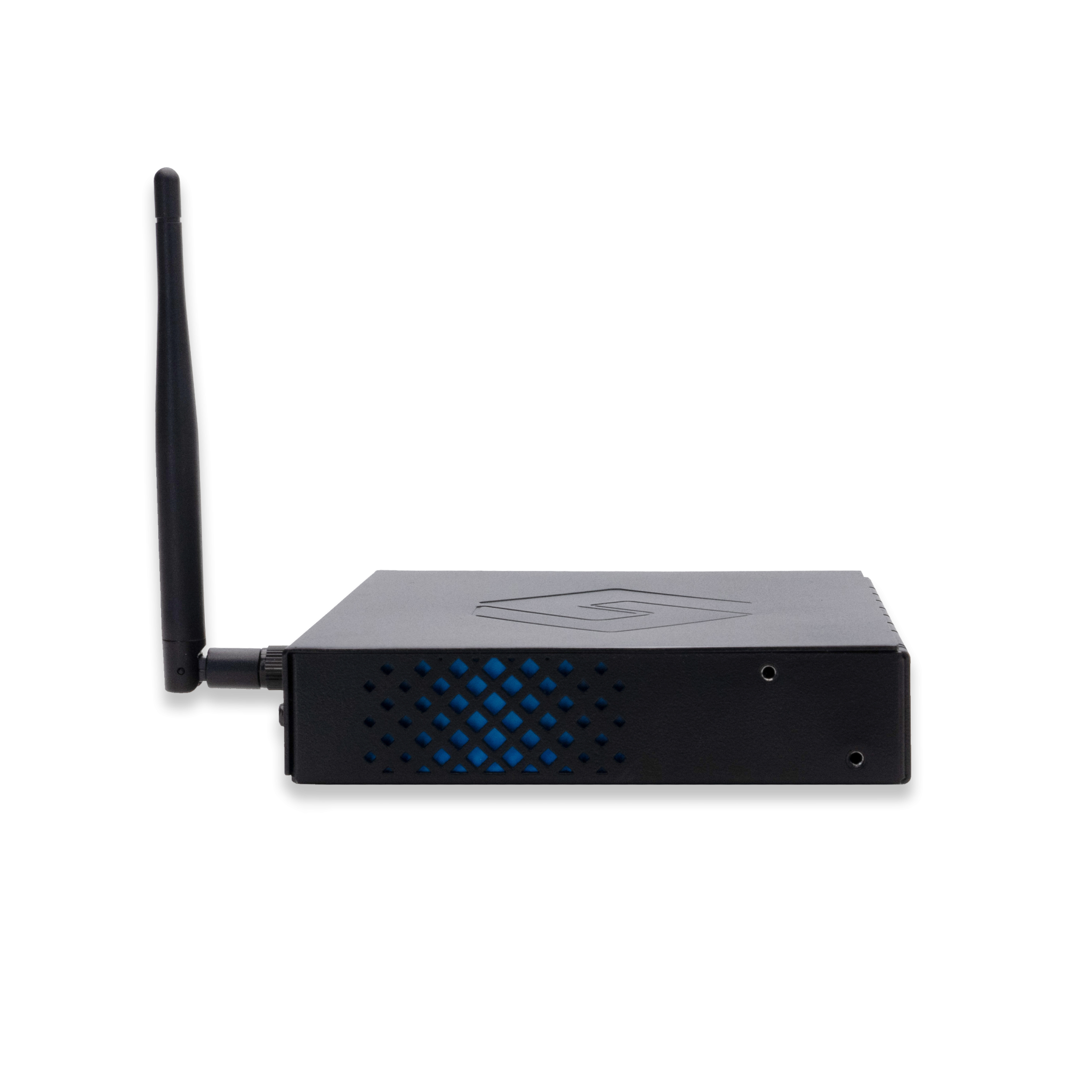

SensGate: Thanks to robust Wi-Fi & Ethernet capabilities, you can seamlessly access data from your Dracal sensors as if they were right next to you.
The SensGate is a simple-to-operate multi-functional unit. It allows you to seamlessly remotely connect one or more USB Dracal Technologies sensors and see them as if they were connected directly to a USB port on your computer—all without drivers or additional hardware. By using our data acquisition DracalView software, you can operate your SensGates while taking advantage of all the features the software already offers. With just a few clicks, you can simultaneously access, visualize, and log data from all sensors connected to your computer, HUB, and SensGates.
In addition to its seamless connectivity, its onboard data logging functionality allows you to view and save your data locally on the device, providing desirable redundancy for your valuable data. With 3 gigabytes of dedicated flash data memory, your SensGate can record data for months without network access. All you need is a power source. The SensGate will automatically resume your recording task following a sudden power outage without corrupting the log file.
For those who want to integrate their data with their own systems, we have thought of you. A set of intuitive tools is at your disposal so that you can fully control your data flow, including a REST API for Dracal sensors that operate under COM protocol. To maintain our promise of precision, advanced data synchronization and delay correction algorithms ensure that Dracal instrument data coming from multiple sources are all synchronized for robust and reliable time stamping.
What does the SensGate allow you to do?
- Start recording data in less than 3 minutes
- Observe, in real-time, from your computer, the course of a process
- Seamlessly view, graph, save and download data on-site or remotely
- Create your private communication network
- Integrate the data in real-time in your own software base
- Store and view data stored on the SensGate using its built-in web server
- Access your data by USB, Ethernet or Wi-Fi connection
Data integration methods

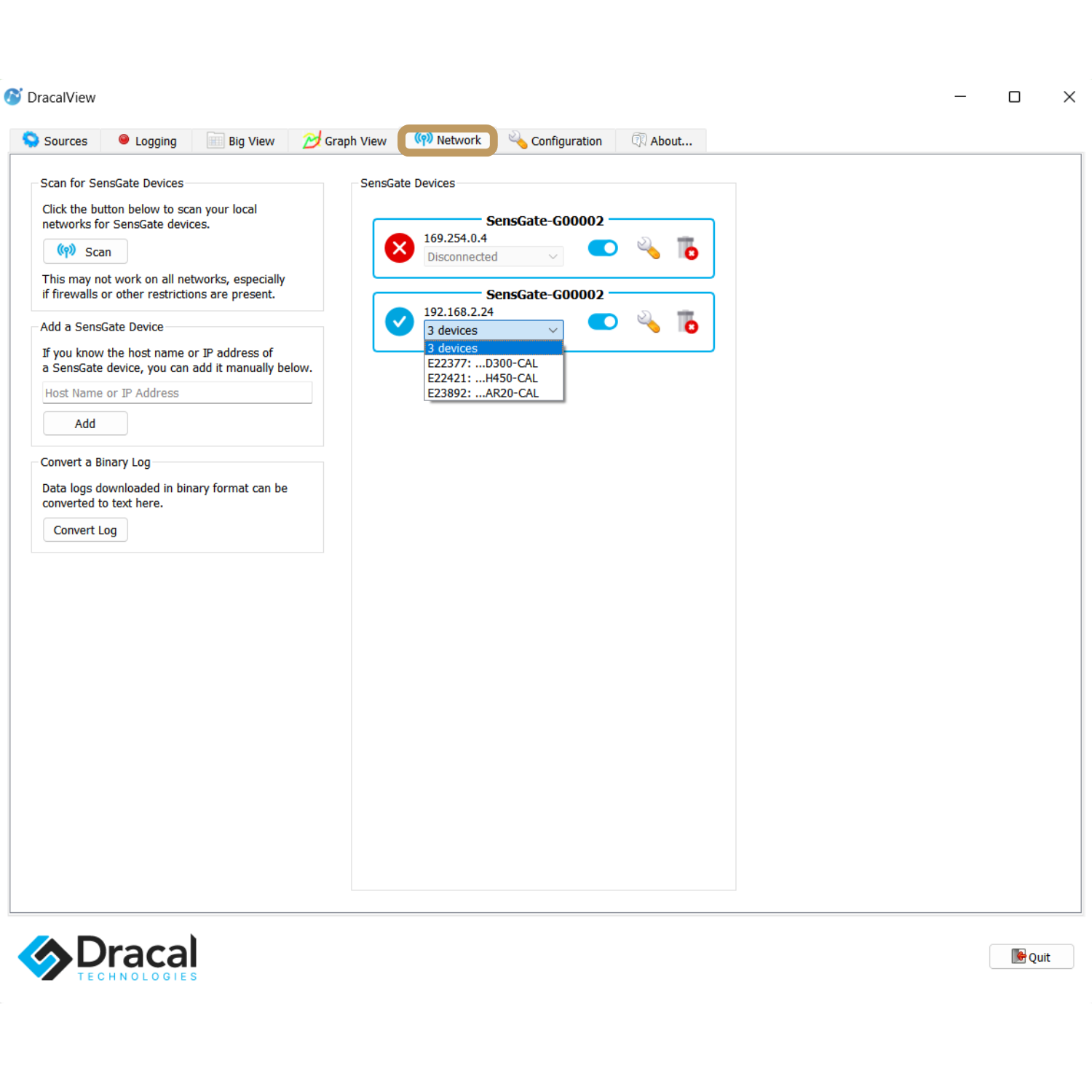

DracalView Desktop Software (Included Free)
- Visualize and log data from all connected sensors
- Cross-platform: Windows, Mac, Linux
- No programming required
Command-Line Tools (Included Free)
dracal-sensgate-getfor quick data retrieval- Works with scripts and automation workflows
- Included with DracalView installation
- See documentation
REST API for Custom Integration
- Access sensor data via HTTP requests
- Works with any programming language
- Available with sensors with the VCP option
- See documentation
Want to know more about what the SensGate can do for you?Â
Check out the product datasheet.
Ethernet port
- Ethernet Network Standards 802.3u 10/100 Mbits.
- Power-over-Ethernet (optional).
- IEEE1588 compliance (NTP).
- Connector type: RJ-45, 8-pin.
- Shielded cable.
- Cable category 5 or higher.
- Cable length up to 300m.
- Minimum cable requirements of 2-pairs, 4-pin.
USB device ports 0 to 7
- USB 2.0, host.
- Full speed, 480Mbps.
- 7 ports for sensors and USB hubs.
- Type-A high-retention force connectors.
- USB connectors retention force of 15N (3.4 lb-f).
- Up to 1500 mating cycles.
- Maximum available and limited current per port of 100mA.
- Each port is short-circuit protected.
- During a short circuit, the port tries to connect again.
- USB cable length up to 5 m (15 ft).
USB service port
- USB 2.0
- Type-B mini 5-pin connector.
- USB cable length up to 5 m (15 ft).
- Maximum available and limited current of 100mA.
- Each port is short-circuit protected.
- During a short circuit, the port tries to connect again.
Wi-Fi port
- Ethernet Network Standards 802.11b/g/n 72 Mbps
- ISM band, 2.4 G.
- Transmission speed up to 72 Mbit/s.
- IEEE 802.11 WPA security feature.
- Integrated Soft-AP support.
- Up to seven clients in Soft-AP mode.
- Certified by the Wi-Fi Alliance.
- Wi-Fi sensitivity of 1Mbps at -95 dBm and 54Mbps at -73dB.
- Maximum output power of 17 dBm.
- Up to 13 channels (depending on country).
- RP-SMA female antenna connector.
System
- Microcontroller ARM® Cortex A7, 528 Mhz.
- 1GB eMMC Flash system memory.
- 3GB eMMC Flash memory dedicated for DAQ.
- 256 MB DDR3 SDRAM for system memory.
- Integrated real-time clock (RTC).
- RTC drift of 5 min/year in autonomous mode at 25°C.
- Supports RTC synchronization with the network (NTP).
- 8 months of energy backup to maintain time function when the SensGate is not powered.
- No battery-to-replace technology.
Mechanical
- Temperature operating range from -10°C to 50°C.
- Humidity operating range from 10 %RH to 90 %RH (Non-condensing).
- IP protection class 51.
- 1m (3ft) USB cable length (included).
- Housing material made of steel.
- Mounting brackets set for wall or flat position (included).
- Mounting brackets fit a rack at 1U height.
- For physical dimensions, see the schema below.
- Weight (without accessories) – 585 g.
- Weight (with accessories) – 890 g.

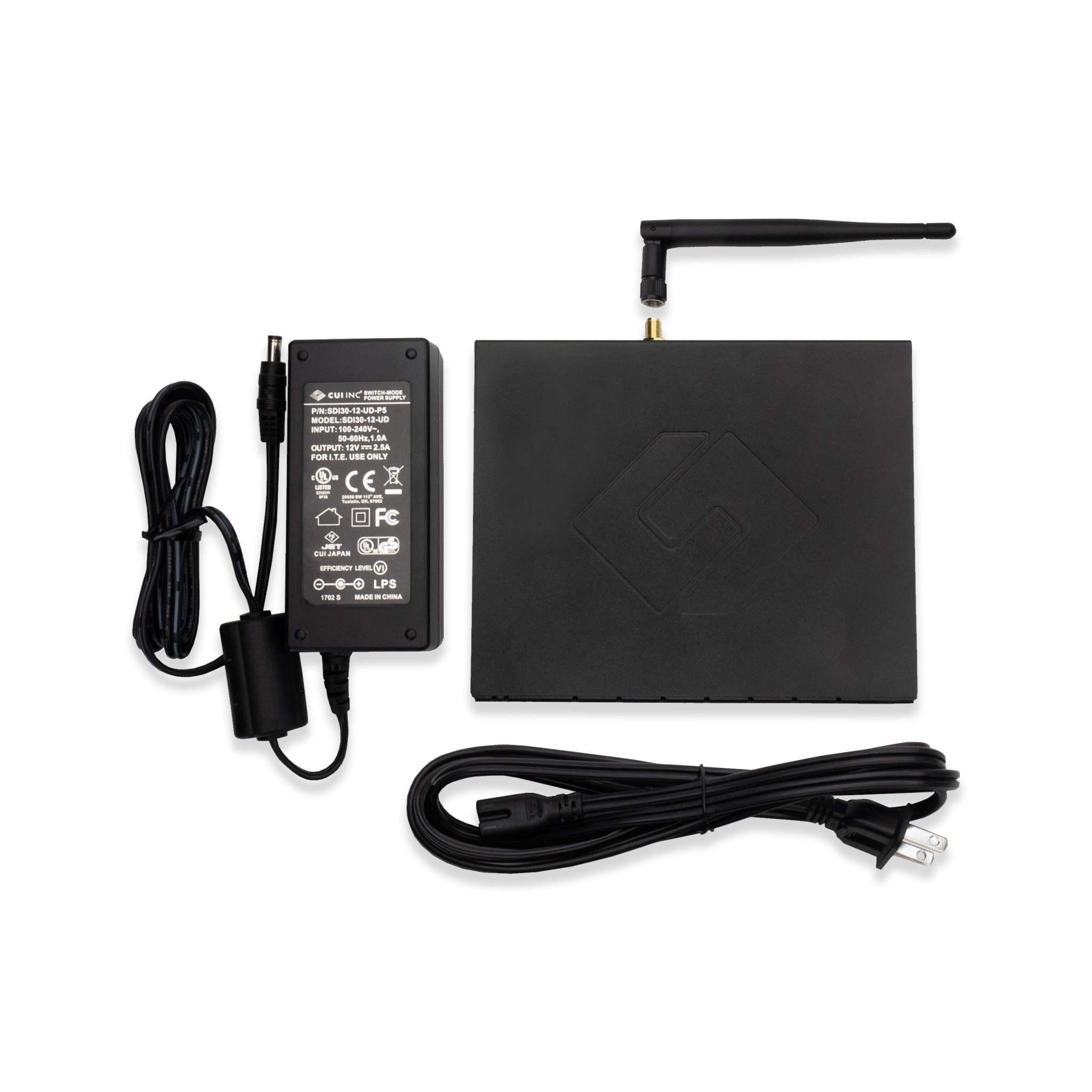

Power adapter
- 12Vdc at 1 A maximum (included).
PoE supply (optional)
- Supply voltage from 44 Vdc to 57 Vdc.
- Maximum current consumption of 350 mA.
- Maximum power consumption of 10 W.
- Supports modes A or B.
- IEEE Compliant to 802.3af.
Certification
- IC: 20266-WILC3000UA, 20266-WILC3000UA.
- FCC: 2ADHKWILC3000U
- RoHS T.B.D.
Miscellaneous
- Reset button
- Factory default parameters reset button.
- This product comes with a warranty of 3 years.

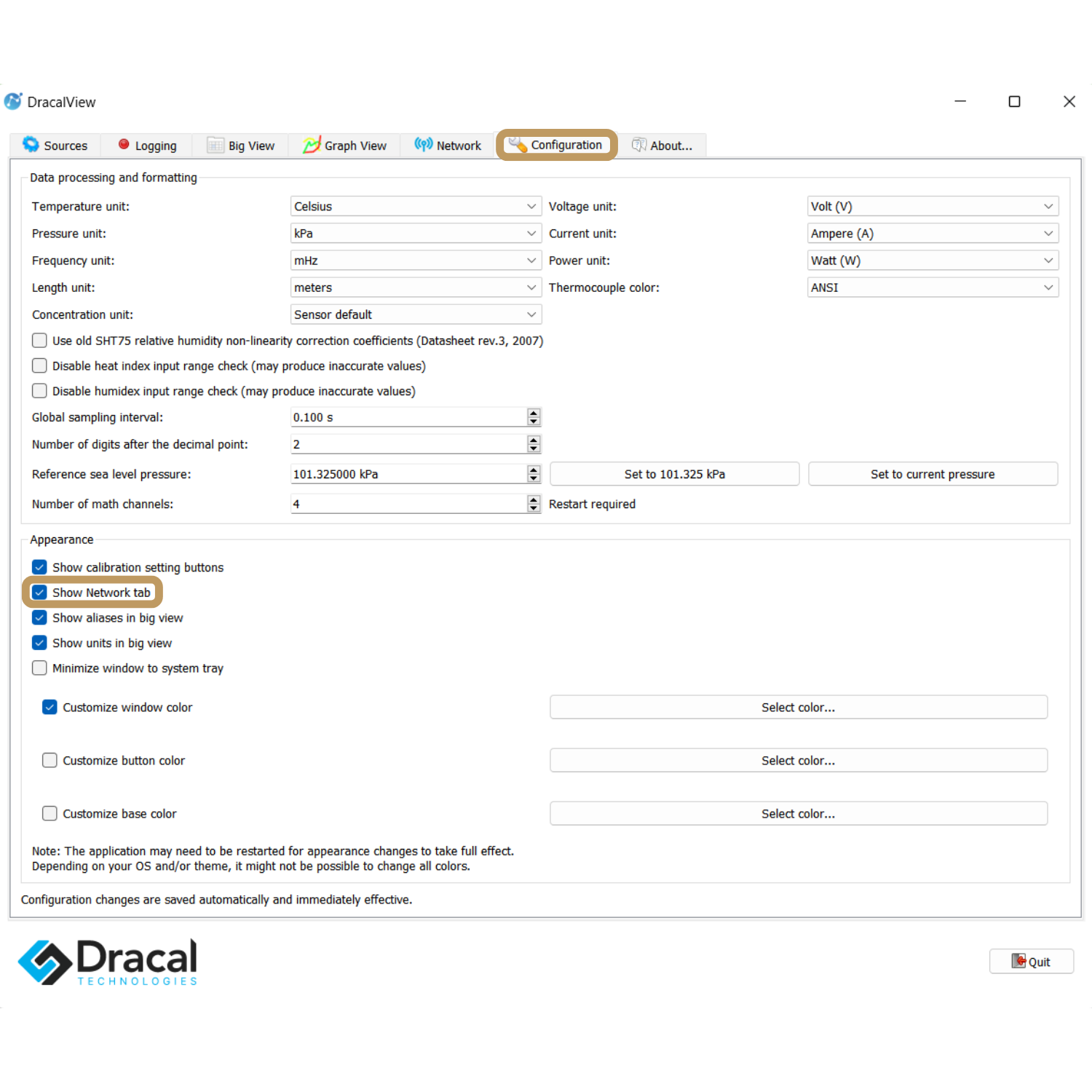

Free Data Acquisition Software
- Supported by our free DracalView data logger software

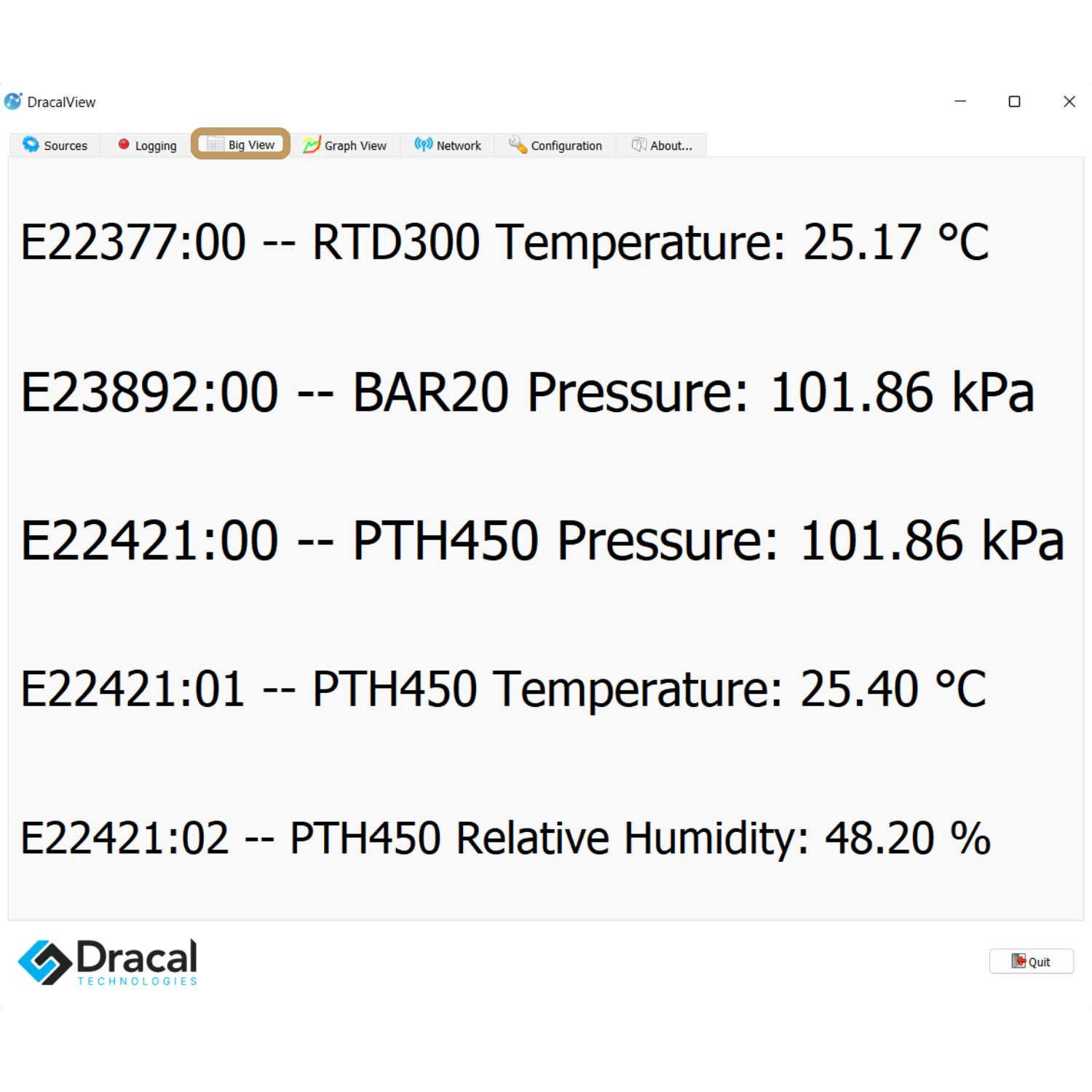

- On-screen graphs and real-time data recording
- Works on Windows (Win7/8/10/11 64&32-bit), Mac OS X, and Linux
- Configurable recording format (°C, °F, K...), a minimum interval of one second
- Supports the simultaneous use of an unlimited number of Dracal sensors
- Command-line sensor query tools for SensGate are also available
- We offer code examples in several languages
- You can easily integrate data into your own software via a REST API
- Compatible with LabView (See the guide)
Dimensions
Units: Inch [mm]
Front

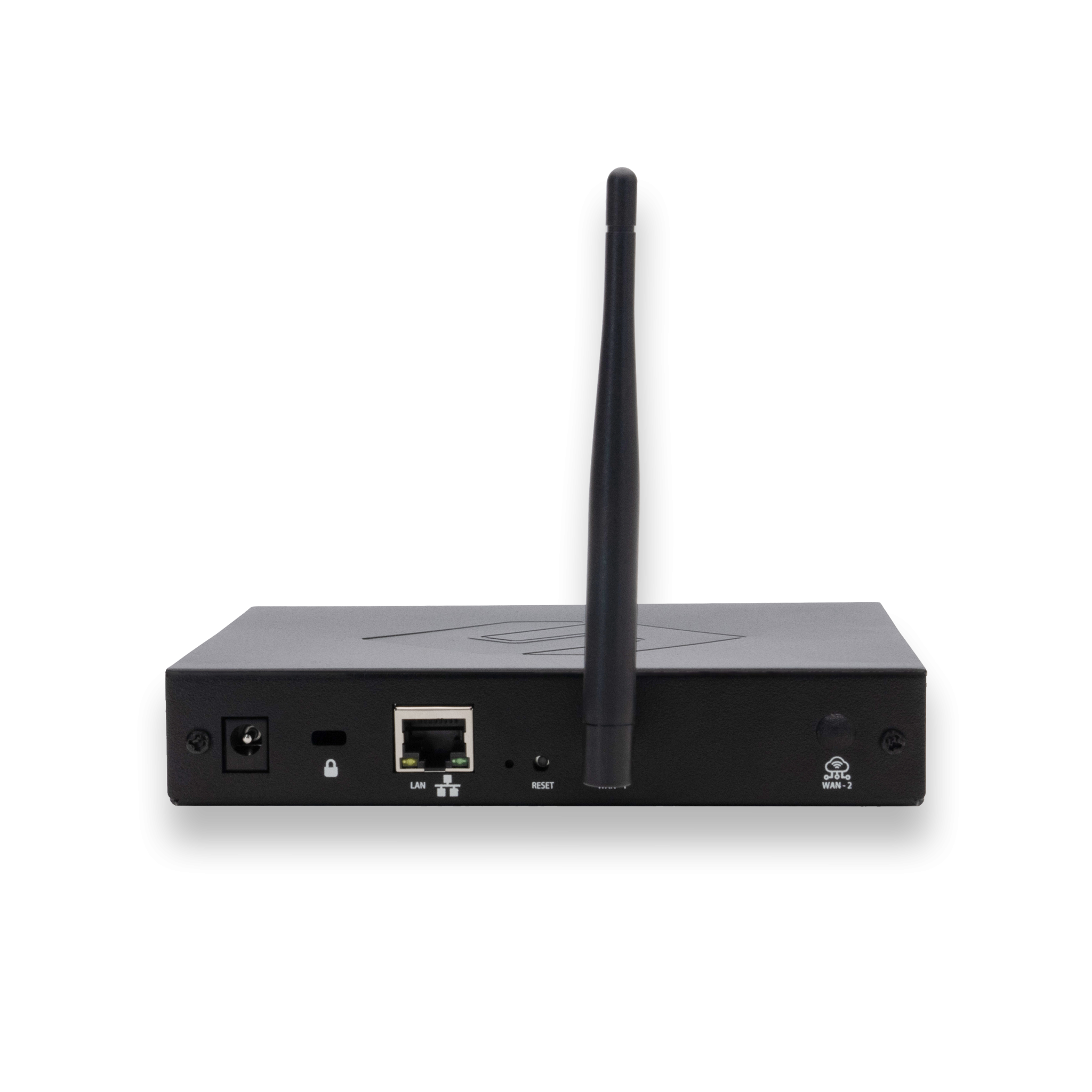

Back
Units: Inch [mm]
In use

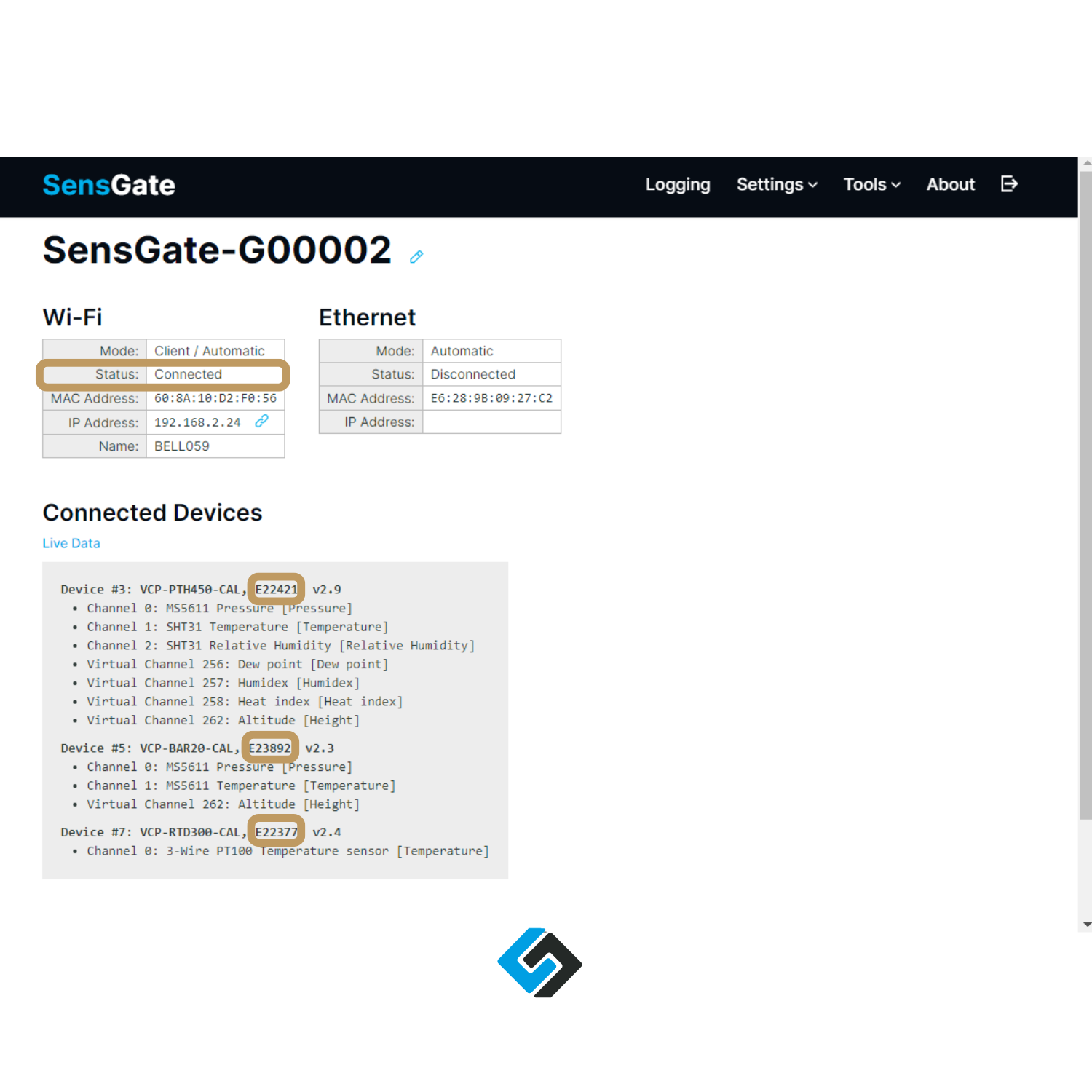

On-board view of the sensors connected to a SensGate

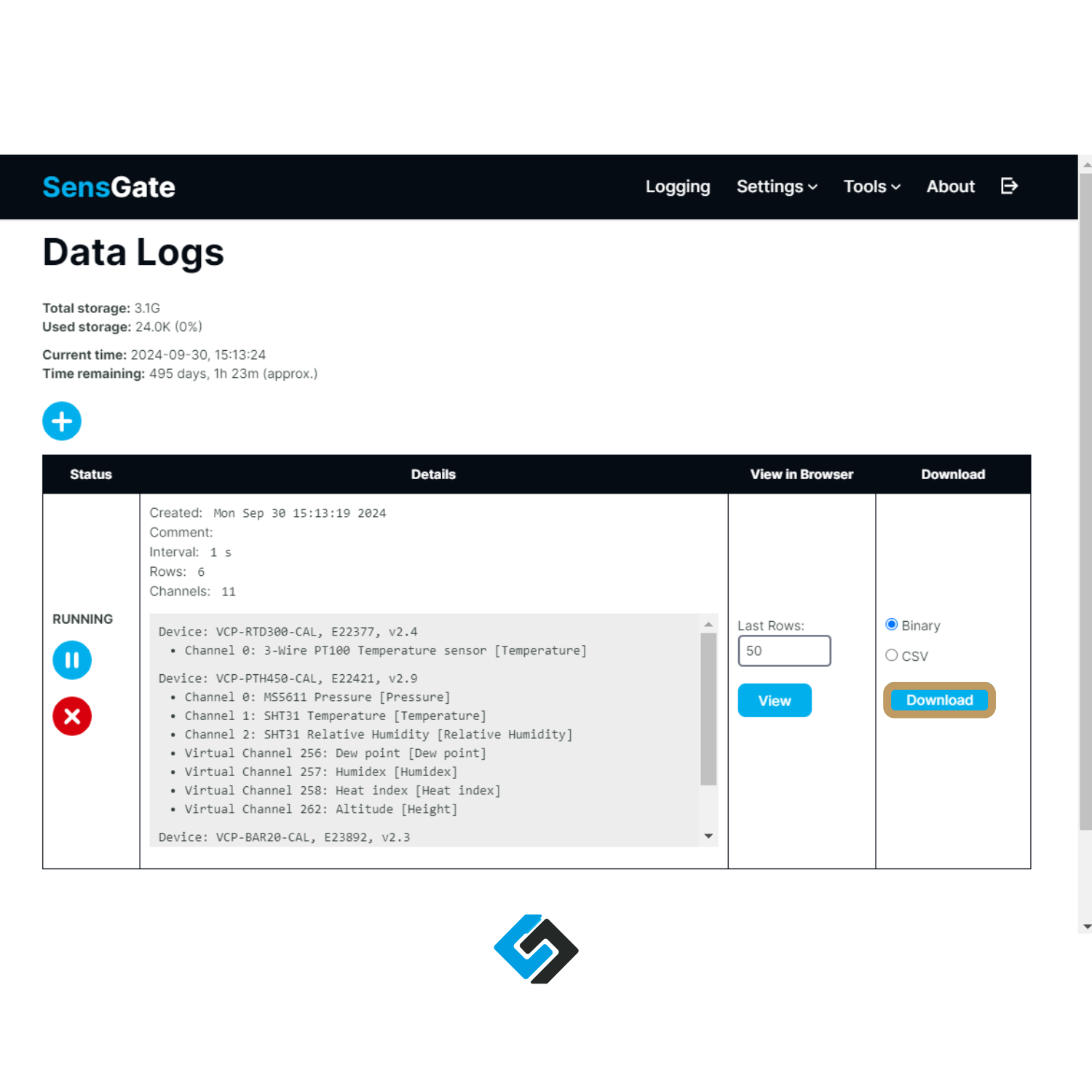

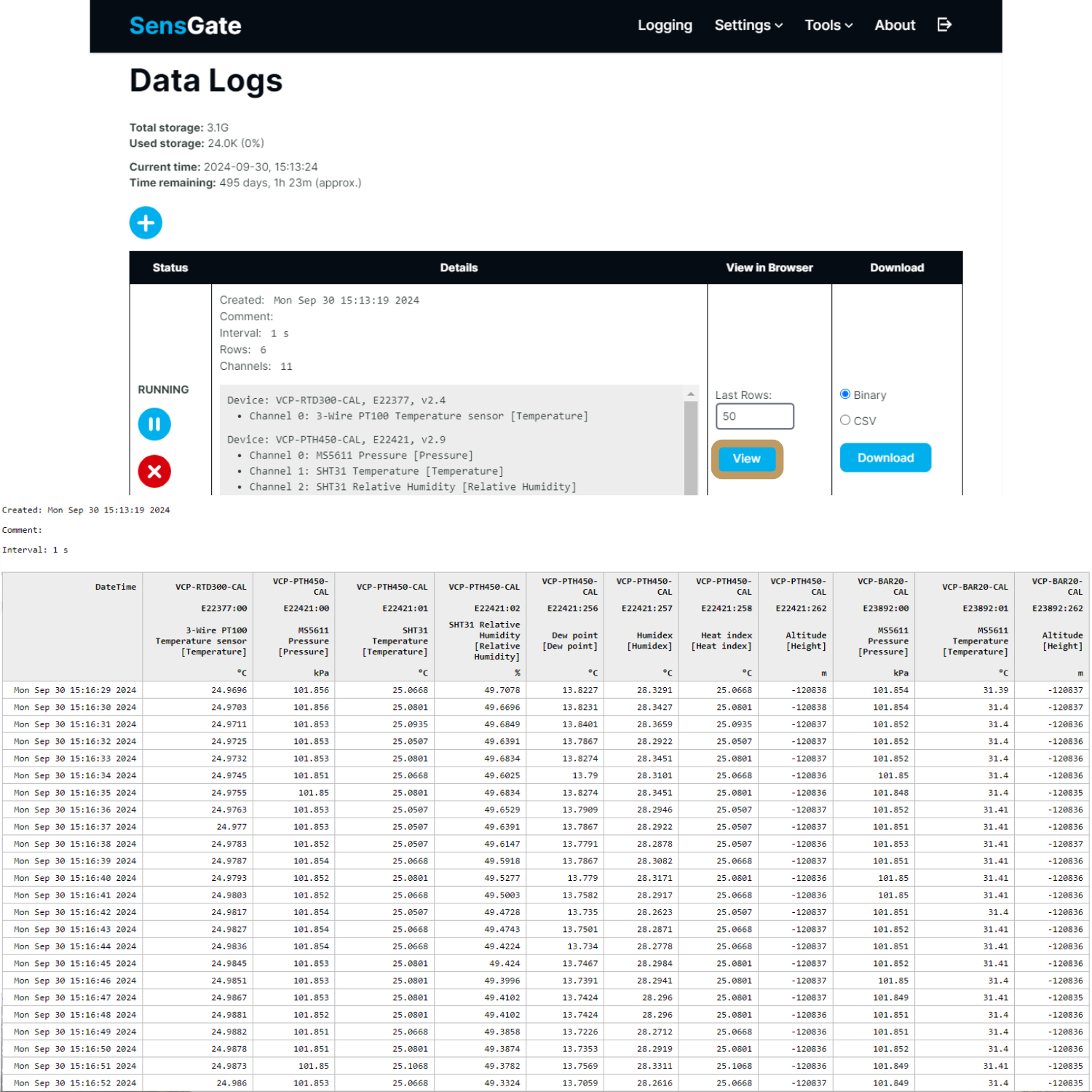

On-board view of a real-time log file on a SensGate
Do you have STEP/CAD files of your instruments?
You can find them on each instrument page under the Datasheets tab if available.
Are your sensors battery-powered?
No, they are not. They are powered via the USB plug; therefore, they must be plugged in to transmit data.
How do I request a quote?
We have created the easiest possible quote request system for you.
1. Create an account and log in.
2. Then do whatever you would do while shopping, then click on the shopping cart in the top right.
3. In your cart, click on “Switch to quote”, then at the bottom of the page “Proceed to quote”. You will not be asked for any payment information.
You will then receive a quote by email, which you can accept and pay within 30 days.
What are the advantages of choosing a calibratable instrument (-CAL option)?
The devices with the 3-point calibration mechanism have a longer lifetime as it is possible to compensate for the natural drift of the measurements. The cost/lifetime ratio is thus considerably reduced and, just as importantly, this choice is environmental friendly.
These devices can be easily calibrated and certified by external resources (including our ISO17025 certified partner laboratory) and allow you to synchronize your various devices between them.
What are the advantages of using your USB communicating devices over other technologies?
| 1. Connection security. | 6. Continuous power supply. |
| 2. Instant access to data. | 7. Low-power supply. |
| 3. Data confidentiality. | 8. Self-sufficiency. |
| 4. Data reliability. | 9. Technology persistence over time. |
| 5. Fast response time. | 10. Universal access. |
Can I use your measurement devices while maintaining my current software infrastructure?
Yes, you own your data. To integrate your data, you can either use our CLI (command line interface) for which we have plenty of code examples or for more advanced users, by choosing the VCP (Virtual COM Port) option when selecting your product.
How many devices can be simultaneously managed by your software tools?
Unlimited number of similar and different devices, provided your system supports the load.
