PTH200 - Dracal USB temperature, relative humidity and atmospheric pressure sensor - Back View - Unique Serial Number PTH200 - Dracal USB temperature, relative humidity and atmospheric pressure sensor - Front view with USB Plug
Learn more

PTH200

USB Temperature, Relative Humidity and Atmospheric Pressure Sensor
Typical operating range and precision
Temperature -40°C to 70°C ±0.3°C
Relative humidity 0 %RH to 100 %RH ±2.0 %RH
Atmospheric pressure 70 kPa to 110 kPa ±0.15 kPa (at 25 °C)
70 kPa to 110 kPa ±0.18 kPa (from 10 to 40°C)
45 kPa to 110 kPa ±0.20 kPa (from 0 to 40°C)

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificate
  • RoHS 3 compliant
Dracal_PTH420_Back_Unique_Serial_Number PTH420: USB-connected precision (±0.1°C/±1.5 %RH) temperature, relative humidity and atmospheric pressure measuring instrument (sensor) - Front view with cable
Learn more

PTH420

Precision USB Temperature, Relative Humidity and Atmospheric Pressure Sensor
Typical operating range and precision
Temperature -40°C to 70°C ±0.1°C
Relative humidity 0 %RH to 100 %RH ±1.5 %RH
Atmospheric pressure 70 kPa to 110 kPa ±0.15 kPa (at 25 °C)
70 kPa to 110 kPa ±0.18 kPa (from 10 to 40°C)
45 kPa to 110 kPa ±0.20 kPa (from 0 to 40°C)

Protection

  • 2-layer filter
  • Efficiency: >99.99% of particles as small as 200 nm

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

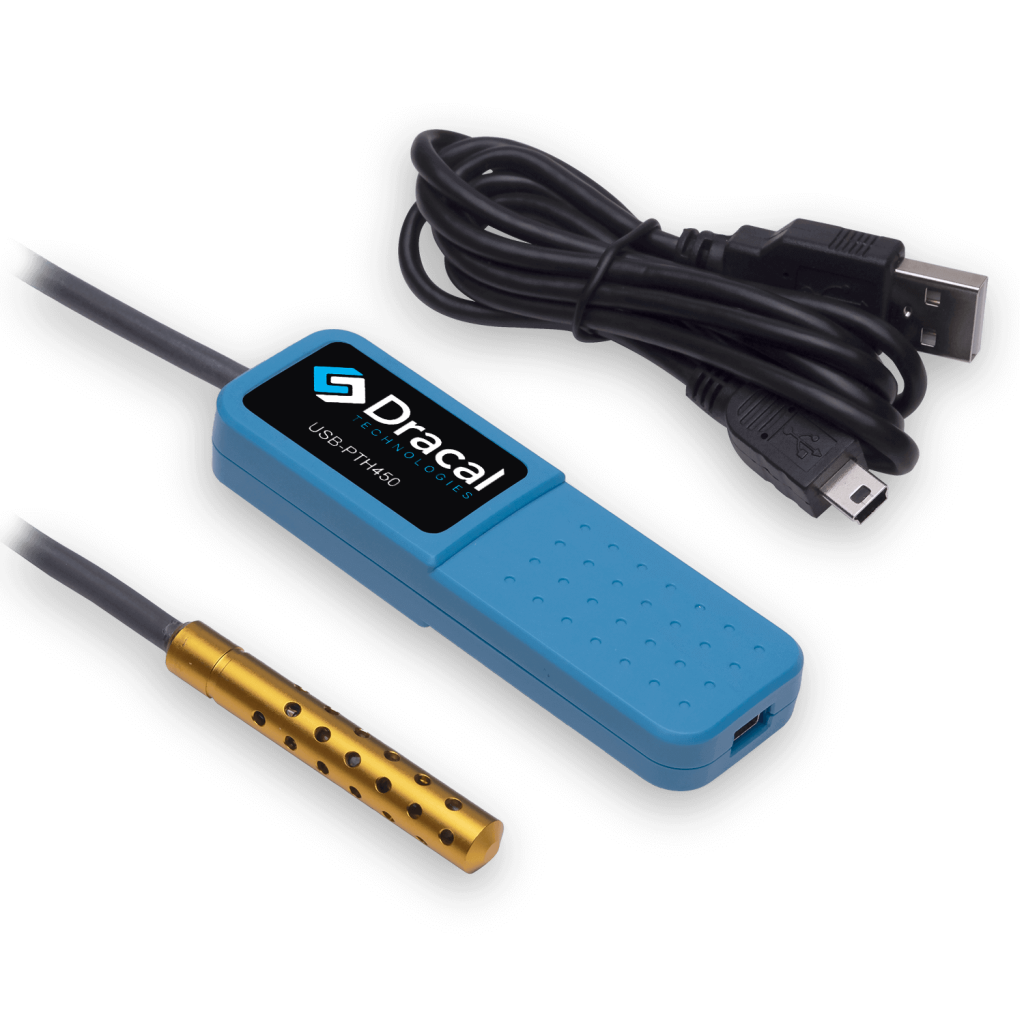

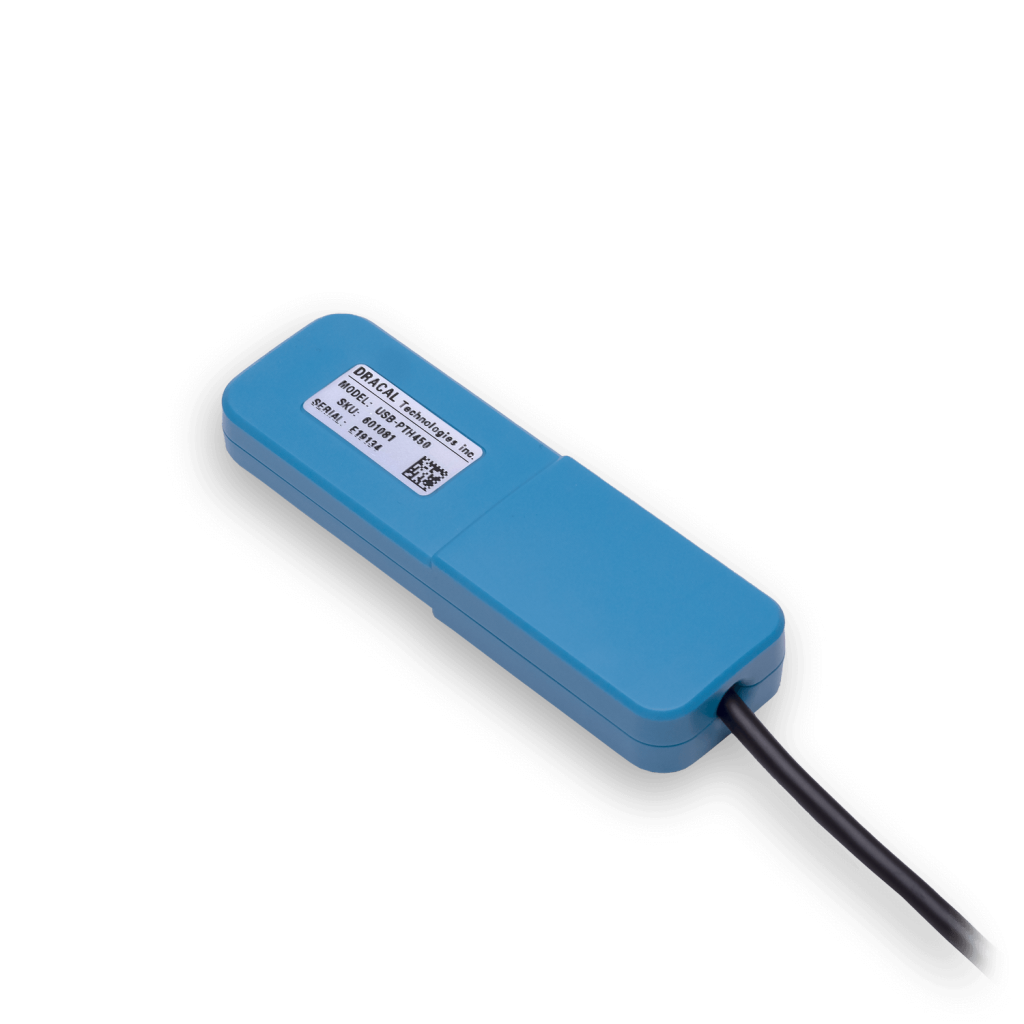

PTH450: Dracal USB temperature, relative humidity and atmospheric pressure sensor - Back View - Unique Serial Number PTH450: Improved accuracy (±0.1°C/±1.5 %RH) temperature, relative humidity and atmospheric pressure measuring instrument with USB connection, particle filter and aluminum tip for harsh environments.
Learn more

PTH450

Robust, High Precision USB Temperature, Humidity and Air Pressure Sensor
Typical operating range and precision
Temperature -40°C to 125°C ±0.1°C
Relative humidity 0 %RH to 100 %RH ±1.5 %RH
Atmospheric pressure 70 kPa to 110 kPa ±0.15 kPa (at 25 °C)
70 kPa to 110 kPa ±0.18 kPa (from 10 to 40°C)
45 kPa to 110 kPa ±0.20 kPa (from 0 to 40°C)

Protection

  • Internal filter efficiency: >99.99% of particles as small as 200 nm
  • Compact aluminium external protection

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode option
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

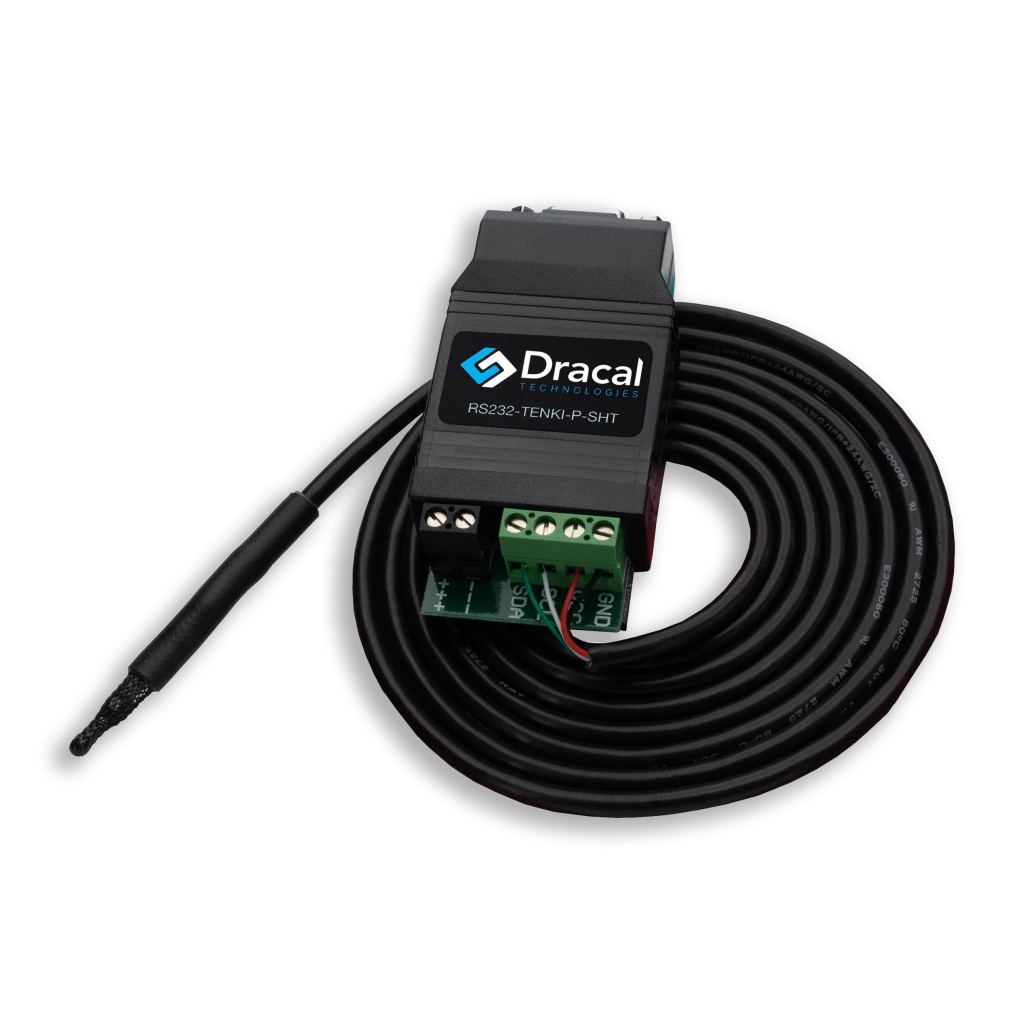

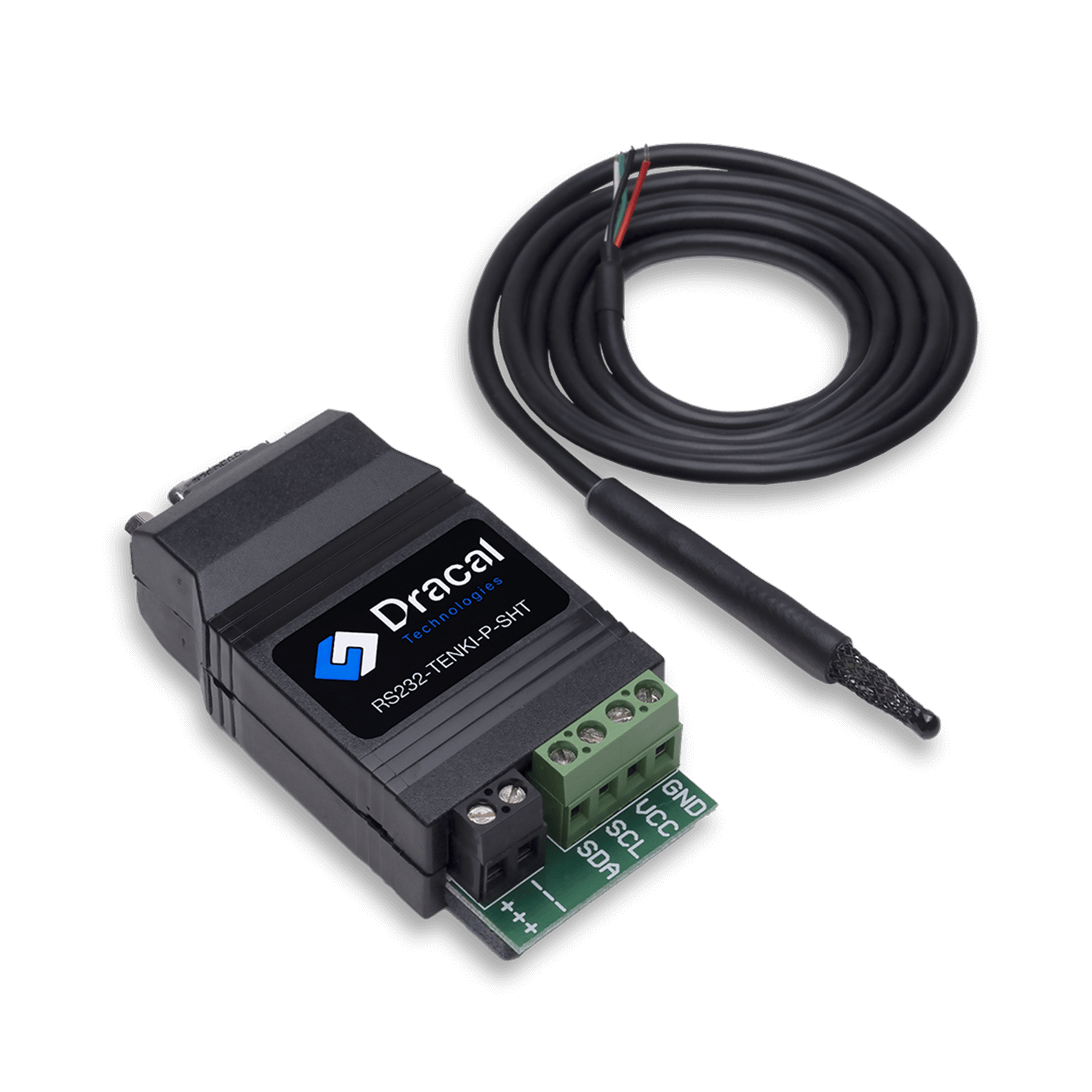

RS232-Tenki: Dracal RS232 barometer - with connected I2C-TRH320 temperature and relative humidity probe RS232-Tenki: Dracal RS232 barometer
Learn more

RS232-Tenki

RS232 Barometer

Pressure
Range: 15 to 115 kPa
Accuracy: 2% MV Max from 0° to 85°C
Resolution: ±0.1 kPa

Communication protocol: RS-232

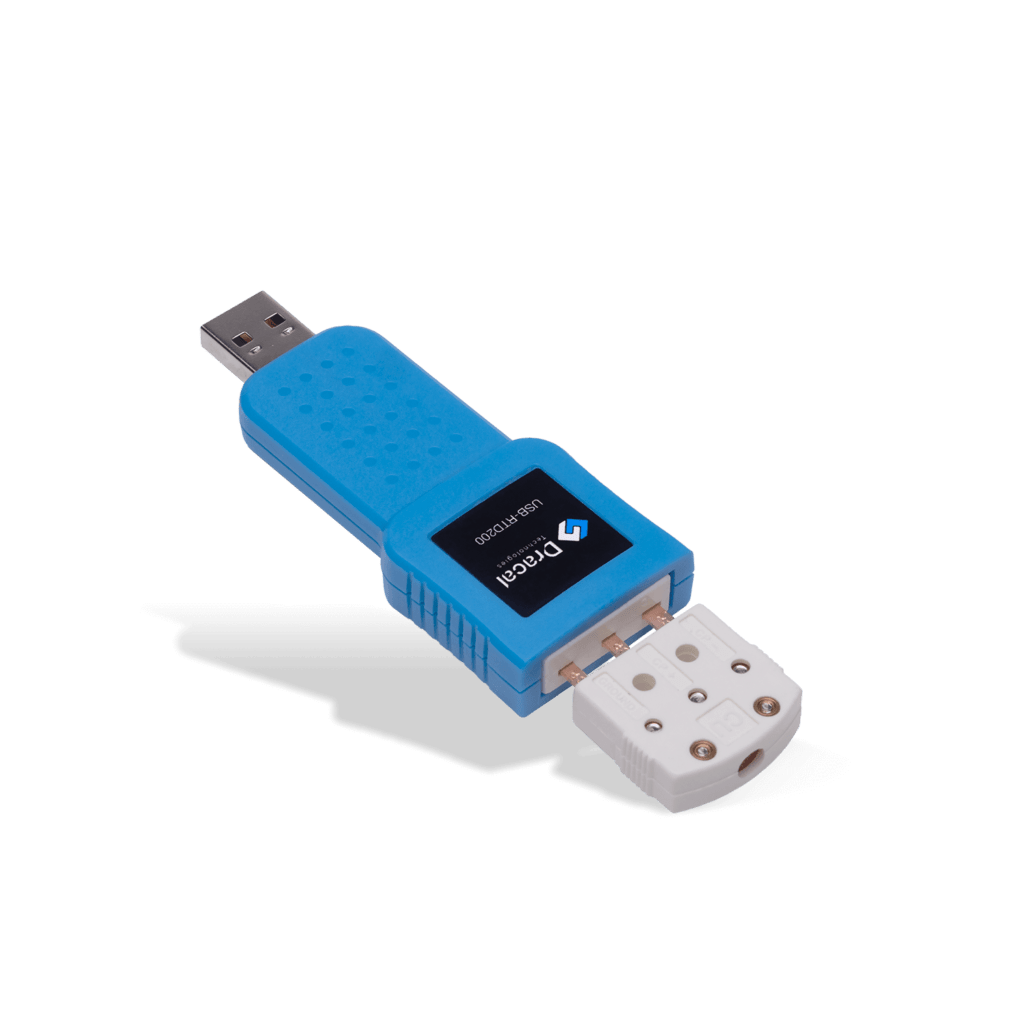

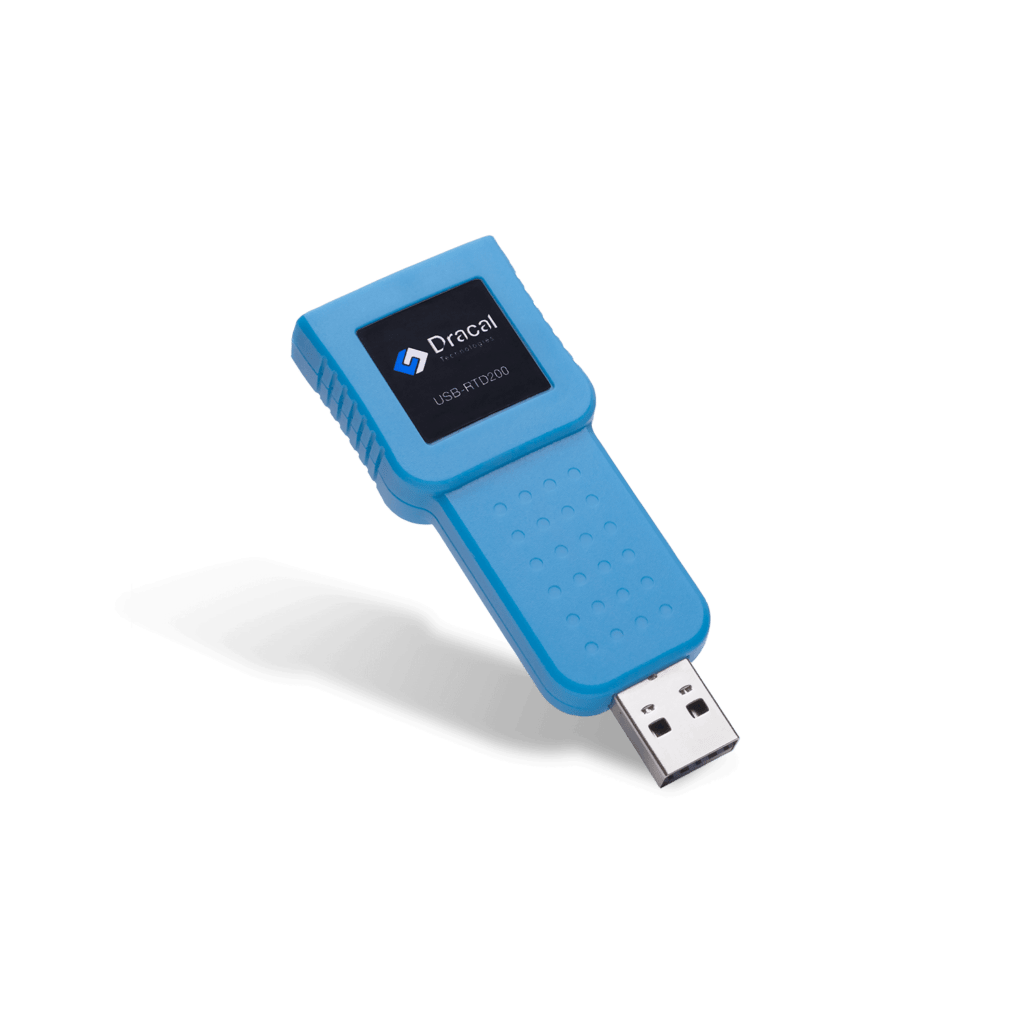

RTD200: USB adapter for any Pt-100 RTD probe for temperature measurement - With Pt100 probe RTD200: USB adapter for any Pt-100 RTD probe for temperature measurement - Front view
Learn more

RTD200

2/3-wire RTD Probe to USB Adapter
Supports 2 and 3 wire PT100 RTD sensors
Temperature Operating range: -200°C to +800°C
Accuracy: ±0.06°C or better (at 25°C)
Resolution: ±0.02°C (typical)

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant
RTD223 RTD to USB adapter with connected RTD Sillicon Sensor - zoomed
Learn more

RTD223

2/3-wire RTD Probe to USB Adapter
Supports 2 and 3 wire PT100 RTD sensors
Temperature Operating range: -200°C to +800°C
Accuracy: ±0.06°C or better (at 25°C)
Resolution: ±0.02°C (typical)

Supports 2 and 3 wire Pt100 RTD sensors
Temperature calculation using the DIN 43760 coefficients

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

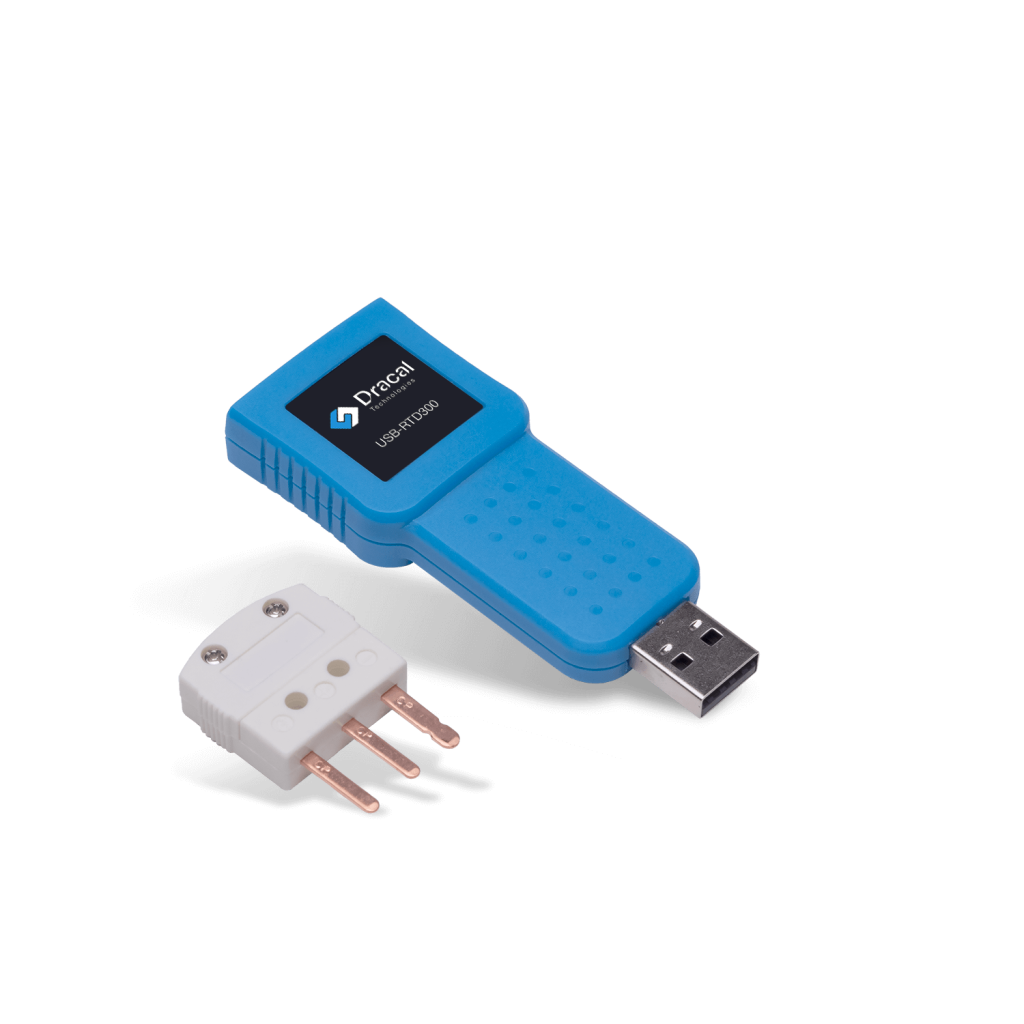

RTD300: USB adapter for any Pt100 RTD probe for temperature measurement - With Pt100 probe RTD300: USB adapter for any Pt-100 RTD probe for temperature measurement - Front view - With connector
Learn more

RTD300

Enhanced Precision 2/3-wire RTD Probe to USB Adapter
Supports 2 and 3 wire PT100 RTD sensors
Temperature Operating range: -200°C to +800°C
Accuracy: ±0.005°C (at 25°C)
Accuracy: ±0.018°C (0°C to 50°C)
Resolution: ±0.0001°C (typical)
Noise level: ±0.0015°C ( at 25°C)

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant
Learn more

SensGate

Remote Wi-Fi/Ethernet Data Logging Station for our USB sensors
Main functionnalities
Less than 3 minutes to get up-and-running
Onboard real-time Data Visualisation and Data Logging
Seamless compatibility with DracalView (DAQ) based on Wi-Fi/Ethernet data transmission
Connect up to 99 USB Dracal sensors
Secure access and authentication
Power-over-Ethernet (PoE) option
USB over Ethernet and WI-FI

Additional information

  • Free data acquisition toolkit, including DracalView DAQ system
  • Secure Firmware updates over-the-air (FOTA)
  • Access point (AP) function to create a private network supporting up to 7 connected devices
  • Connects via USB, Ethernet and Wi-Fi

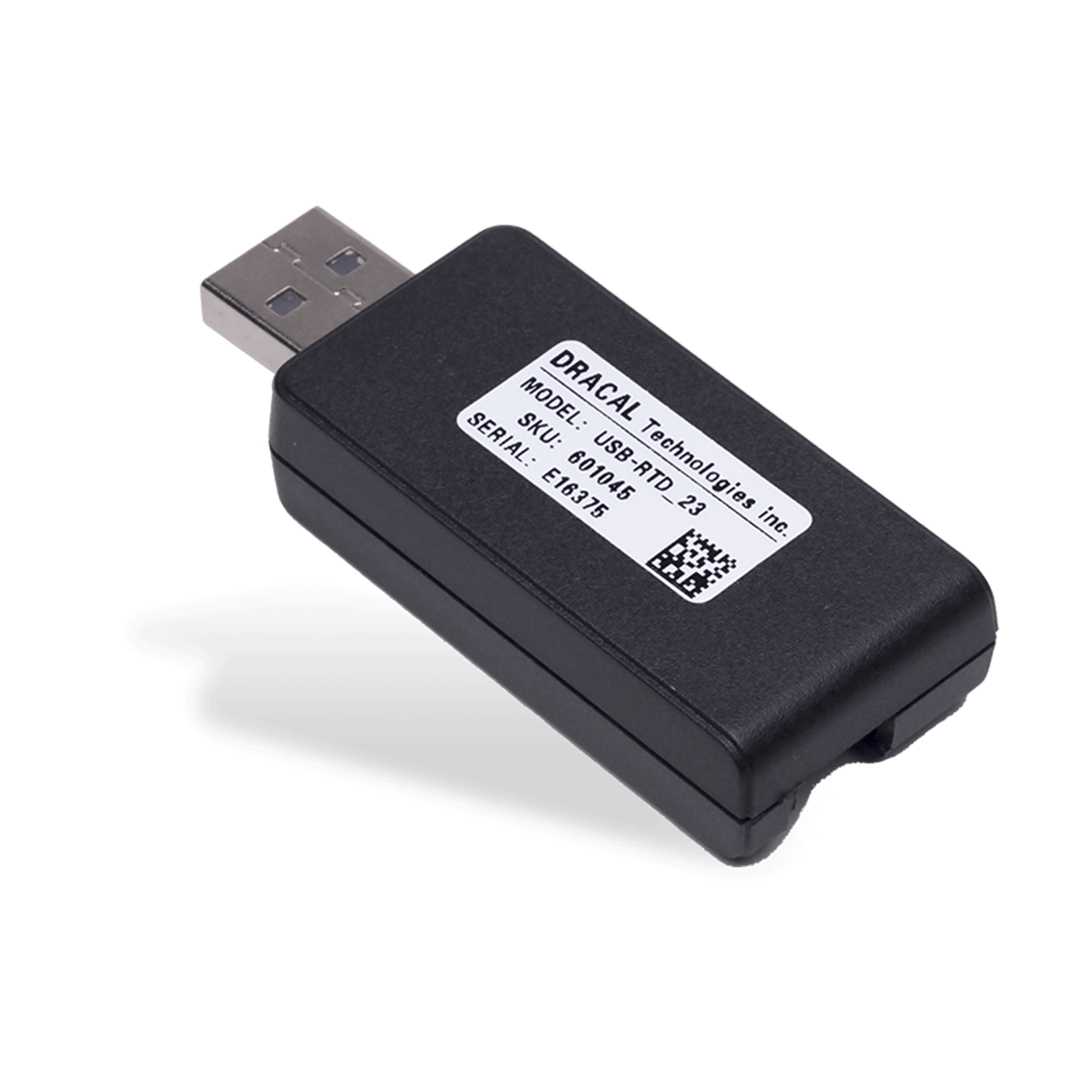

RTD_23: USB adapter for any Pt-100 RTD probe for temperature measurement - Back view - Unique Serial Number RTD_23: USB adapter for any Pt-100 RTD probe for temperature measurement - Front view
Learn more

RTD_23

2/3-wire RTD Probe to USB Connector
Temperature
Operating range -200°C to +800°C
Accuracy ±0.06°C (at 25°C)
Resolution ±0.02°C (typical)

Supports 2 and 3 wire Pt100 RTD sensors
Temperature calculation using the DIN 43760 coefficients

Additional information

  • Free data acquisition toolkit
  • Traceable to the CNRC certificates
  • RoHS 3 compliant

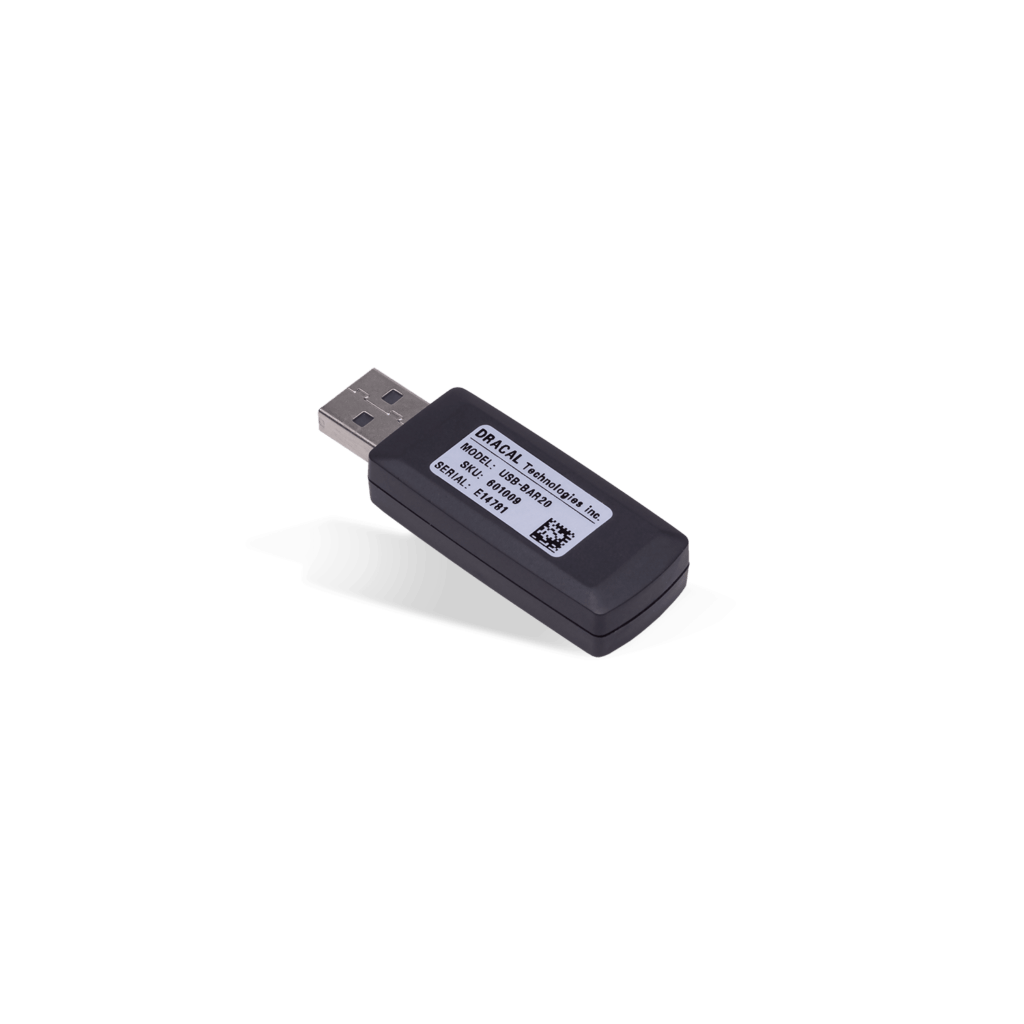

BAR20 - Dracal USB-connected atmospheric pressure (barometer) sensor - Back view - Unique Serial Number BAR20 - Dracal USB-connected atmospheric pressure (barometer) sensor - Front view
Learn more

BAR20

USB Precision Barometer
Typical operating range and precision
Operating range 1 à 120 kPa (10 à 1200 mbar)
Accuracy ±0.15 kPa à 25°C (1.5 mbar)
Resolution 0.0065 kPa (0.065 mbar)

Internal temperature readings for compensation purposes

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

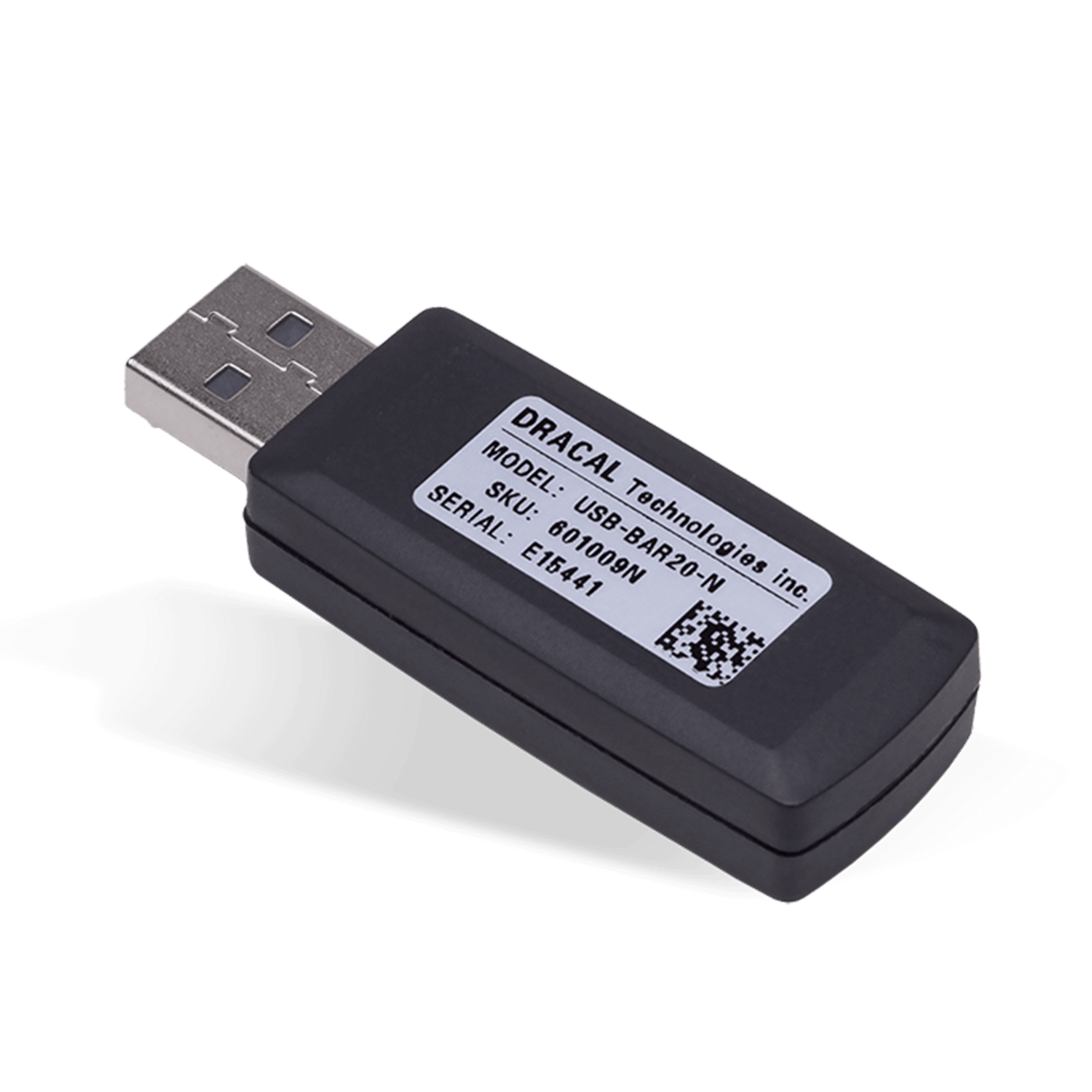

BAR20-N - Dracal USB-connected atmospheric pressure (barometer) sensor with NMEA output - Back view - Unique Serial Number BAR20-N - Dracal USB-connected atmospheric pressure (barometer) sensor with NMEA output - Front view
Learn more

BAR20-N

Precision Barometer with NMEA Output
Atmospheric pressure
Operating range: 1 to 120 kPa (10 to 1200 mbar)
Accuracy: ±0.15 kPa at 25°C (1.5 mbar)

Communication: USB-connected Virtual COM port
Sentence output formats: MDA and XDR NMEA

Additional information

Not supported by our data integration and acquisition tools

RoHS 3 compliant
TRH450: Improved accuracy (±0.1°C/±1.5 %RH) temperature and relative humidity USB sensor, particle filter and aluminum tip for harsh environments - Front view with USB plug TRH450: Improved accuracy (±0.1°C/±1.5 %RH) temperature and relative humidity USB sensor, particle filter and aluminum tip for harsh environments - Front View with cable.
Learn more

TRH450

Robust, High Precision USB Temperature and Humidity Sensor
Typical operating range and precision
Temperature -40°C to 125°C ±0.1°C
Relative humidity 0 to 100 %RH ±1.5 %RH

Protection

  • Internal filter efficiency: >99.99% of particles as small as 200 nm
  • Compact aluminium external protection

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant
TRH420: Improved accuracy (±0.1°C/±1.5 %RH) temperature and relative humidity USB sensor - Front View with cable. TRH420: Improved accuracy (±0.1°C/±1.5 %RH) temperature and relative humidity USB sensor - Front View with USB plug
Learn more

TRH420

Precision USB Temperature and Relative Humidity Sensor
Typical operating range and precision
Temperature -40°C to 70°C ±0.1°C
Relative humidity 0 to 100 %RH ±1.5 %RH

Protection

  • 2-layer filter
  • Efficiency: >99.99% of particles as small as 200 nm

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

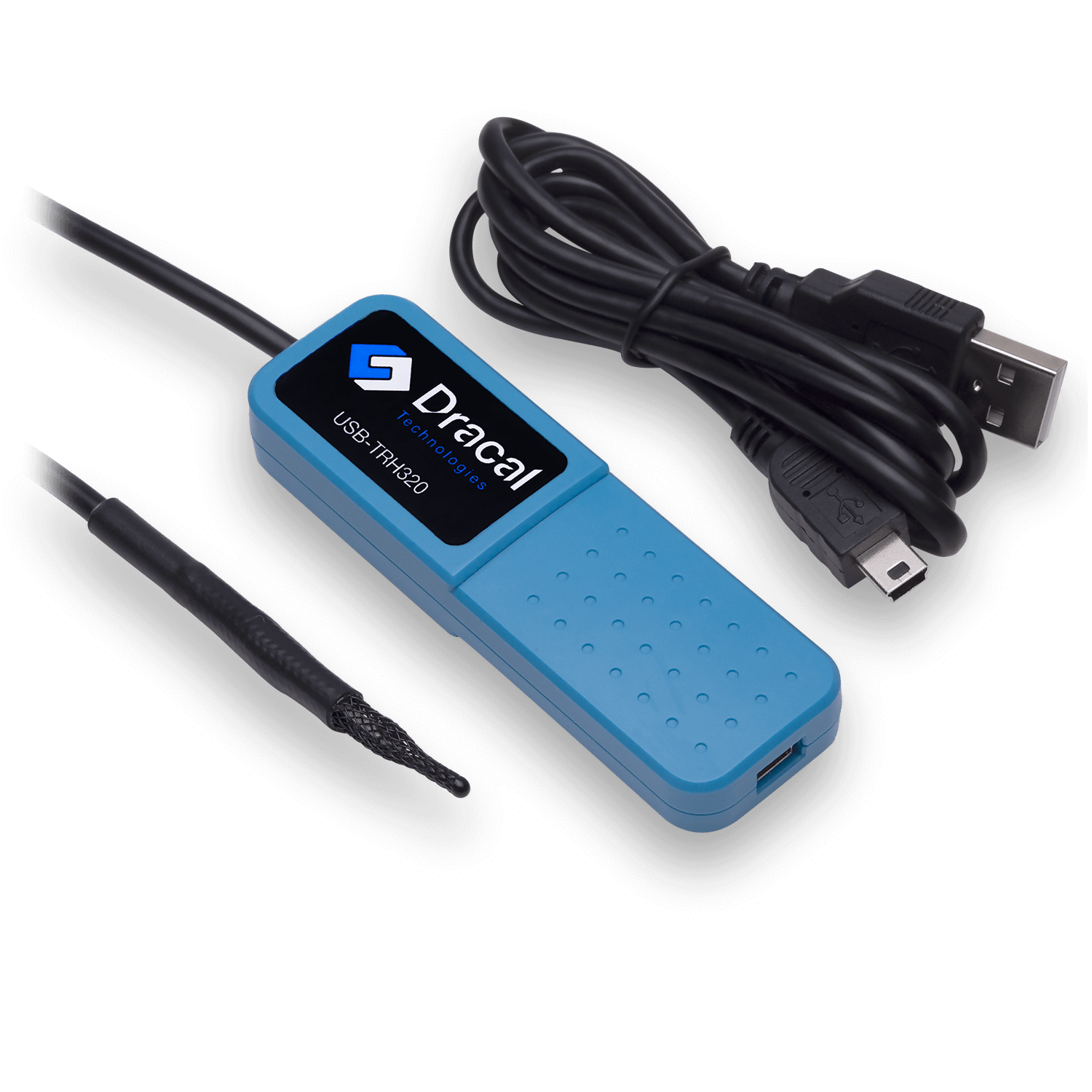

TRH320: Temperature and relative humidity USB sensor - Front view TRH320: Temperature and relative humidity USB sensor - Front View with USB plug
Learn more

TRH320

USB Temperature and Relative Humidity Sensor
Typical operating range and precision
Temperature -40°C to 70°C ±0.3°C
Relative humidity 0 %RH to 100 %RH ±2.0 %RH

Protection

  • 2-layer filter
  • Efficiency: >99.99% of particles as small as 200 nm

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant
TRH200: USB Temperature and Relative Humidity Sensor With Exposed End - Zoomed End TRH200: USB Temperature and Relative Humidity Sensor With Exposed End - USB Plug and End
Learn more

TRH200

USB Temperature and Relative Humidity Sensor With Exposed End
Typical operating range and precision
Temperature -40°C to 70°C ±0.1°C
Relative humidity 0 %RH to 100 %RH ±2.0 %RH

Protection

  • Exposed sensor

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificate
  • RoHS 3 compliant

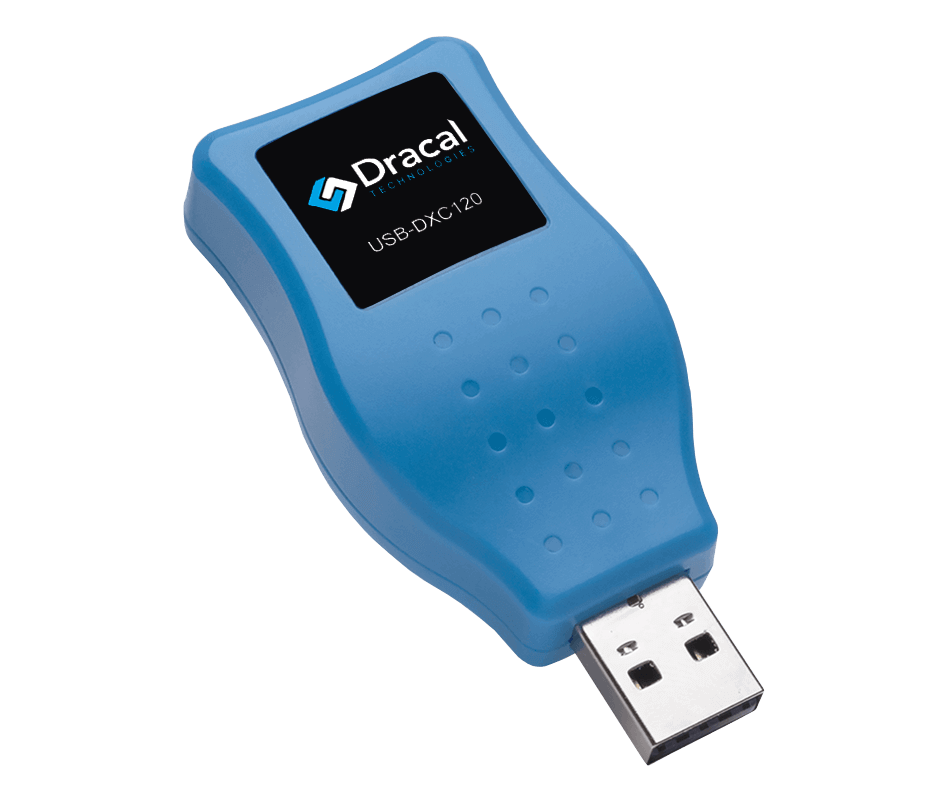

DXC120: Dracal USB connected gas sensor for indoor level carbon dioxide (CO2) detection - Side view DXC120: Dracal USB connected gas sensor for indoor level carbon dioxide (CO2) detection - Front view
Learn more

DXC120

Small Calibratable USB Carbon Dioxyde (CO2) Sensor
Typical operating range and precision
Carbon dioxide (CO2) 400 to 10,000 ppm ± (30 ppm + 3%MV)

Additional information

  • Free data acquisition toolkit
  • Integrated self-calibration mechanism
  • Manual calibration mechanism
  • VCP mode

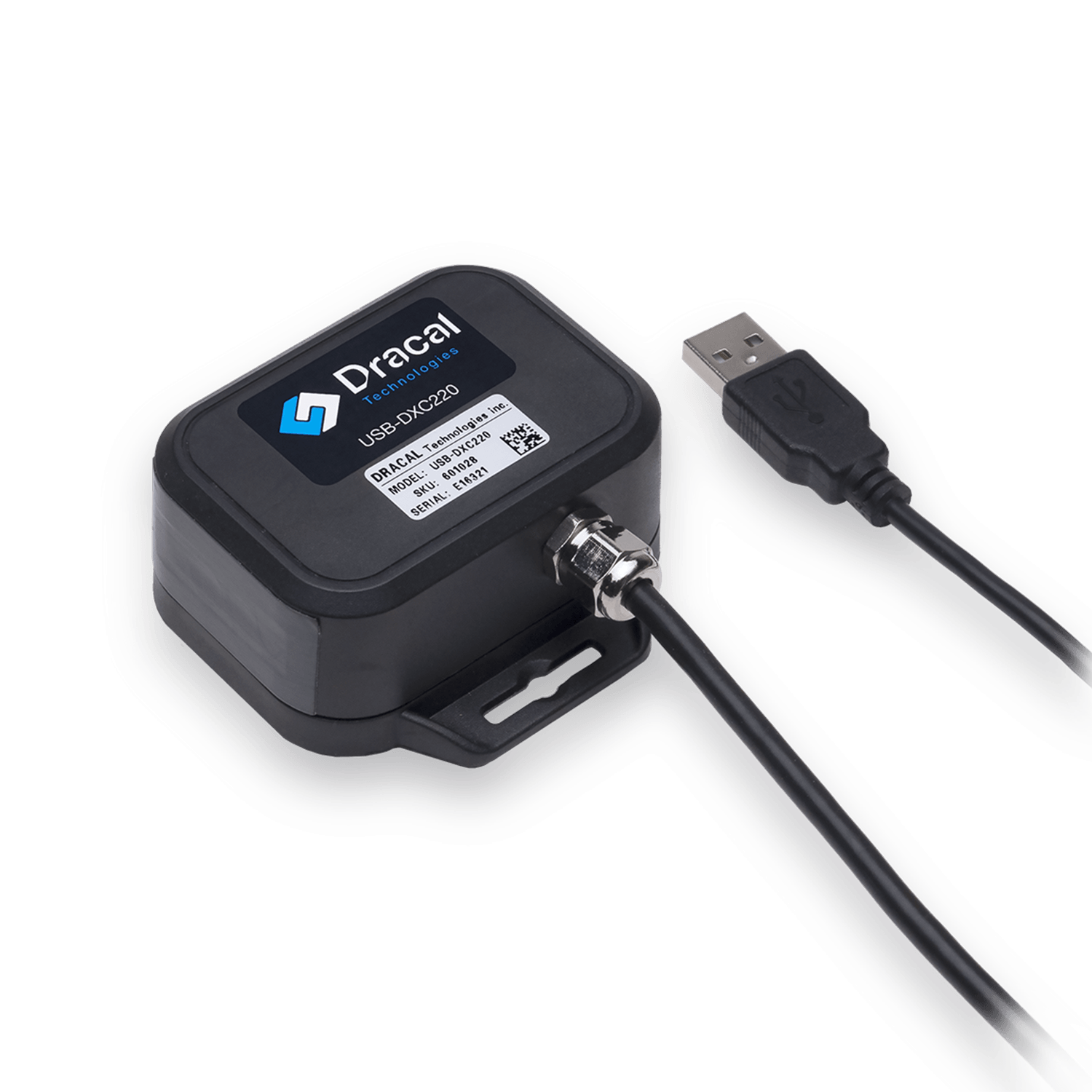

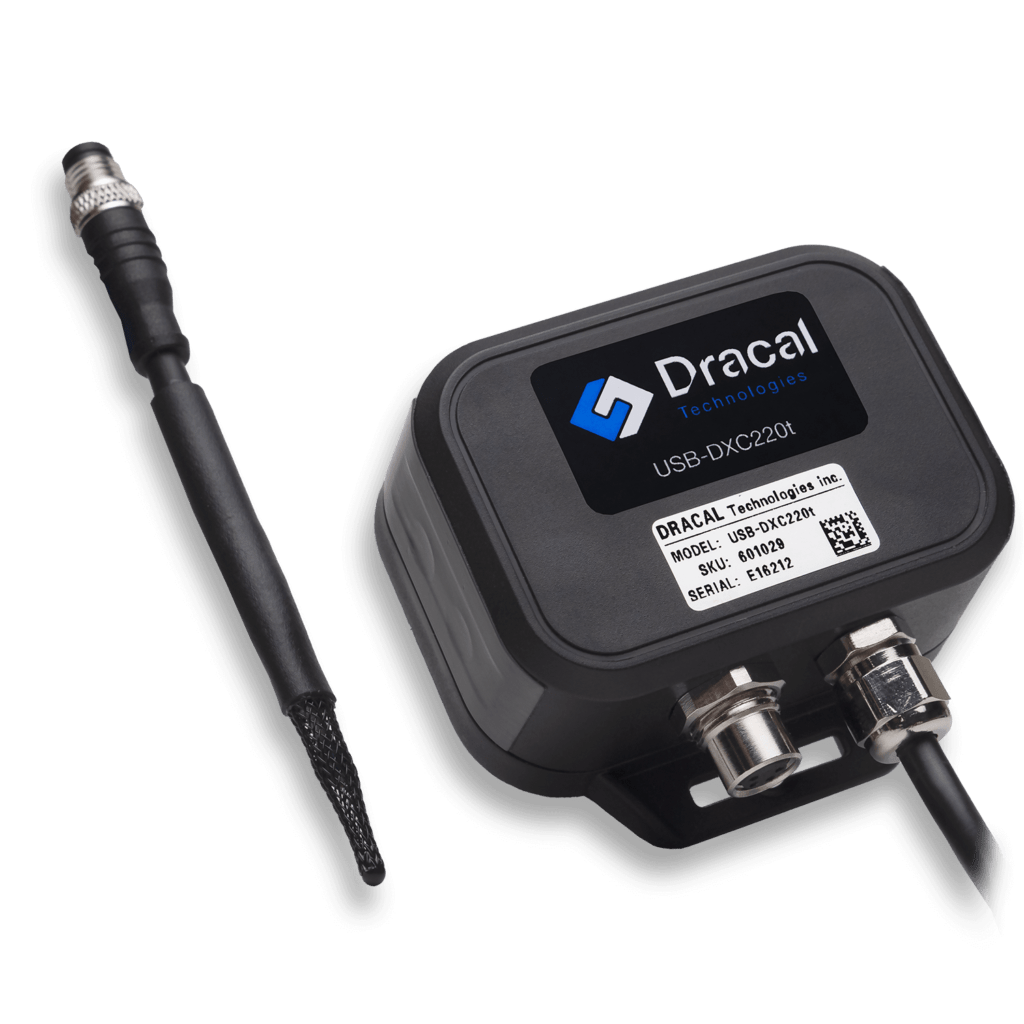

Dracal CO2 reader DXC220 with short temperature and relative humidity probe (USB connector view) Dracal CO2 reader DXC220 (USB connector view)
Learn more

DXC220

USB Carbon Dioxide (CO2) Sensor, 20%
Typical operating range and precision
Carbon dioxide (CO2): 0-20 % ±70 ppm ±5% of reading
Temperature: 0°C to 45°C
Humidity: 0 %RH to 100 %RH
Probe temperature: -40°C to 70°C ±0.3°C
Probe humidity : 0 %RH to 100 %RH ±2.0 %RH

Additional information

  • Free data acquisition toolkit
  • Traceable to the CNRC certificates

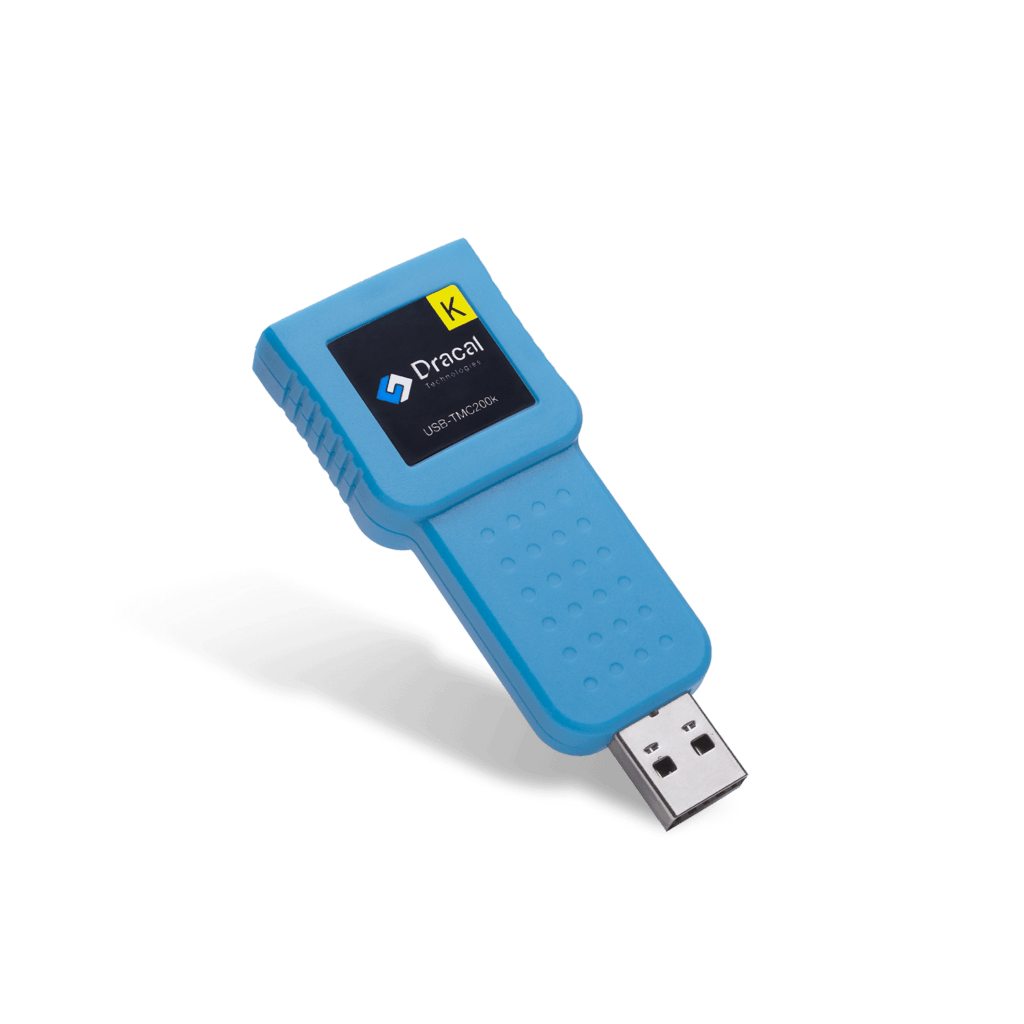

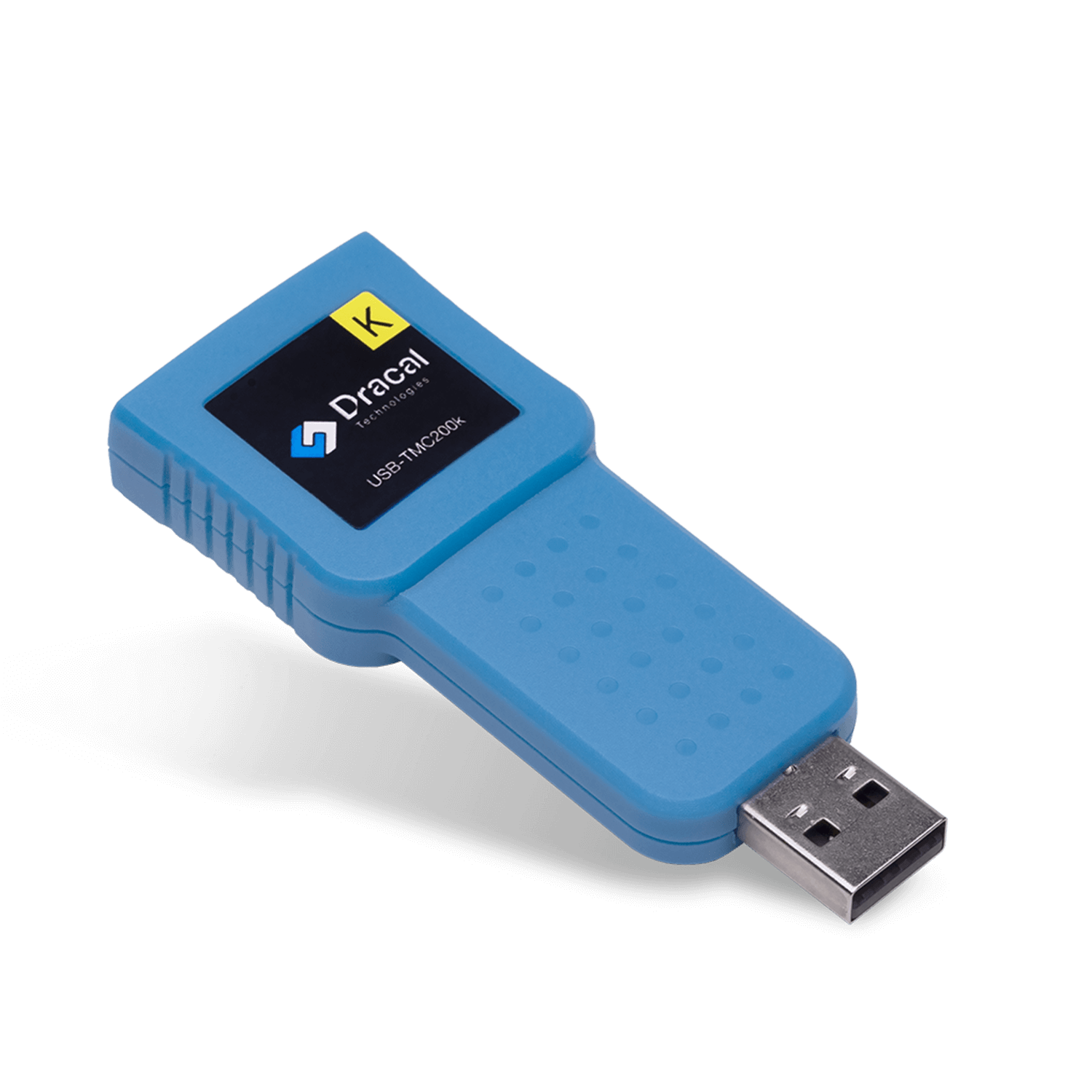

TMC200k: high resolution USB adapter for any type-K thermocouple for temperature measurement - Front view - With connector TMC200k: high resolution USB adapter for any type-K thermocouple for temperature measurement - Front view
Learn more

TMC200k

High-Precision and High-Resolution USB Adapter for Type-K Thermocouples
Typical operating range and precision
Operating range -200°C to 1372°C
Accuracy ±0.5 °C at 25°C, ±1.5°C (25°C to 45°C)
Resolution 5×10-5°C (typical)
  • Built-in cold junction compensation
  • Follows NIST ITS-90 thermocouple temperature correction table
  • Error status code

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

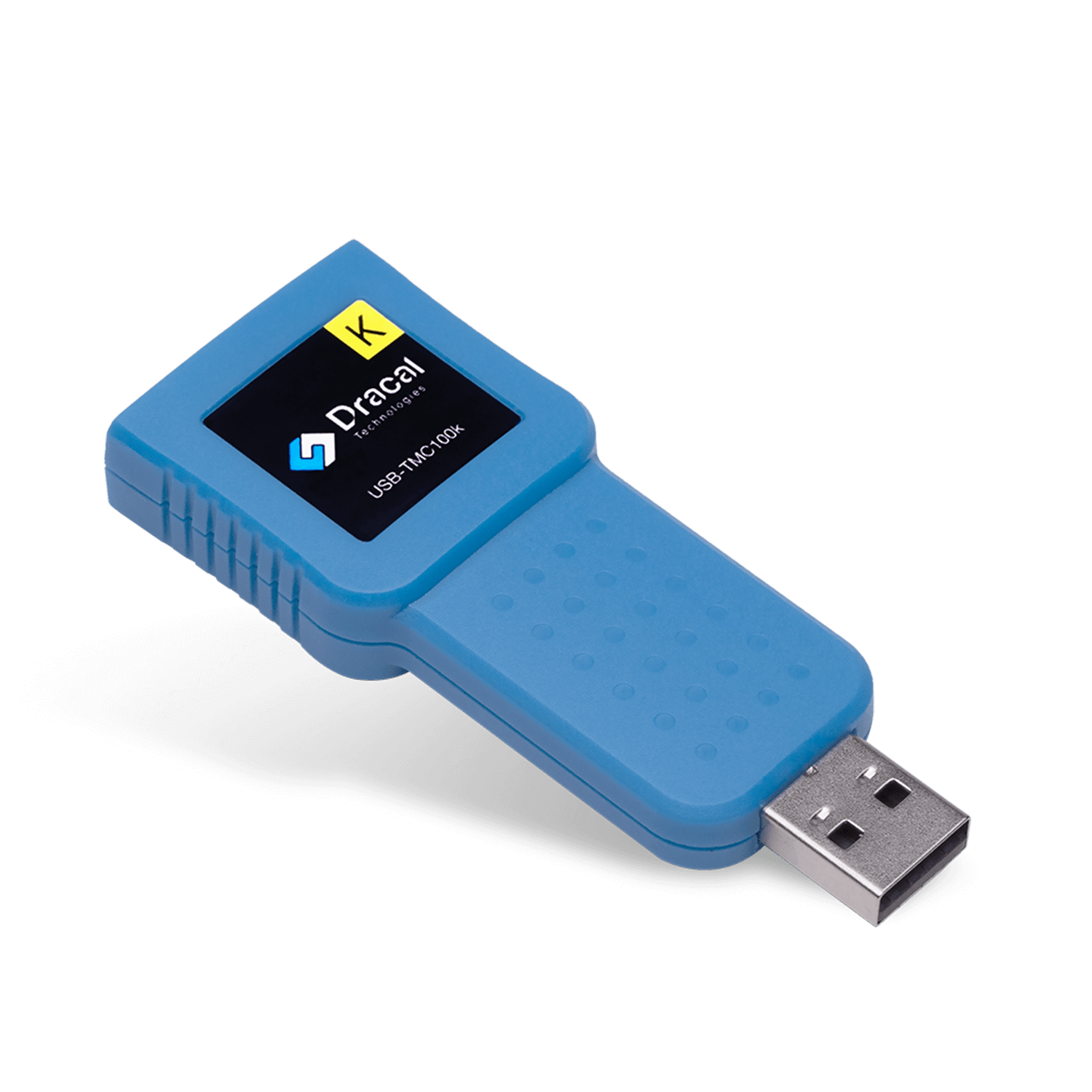

TMC100k: USB adapter for any type-K thermocouple for temperature measurement - Front view - With connector TMC100k: USB adapter for any type-K thermocouple for temperature measurement - Front view
Learn more

TMC100k

USB Adapter for Type-K Thermocouples
Typical operating range and precision
Operating range -200°C to 1372°C
Accuracy ±1.5°C or better
  • Supports type-K thermocouples (2 or 3 pin)
  • Built-in cold junction compensation
  • Follows NIST ITS-90 thermocouple temperature correction table

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

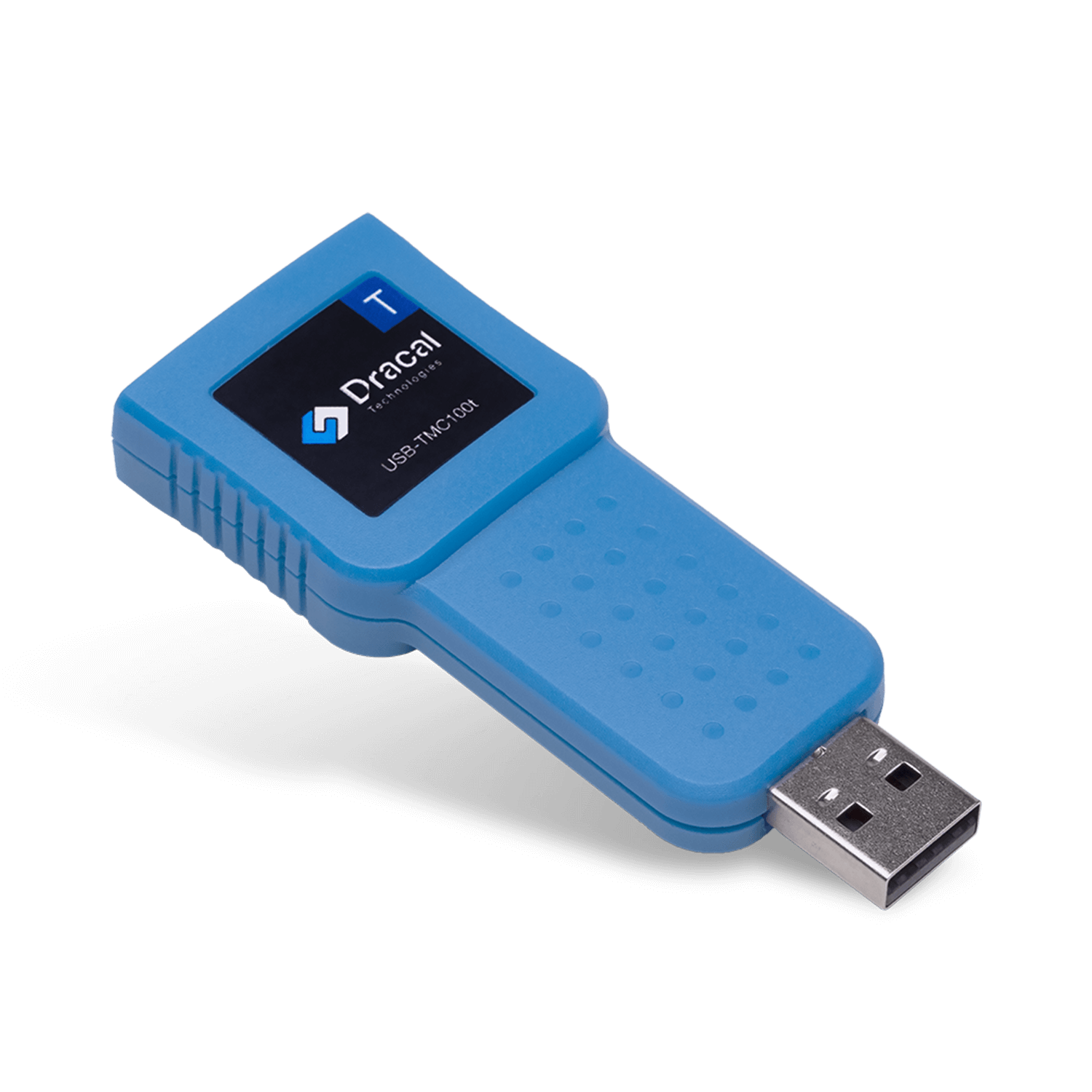

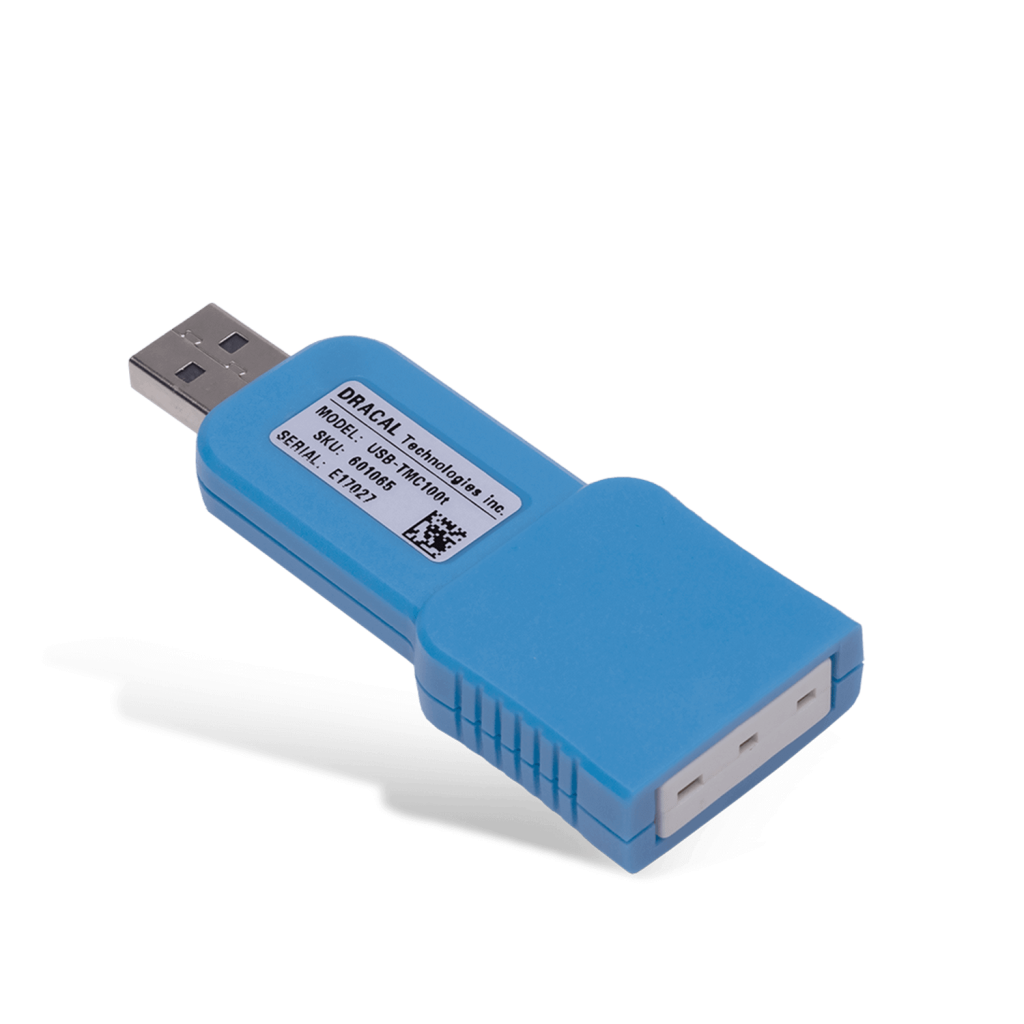

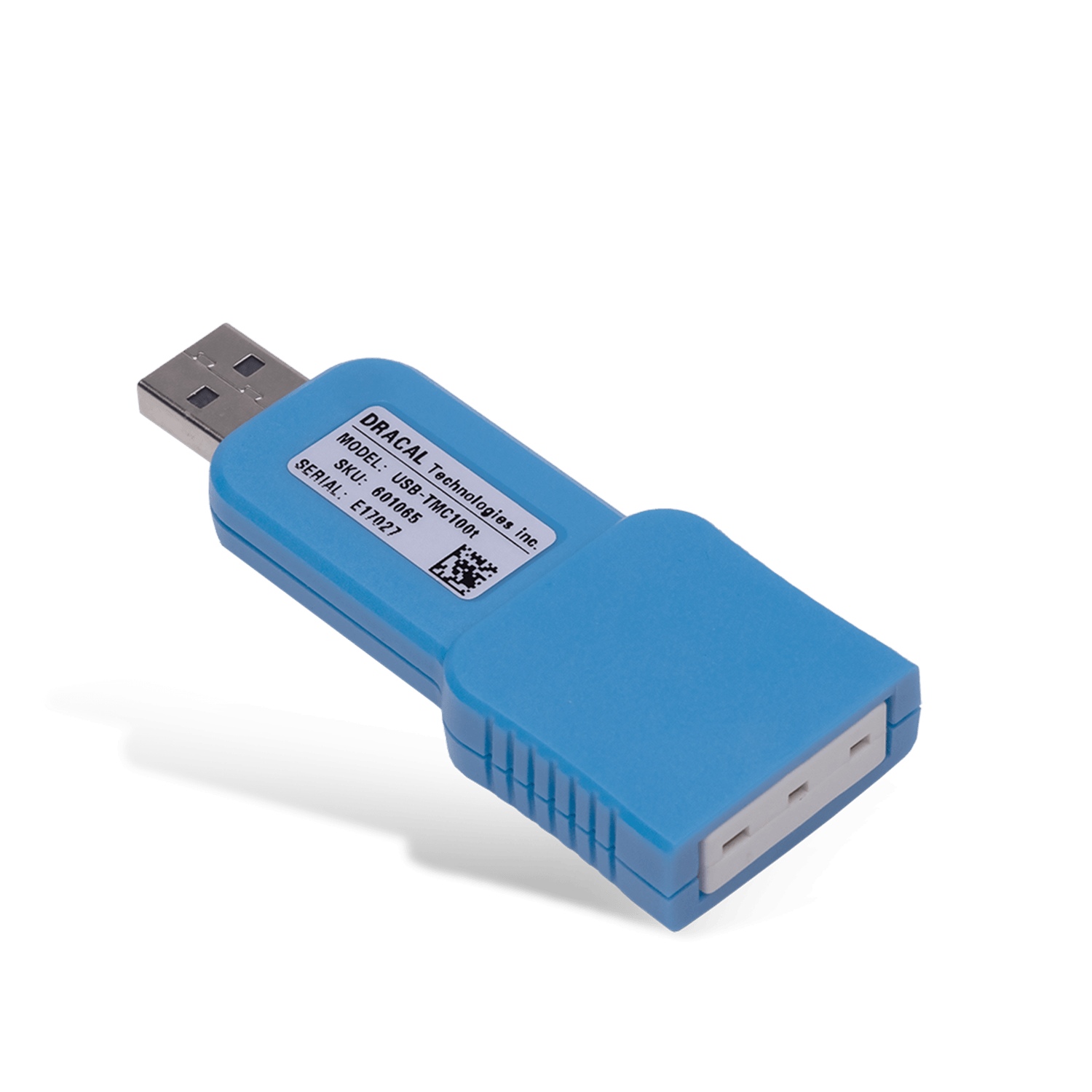

TMC100t: USB adapter for any type-T thermocouple for temperature measurement - Front view
Learn more

TMC100t

USB Adapter for Type-T Thermocouples

Typical operating range and precision
Operating range -200°C to +400°C
Accuracy ±0.5°C or better
  • Supports type-T thermocouples (2 or 3 pin)
  • Built-in cold junction compensation
  • Follows NIST ITS-90 thermocouple temperature correction table

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

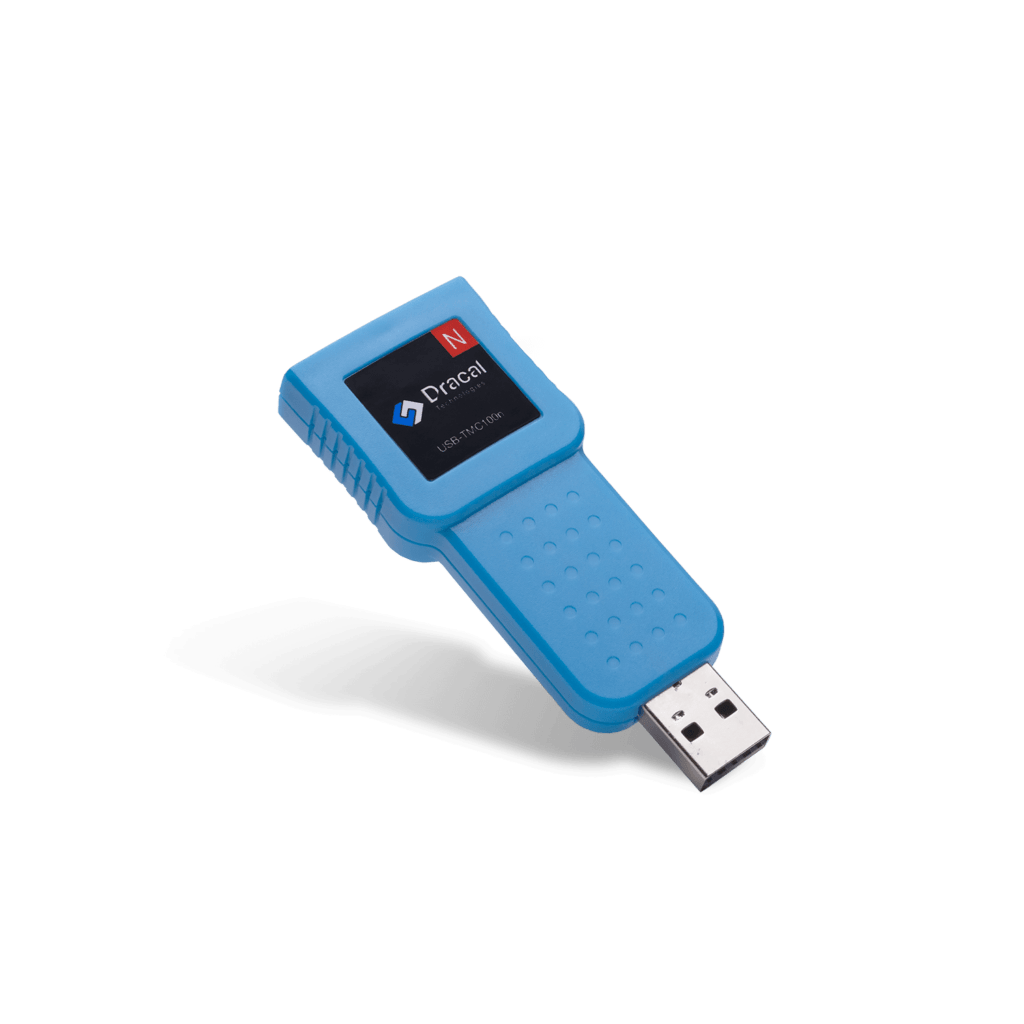

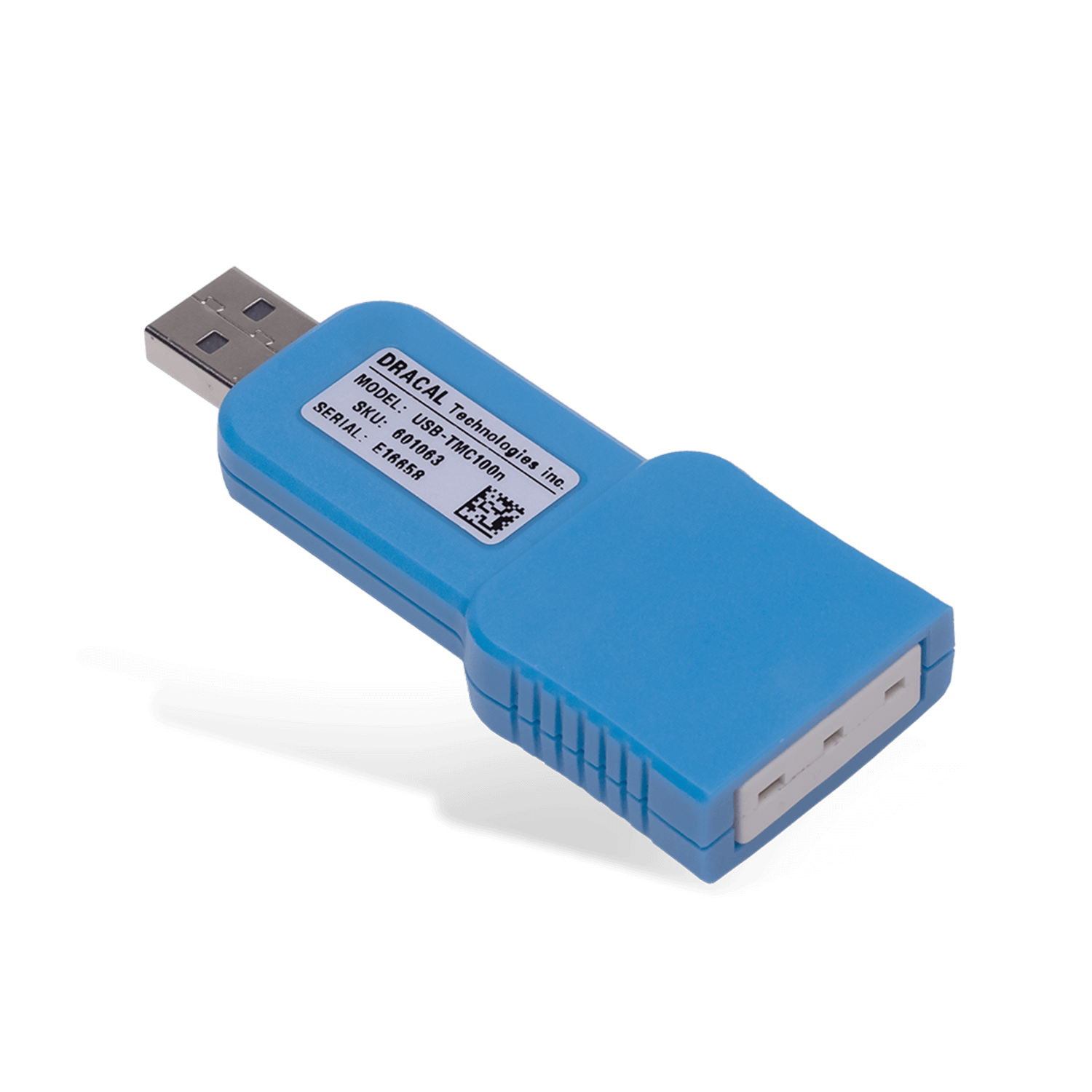

TMC100n: USB adapter for any type-N thermocouple for temperature measurement - Front view
Learn more

TMC100n

USB Adapter for Type-N Thermocouple

Typical operating range and precision
Operating range -200°C to +1300°C
Accuracy ±1.0°C or better
  • Supports type-N thermocouples (2 or 3 pin)
  • Built-in cold junction compensation
  • Follows NIST ITS-90 thermocouple temperature correction table

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

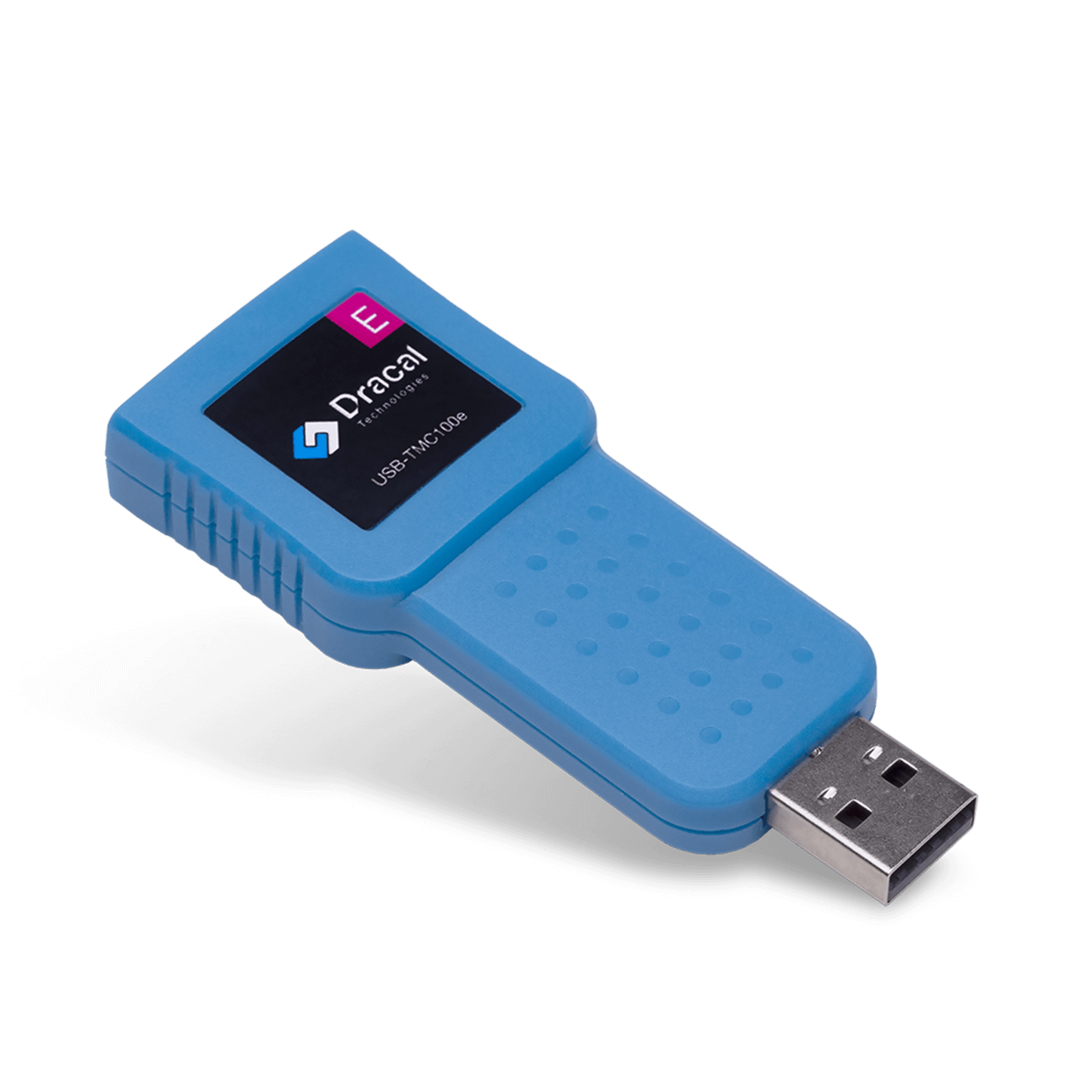

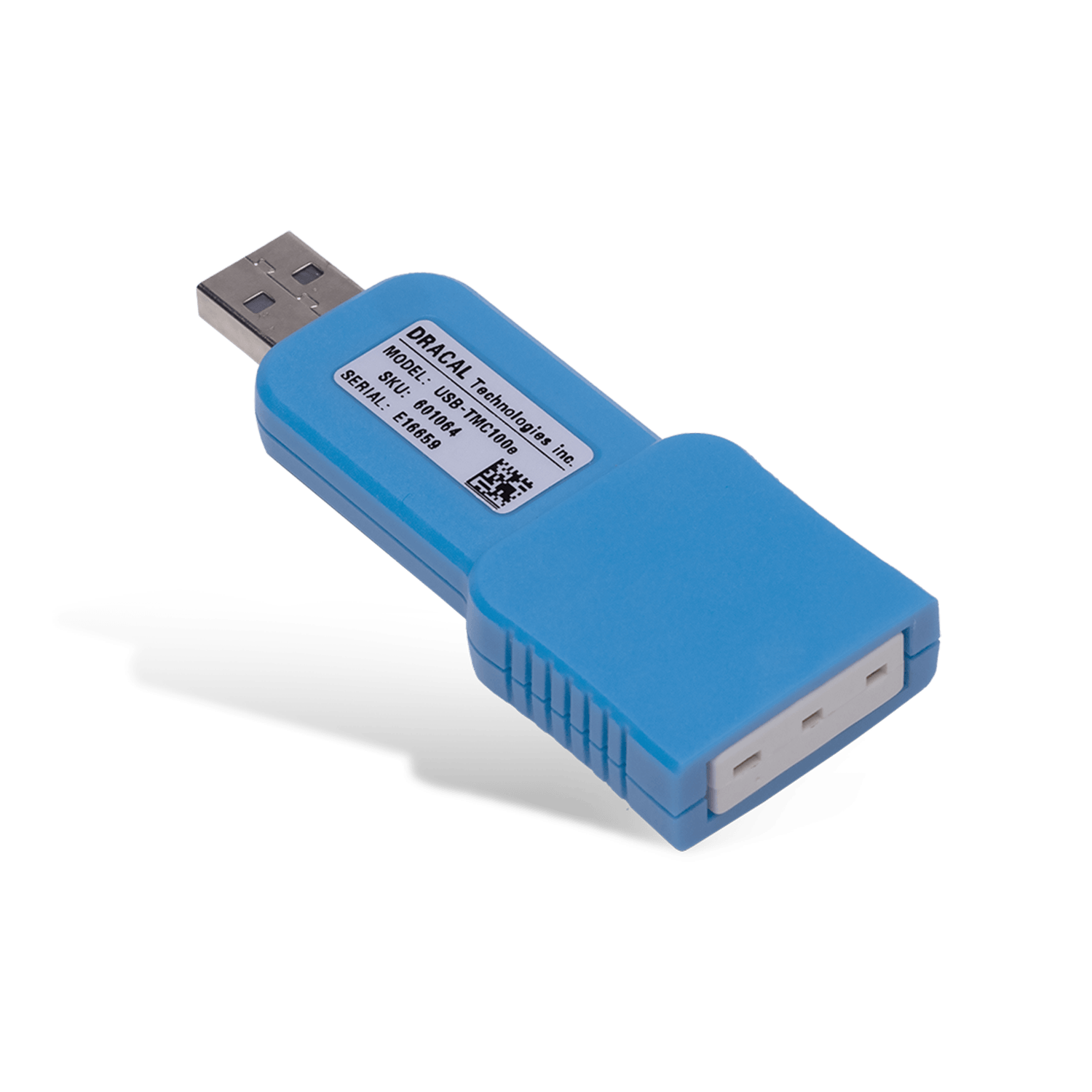

TMC100e: USB adapter for any type-E thermocouple for temperature measurement - Front view
Learn more

TMC100e

USB Adapter for Type-E Thermocouple

Typical operating range and precision
Operating range -100°C to +1000°C
Accuracy ±0.5°C or better
  • Supports type-E thermocouples (2 or 3 pin)
  • Built-in cold junction compensation
  • Follows NIST ITS-90 thermocouple temperature correction table

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

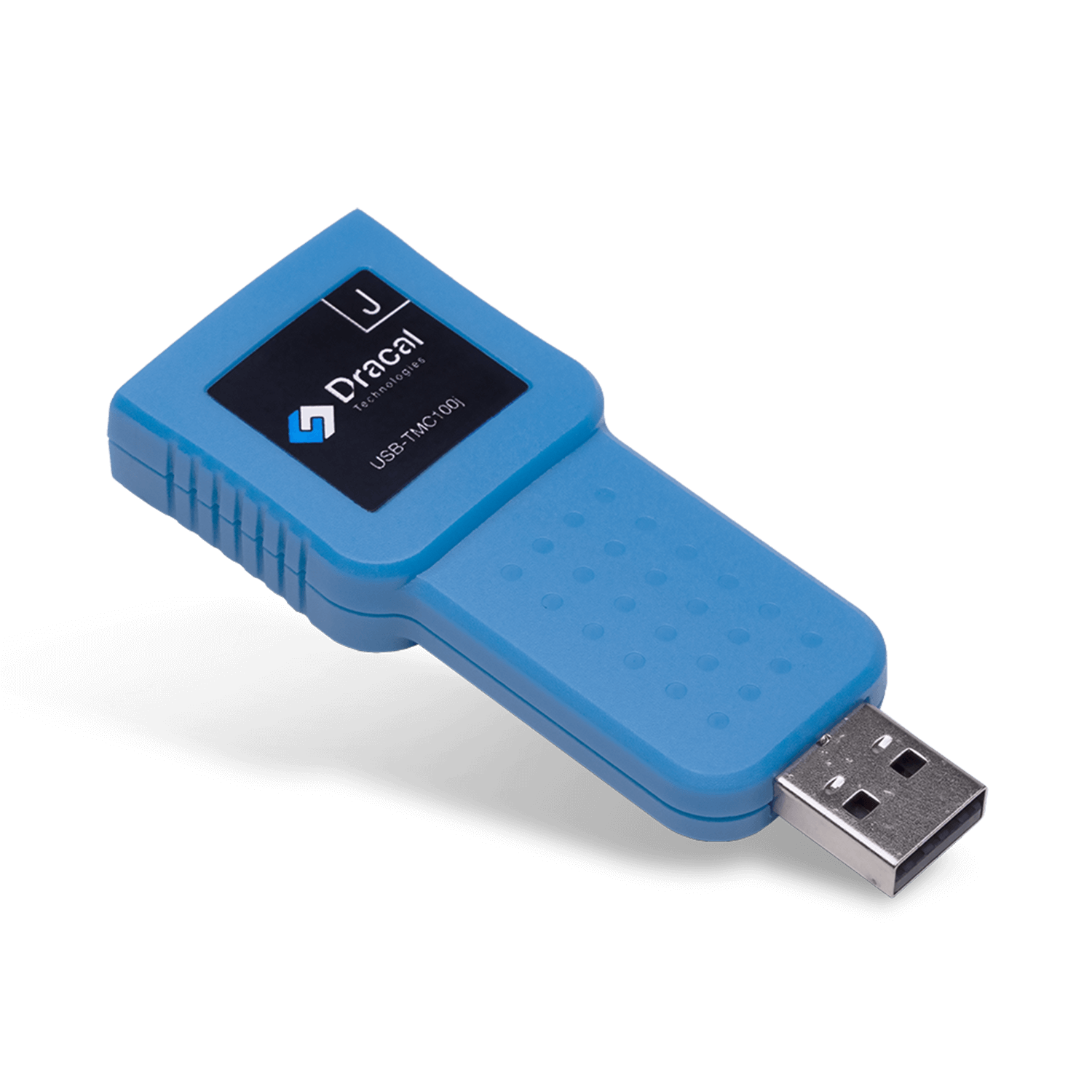

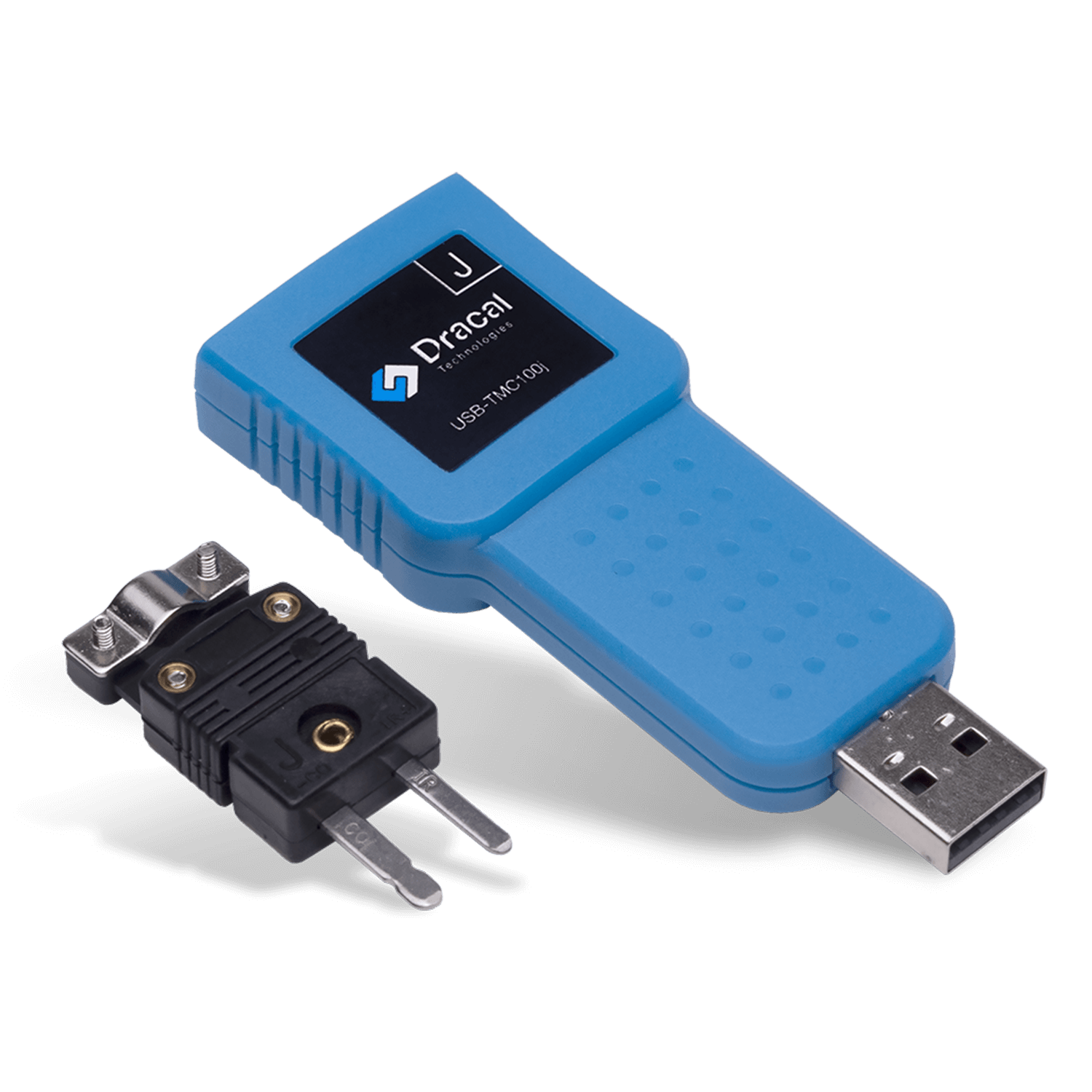

TMC100j: USB adapter for any type-J thermocouple for temperature measurement - Front view Up
Learn more

TMC100j

USB Adapter for Type-J Thermocouples
Typical operating range and precision
Operating range -100°C to 1200°C
Accuracy ±1.0°C or better
  • Supports type-J thermocouples (2 or 3 pin)
  • Built-in cold junction compensation
  • Follows NIST ITS-90 thermocouple temperature correction table

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • Traceable to the CNRC (NIST) certificates
  • RoHS 3 compliant

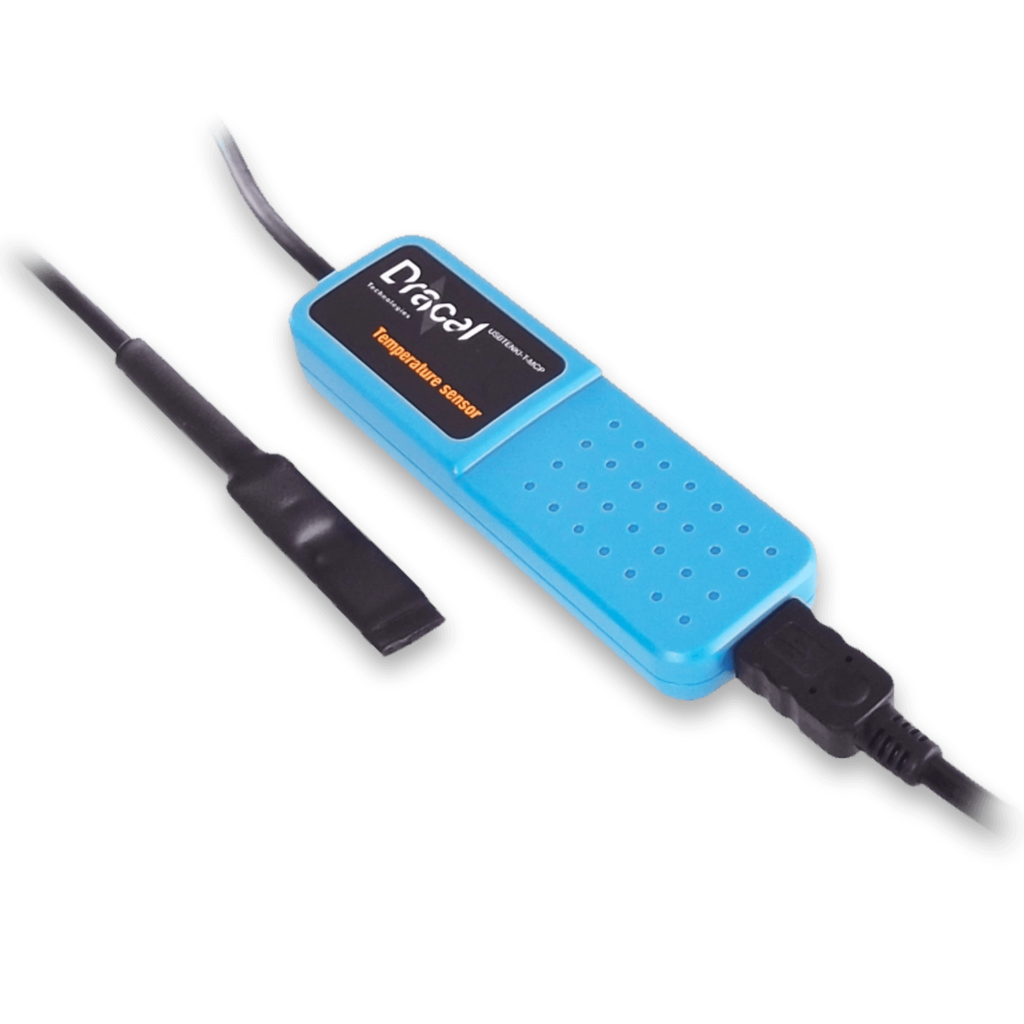

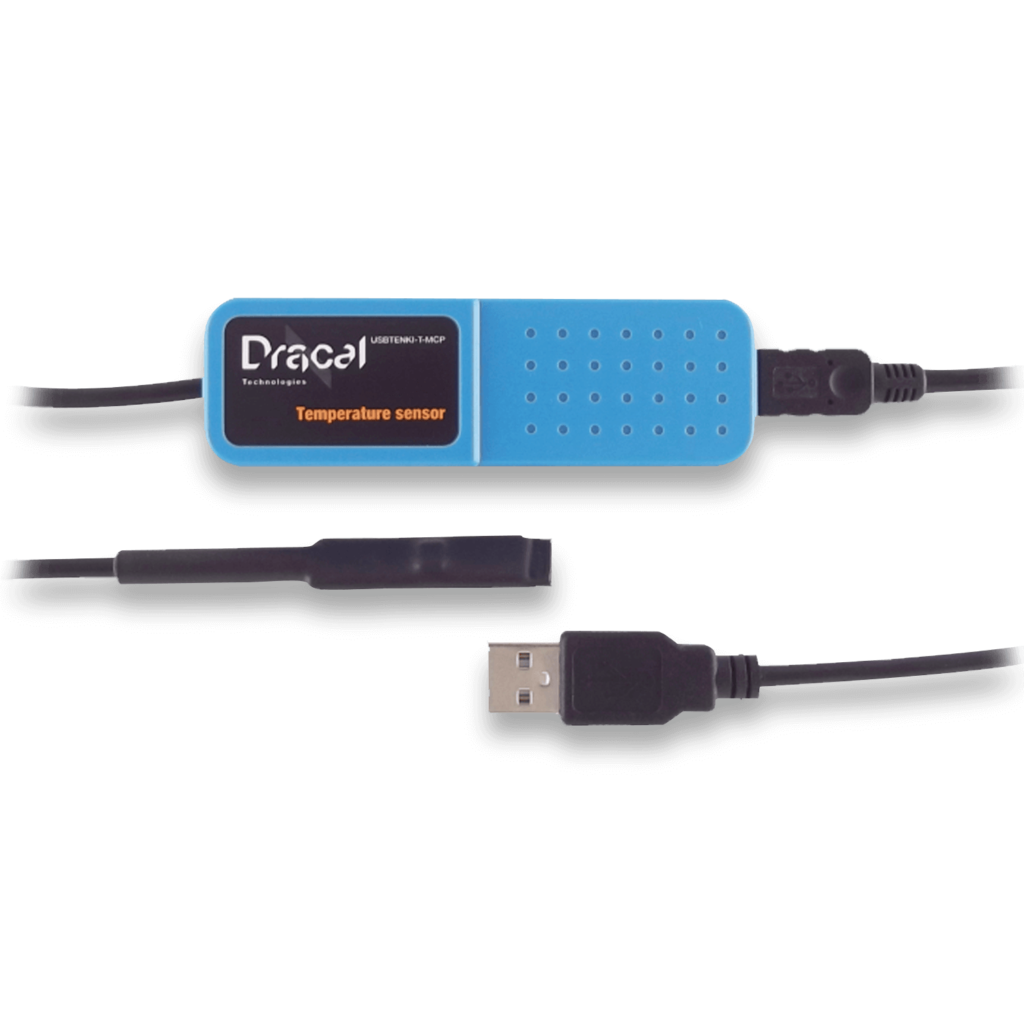

TMP125 USB Temperature Sensor, with cable
Learn more

TMP125

USB Temperature Sensor
Temperature
Operating range: -55°C[1] to +75°C
Accuracy: ±1.0°C (max.) from -10 to +75°C
±2.0°C (max.) from -55 to +75°C
Resolution: 0.5°C

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
  • RoHS 3 compliant

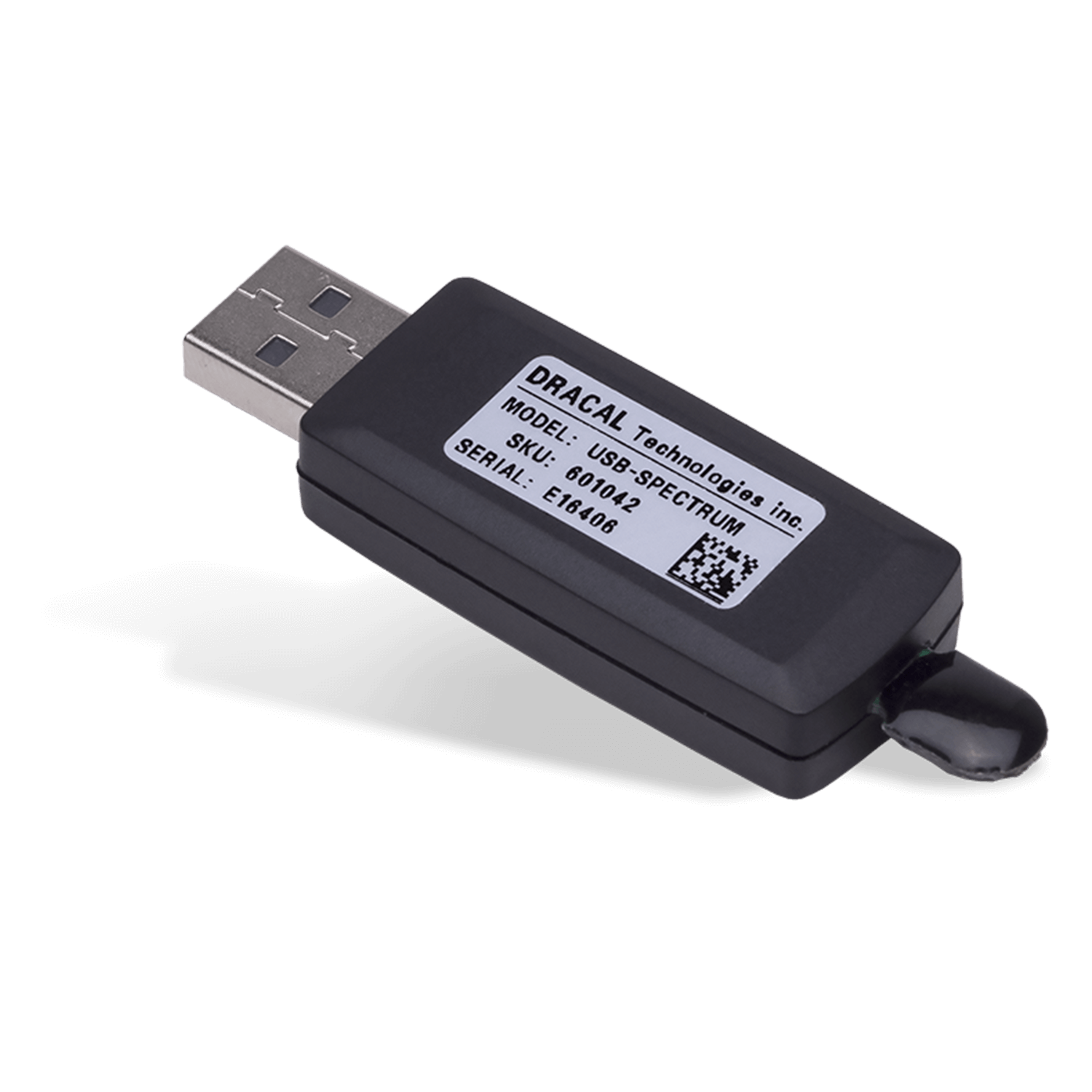

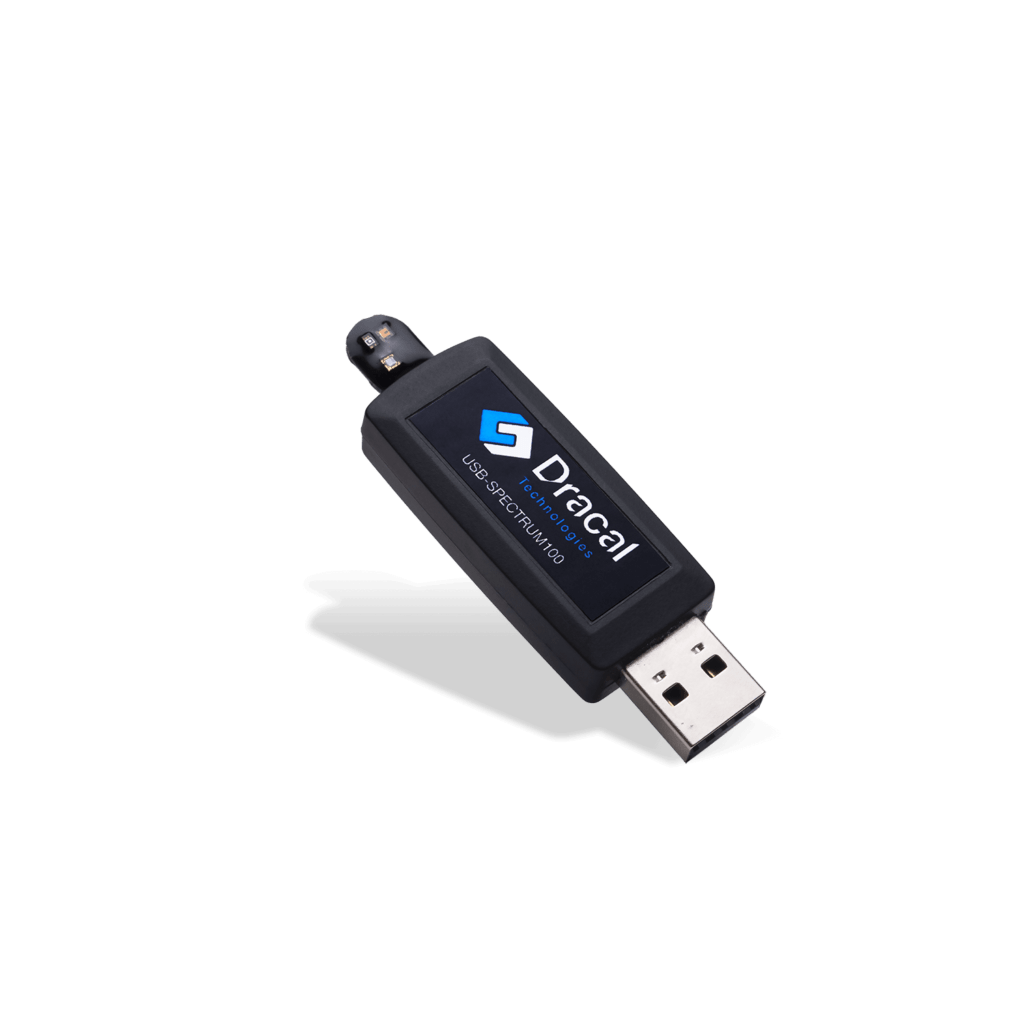

SPECTRUM100: Dracal USB connected Light sensor simultaneously detecting white light and colors, ultraviolet A and B, infrared and ambient light - Back view - Unique Serial Number SPECTRUM100: Dracal USB connected Light sensor simultaneously detecting white light and colors, ultraviolet A and B, infrared and ambient light - Front view
Learn more

SPECTRUM100

USB 5-band Sensor for UVA, UVB, IR, RGB and Ambient Light

Ambient and white light
Range    0.0072 to 120,000 lx
Resolution   0.0036 lx per step

Colour and Infrared light
Range     0 to 20,000 lx
Resolution   Up to 20 bits

Ultraviolet A and B light
UVA responsivity  0.93 counts/uW/cm2
UVB responsivity  2.1 counts/uW/cm2
Resolution     16 bits (65,536 counts)

Additional information

  • Free data acquisition toolkit

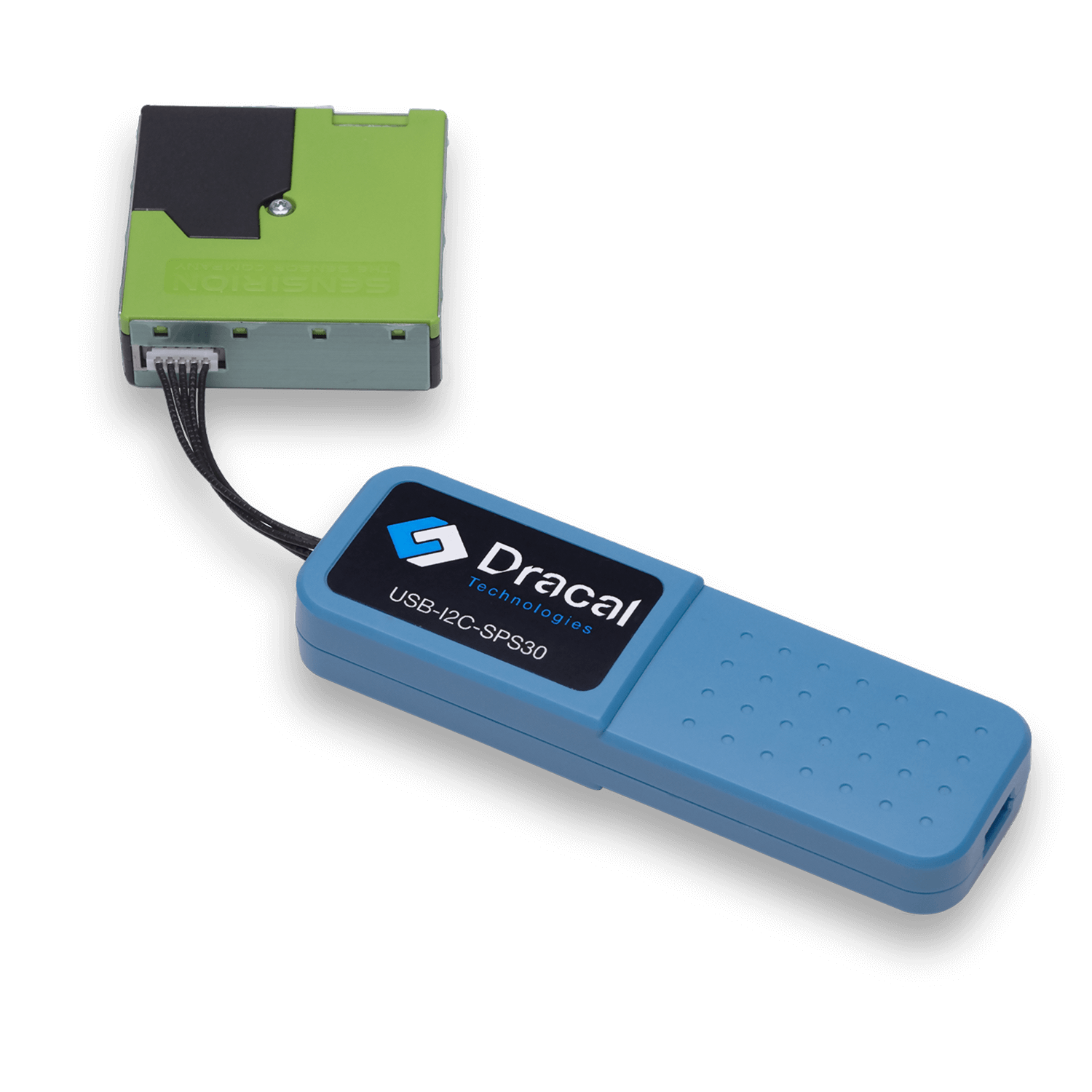

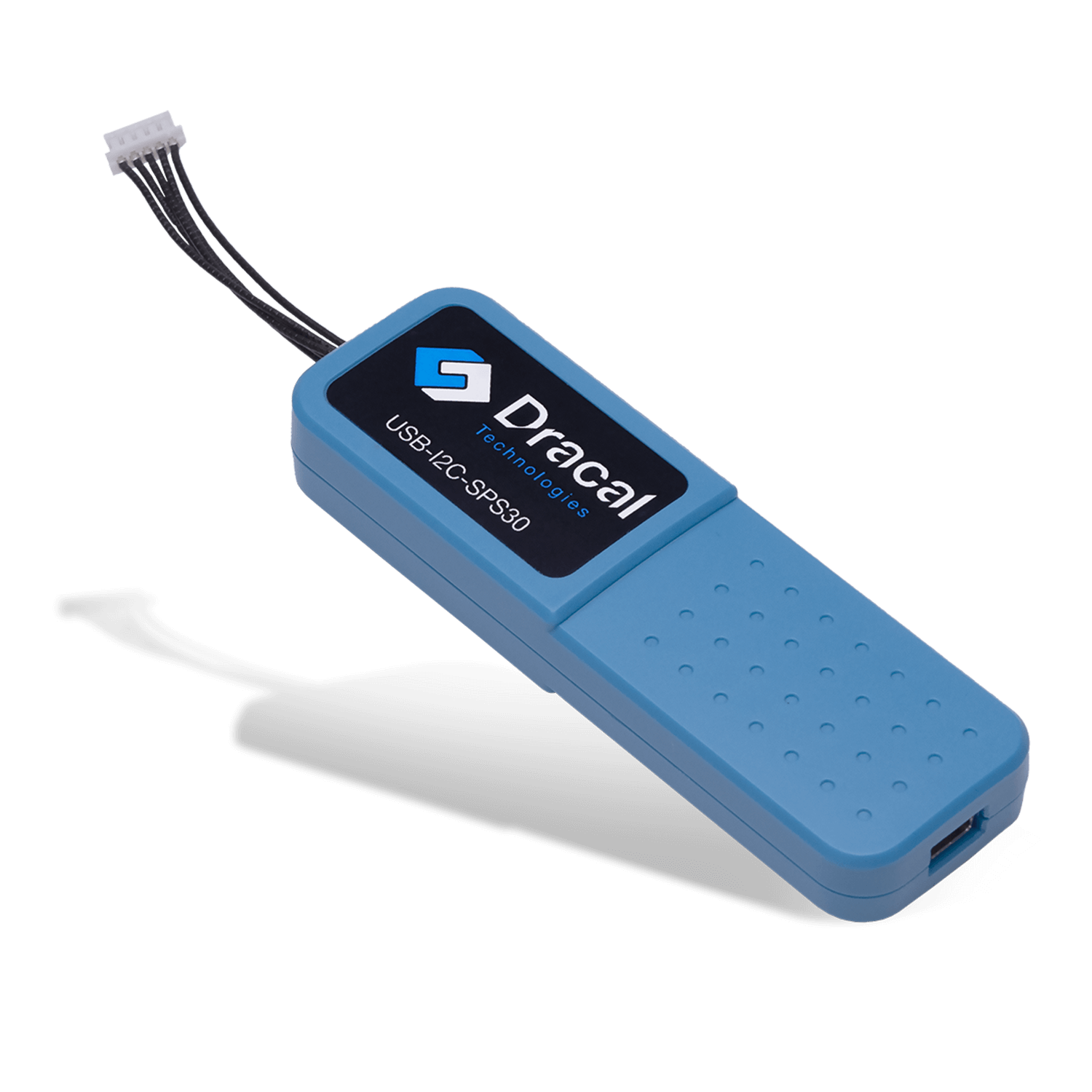

USB-I2C-SPS30 - Dracal USB-connected adapter for Sensirion SPS30 particulate matter sensor - With SPS30 Sensirion Sensor USB-I2C-SPS30 - Dracal USB-connected adapter for Sensirion SPS30 particulate matter sensor - Front View
Learn more

USB-I2C-SPS30

USB Adapter for SPS30 Particulate Matter Sensor
General specifications

Communication: I2C to USB
I2C speed: 400 kHz
Operating temperature range: 0°C to 70°C
Operating relative humidity range (non-condensing): 10 to 90 %RH

Additional information

  • Free data acquisition toolkit

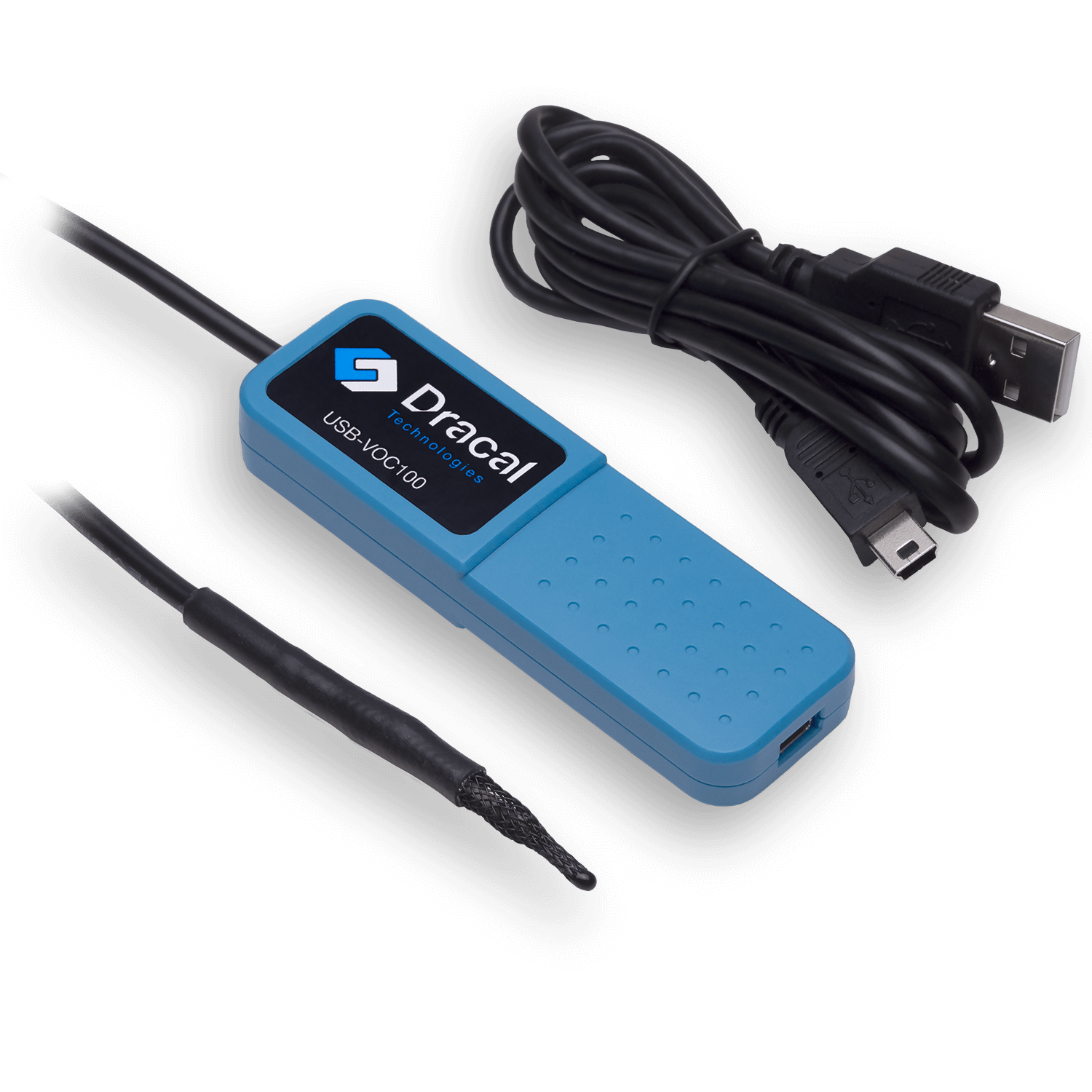

VOC100 - Dracal USB-connected as sensor volatile organic compound (VOC), temperature and relative humidity - Back view - Unique Serial Number VOC100 - Dracal USB-connected as sensor volatile organic compound (VOC), temperature and relative humidity - Front view with USB plug
Learn more

VOC100

USB VOC, Temperature and Relative Humidity Sensor
Typical operating range and precision
Volatile Organic Compounds 0 to 32,768 ppb Qualitative
Temperature -40°C to 70°C ±0.3°C
Relative humidity 10 %RH to 95 %RH ±2.0 %RH

Additional information

  • Free data acquisition toolkit
  • 3-point user calibration mechanism
  • VCP mode
Learn more

USB-HUB10S

10-port Industrial Grade USB HUB

  • 10 ports for sensors
  • Black sturdy metal housing
  • External power supply for trouble-free operation
  • Compatible with all USB-enabled operating systems
An example of the Sources tab in DracalView Graph made in DracalView using USB temperature sensors
Learn more

DracalView

Free data logging and data integration toolkit for our USB sensors
Typical operating range and precision
CONN-M8A-FRP80: 4-pin female connector.
Learn more

CONN-M8A-FRP80

M8 A-code 4-pin Female Front-Mount Connector
Connector: M8, A-code female, 4-pin
M8 protection rating: IP67
Operating temperature: -10°C to 80°C

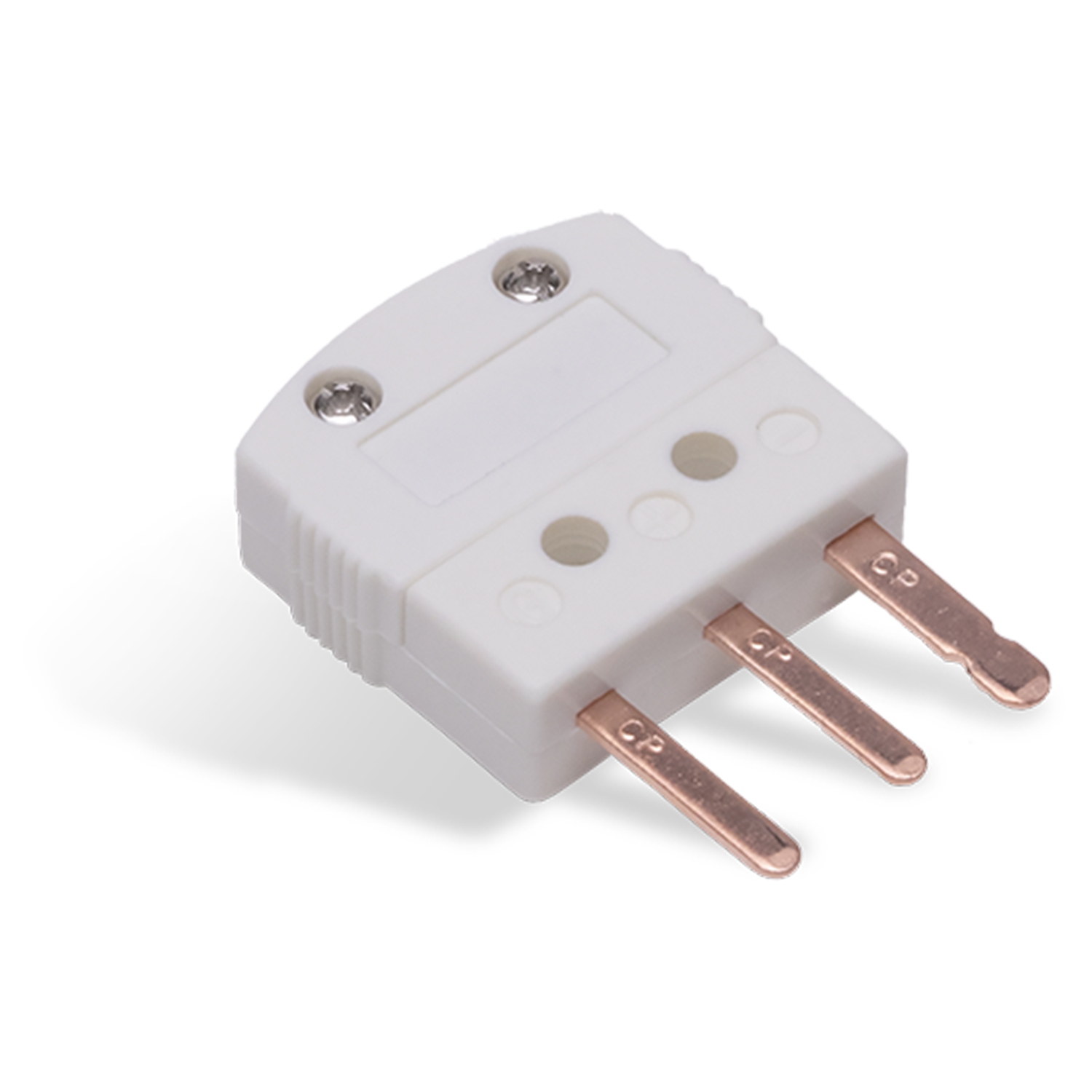

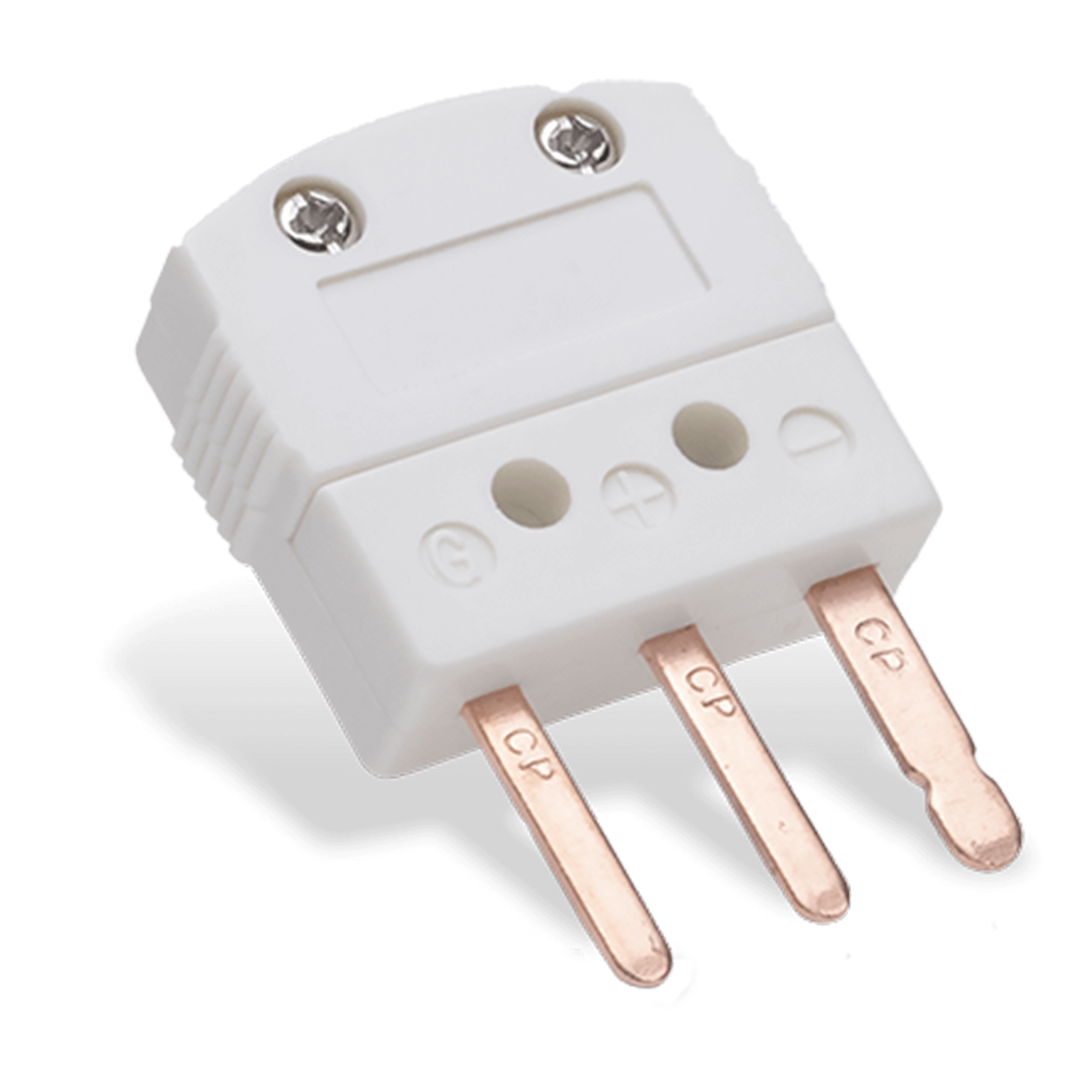

Dracal_Connector for USB adapter_for any RTD Pt100 probe Dracal_Connector for USB adapter_for any RTD Pt100 probe
Learn more

CONN-RTD-3PM

3-pin Miniature Connector for 2/3-wire RTD

Contact material: Copper (CU)
Polarized: Yes
Maximum temperature: Up to 180°C
Dracal Universal Connector for USB adapter for any type-N thermocouple for temperature measurement
Learn more

Miniature male thermocouple connector

Flat 2-pin miniature connectors for types K,J,N,T and E thermocouples.

Specifications
Contact type Flat, compensated
Wiring style Screw terminals, accepts wires up to 0.6 mm (AWG 22)
Polarized Yes
Maximum operating temperature Up to 180°C

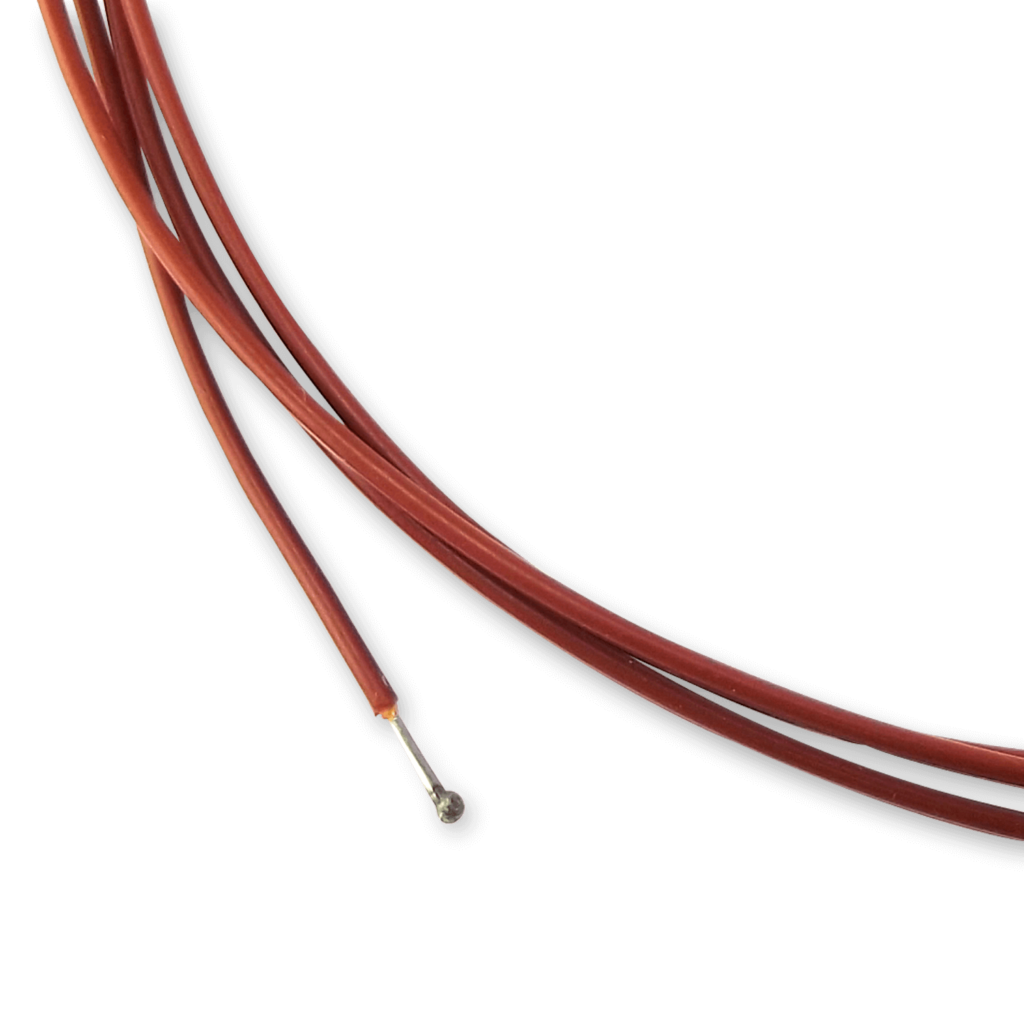

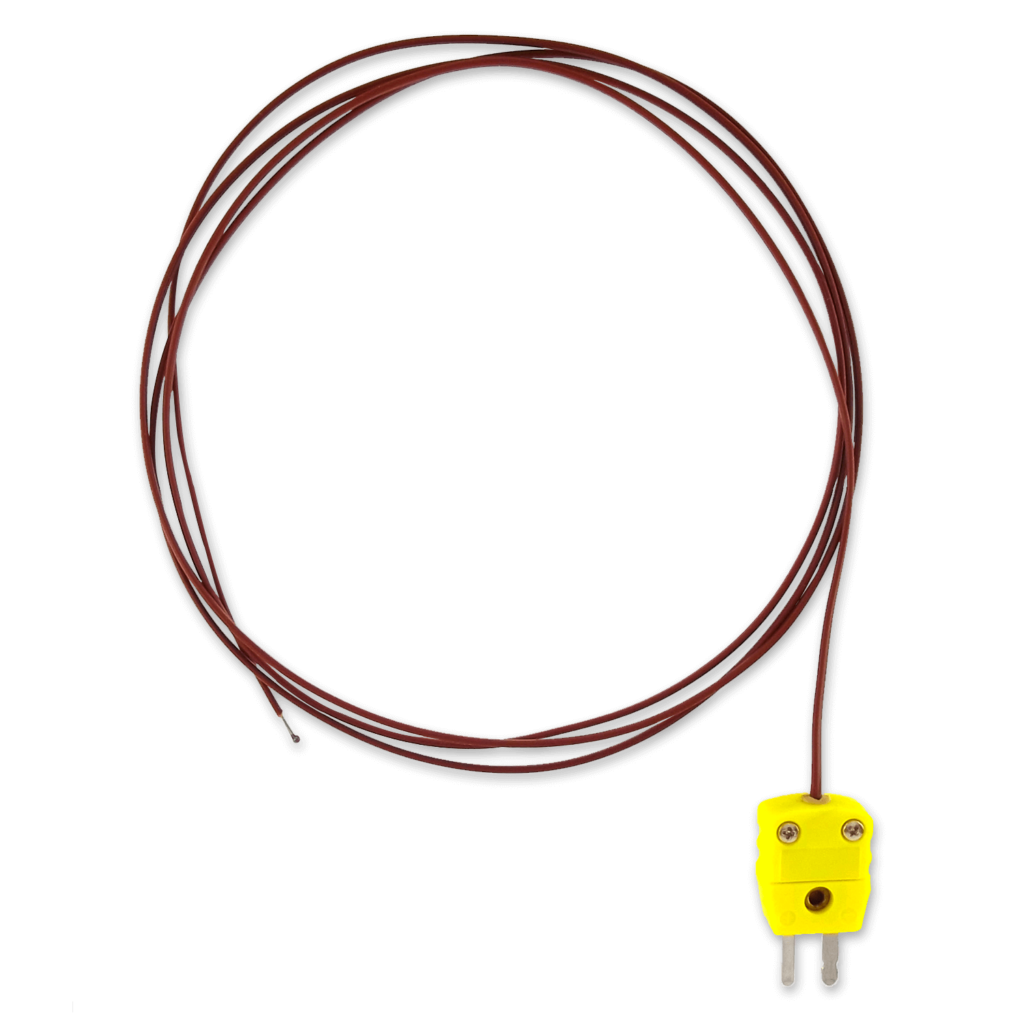

Dracal type K thermocouple probe exposed end for fast response temperature measurement
Learn more

Ready-made pre-wired thermocouple probe

Pre-wired Type K,J,N,T,E Thermocouple Probes

Response time: ≤ 1 second
Length: 1.5 m (5 ft) 3 m (10 ft)
Insulation: Teflon
Type: Bare welded point
Temperature range Type dependent (See Charasteristics)

Compatible with Dracal Technologies TMC series thermocouple adapters

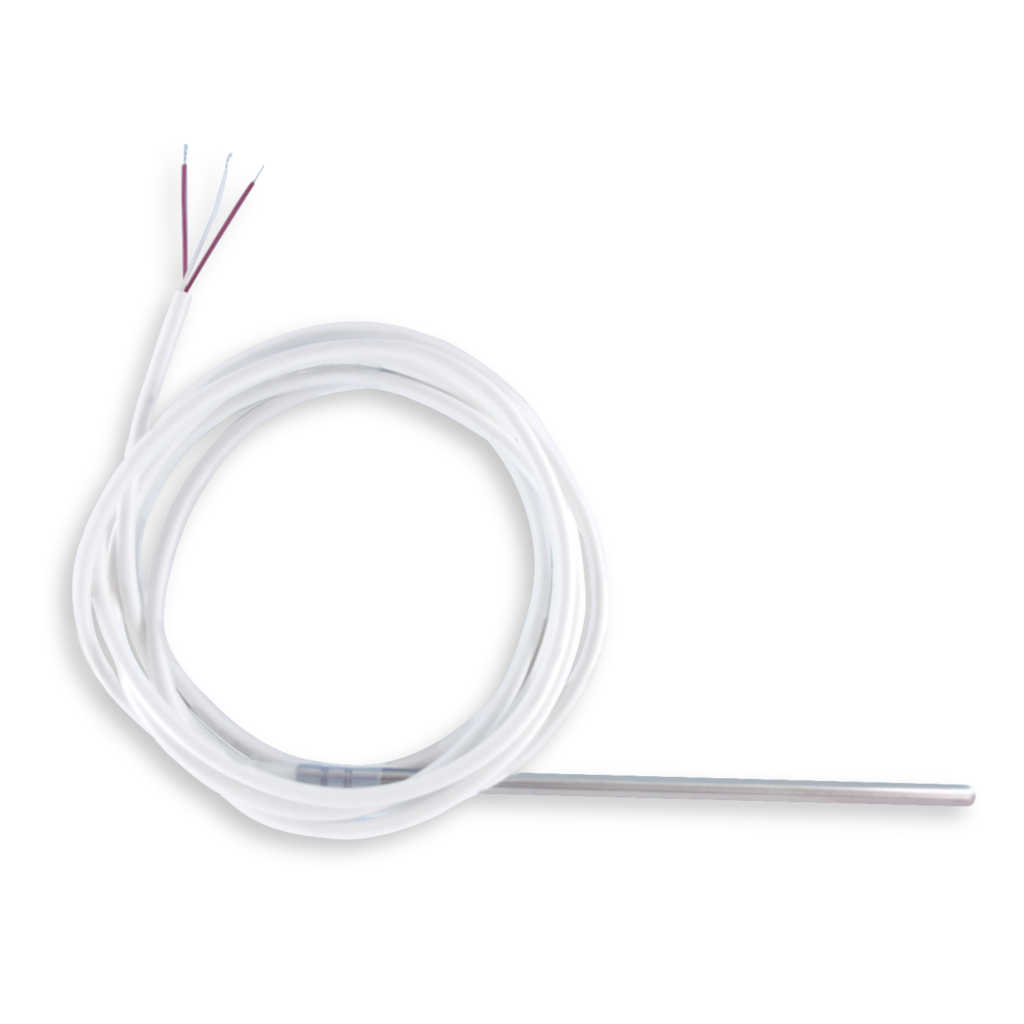

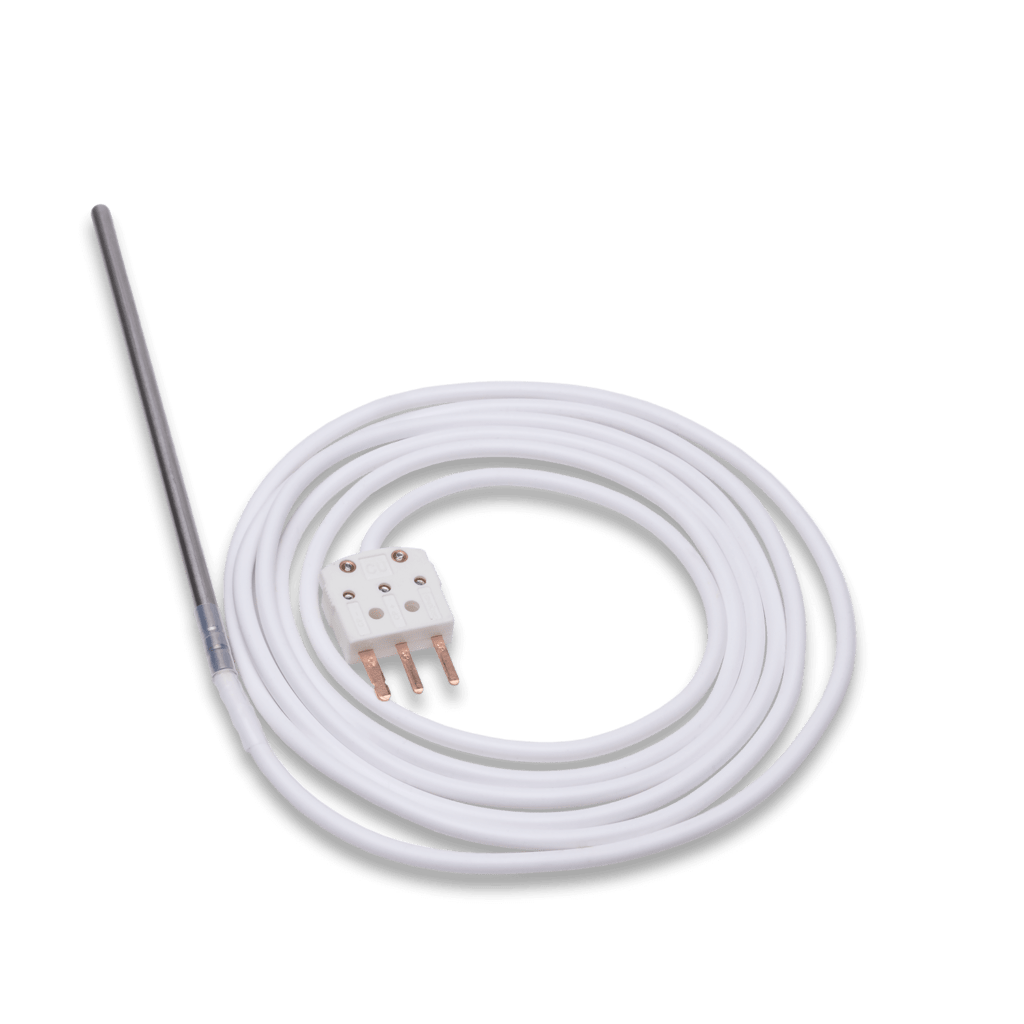

Pt-100 RTD probe for temperature measurement with double proofing Pt100 RTD probe for temperature measurement
Learn more

RTD-PT100-SIL

RTD Pt100 Precision Class 1/3 DIN Sensor, with silicone cable
Temperature operating range: -200°C to 200°C
Accuracy At 0°C: ±0.10°C
From -25°C to +25°C: ±0.15°C
From -50°C to +50°C: ±0.18°C
From -100°C to +100°C: ±0.27°C
From -200°C to +200°C: ±0.43°C
Material: Stainless steel probe
Silicon cable

Compatible with our RTD converters

RoHS 3 compliant
CBL-USB-A-MINIB: A to mini B USB cable (15 or 100 cm).
Learn more

CBL-USB-A-MINIB

USB Cable A to Mini B

Connection type: USB A to mini B
Available length: 1 m (3 ft) 15 cm (6 in)
Learn more

CBL-USB-AB1

USB Cable 2.0 A-B

Connection type: USB A-B
Length: 1 m (3 ft)
CBL-USB-AMAF-15: Short USB extension for space-constrained applications.
Learn more

CBL-USB-AMAF-15

Short USB Cable Extension: USB A Female to USB A Male

Type: USB 2.0
Connectors: A male to A female
Length: 15 cm (6 in)

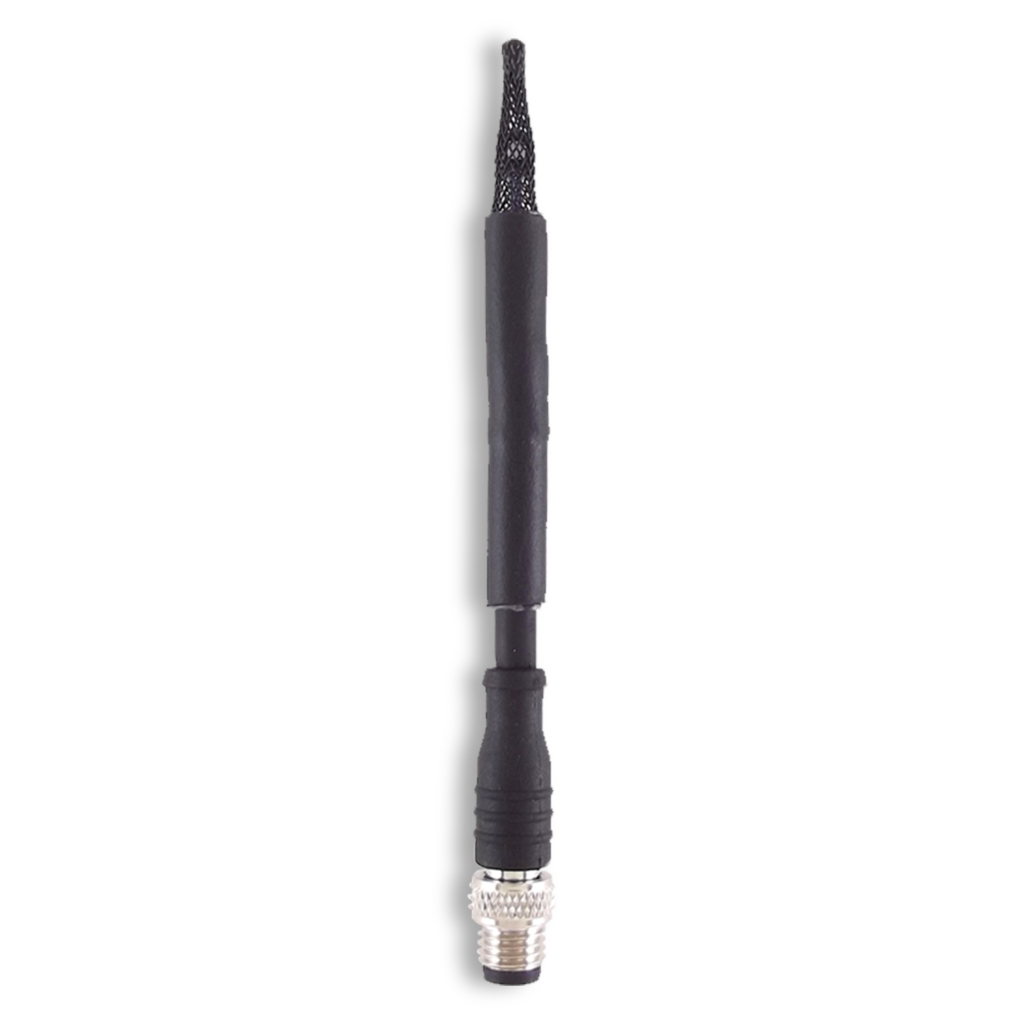

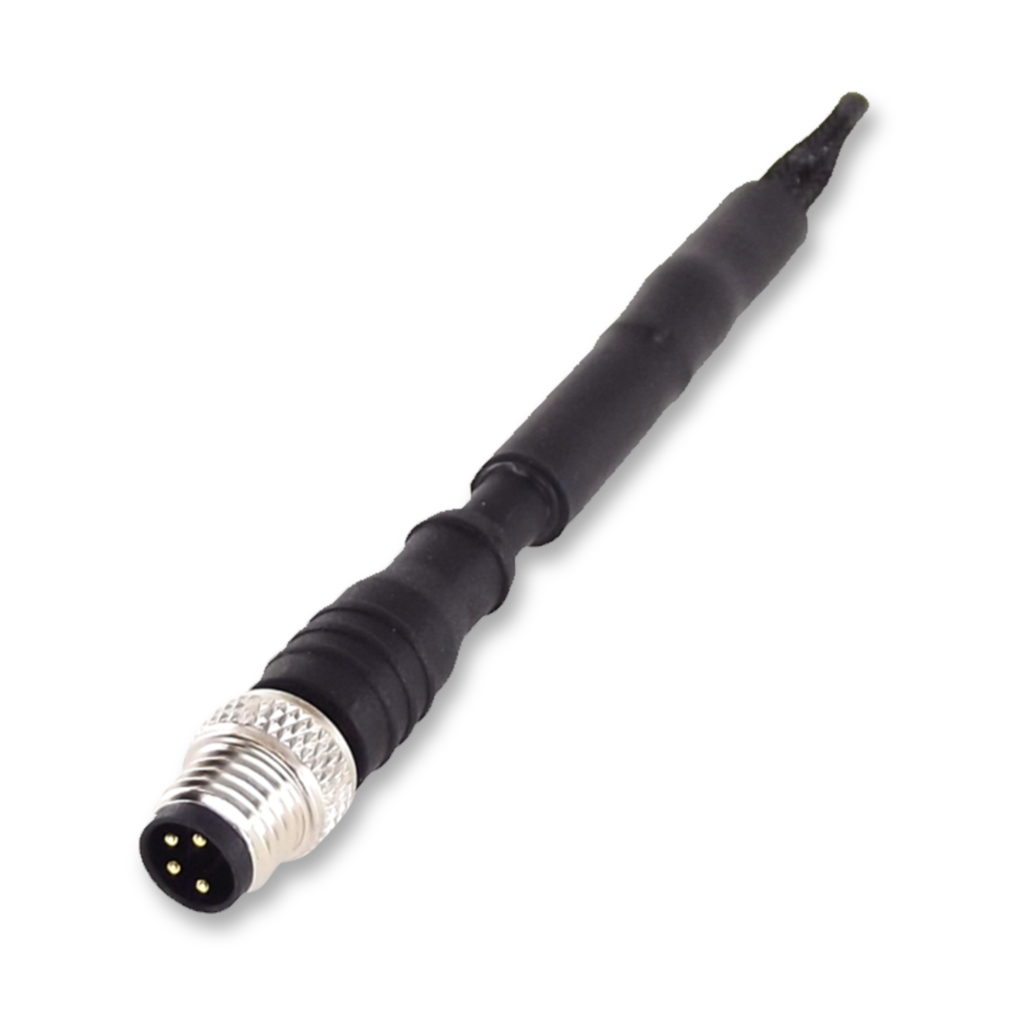

Dracal temperature and relative humidity probe with an M8 connector - Connector view
Learn more

I2C-M8-TRH320

I2C Temperature and Humidity Probe with an M8 Connector (12, 100 or 180 cm)

Typical operating range and precision
Temperature -40°C to 70°C ±0.3°C
Relative humidity 0 %RH to 100 %RH ±2.0 %RH

Available lengths: 12, 100 cm and 180 cm

Protection

  • 2-layer filter
  • Efficiency: >99.99% of particles as small as 200 nm

Additional information

  • Compatible with our DXC220 CO2 sensor

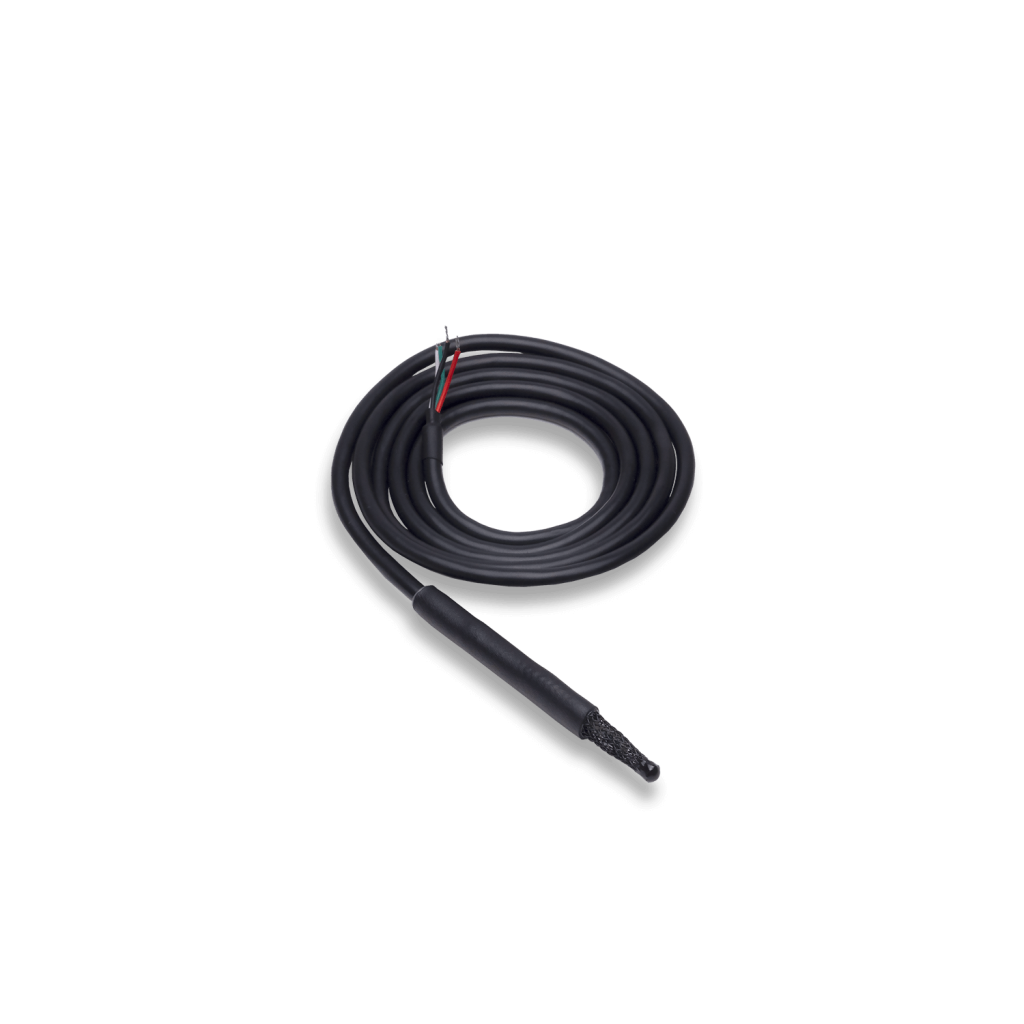

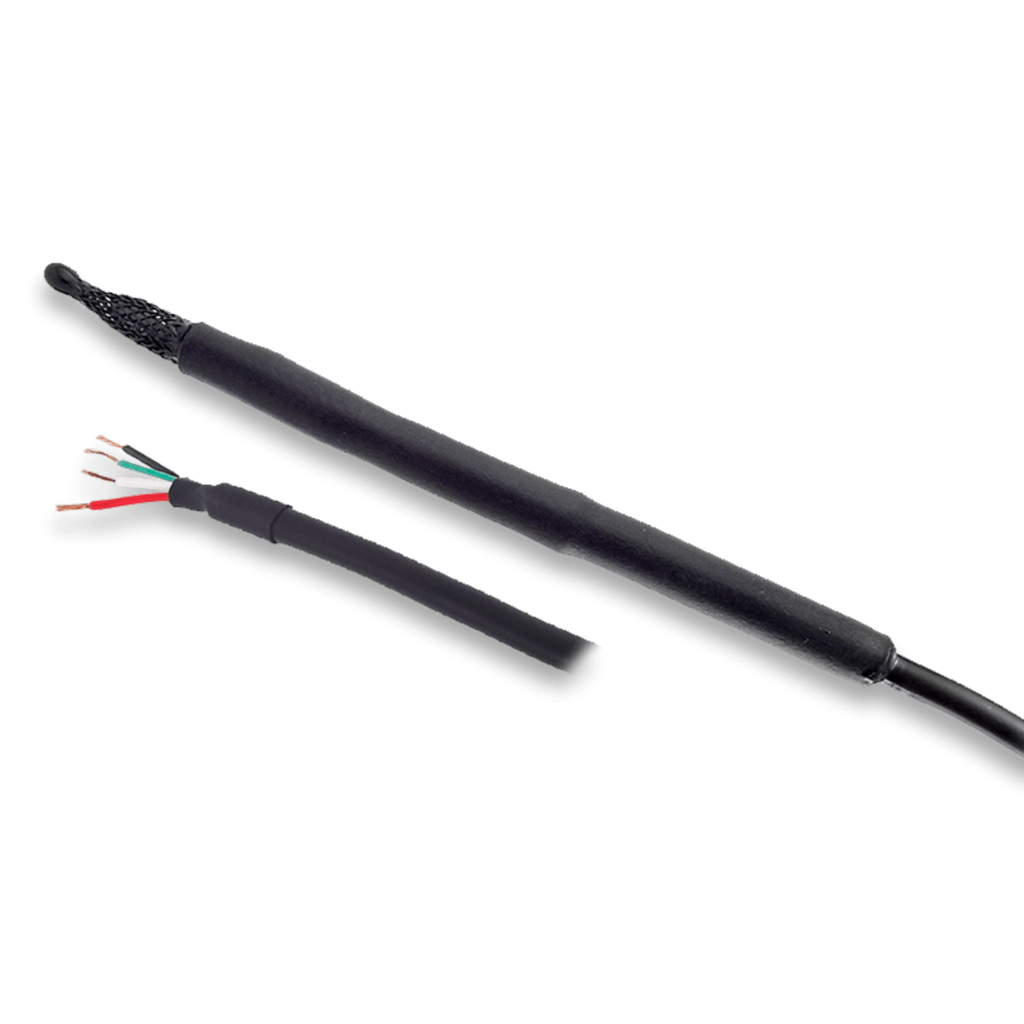

Learn more

I2C-TRH Series

Pre-wired I2C Temperature and Humidity Probe for OEM Applications

Typical operating range and precision
Temperature -40°C to 70°C ±0.3°C
Relative humidity 0 %RH to 100 %RH

Length: 100 cm, 180 cm

Protection

  • 2-layer filter
  • Efficiency: >99.99% of particles as small as 200 nm
